Smart Humidity Switch 16A | Energy Monitor + 433Mhz | WiFi Tuya Smart Life

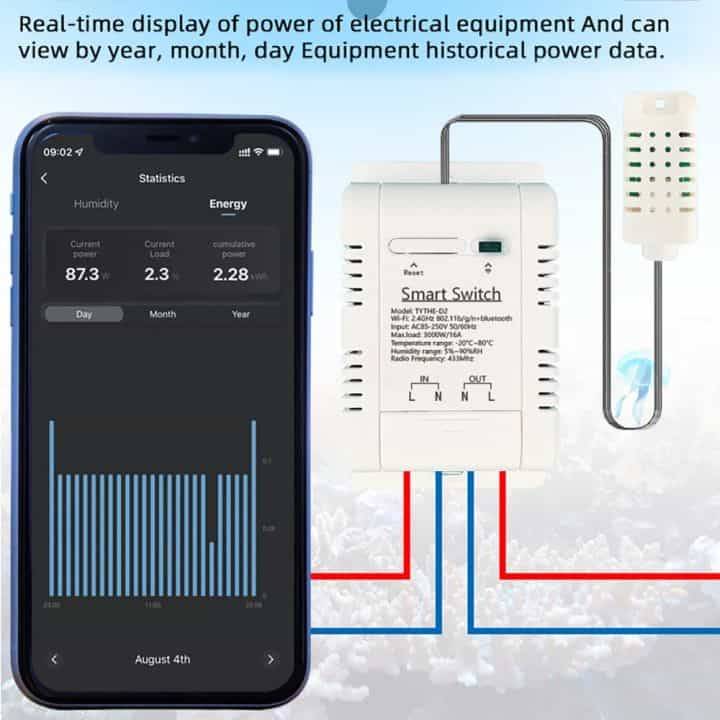

This Smart WiFi Humidity Monitor and Switch 16A 3Kw. Includes energy / power consumption monitor and remote control 433Mhz feature.

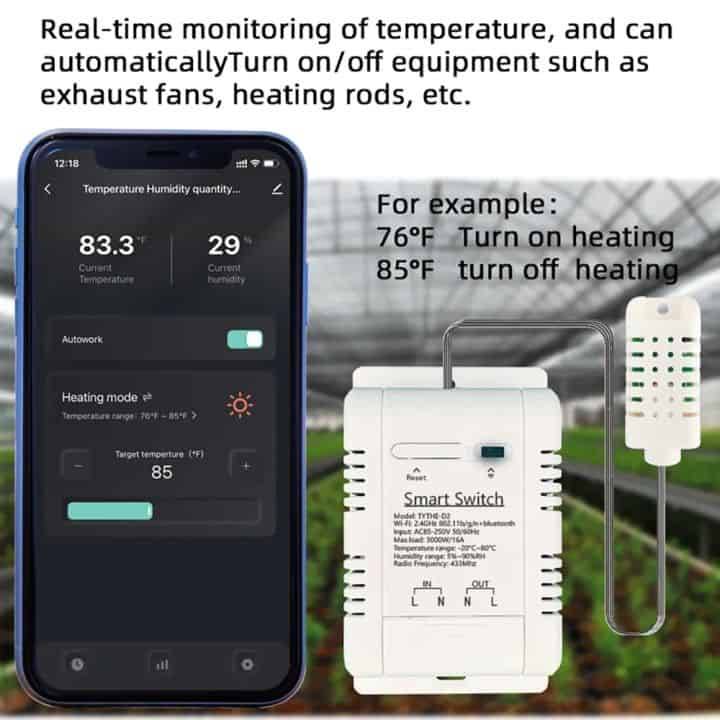

Smart Switch any device ON or OFF based on the high/low temperature or humidity readings. Perfect for Grow Tents and any environment where full automated control required.

Based on either of the two readings you can automated certain functions like switching ON and OFF such as Fans, Irrigation mist sprinkler systems when values go above or below certain pre-defined values. Optional: you can also have an additional manual control via a 433Mhz remote control.

Simply, 'Wire, Configure and Play'.

Other Temperature / Humidity products you may require:

• Smart Humidity Monitor + 16A Switch + 433Mhz remote control option [click here]
• Smart Ambient Air Temperature Monitor + 16A Switch + 433Mhz remote control option [click here]
• Smart Water Temperature Monitor + 16A Switch + 433Mhz remote control option [click here]

Typical Applications:

• Monitor humidity and automate certain ON/OFF actions such as extractor fans, mist irrigation etc.

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.

Great way to make any appliance or device, 'Smart'.

Typical Applications & Uses

Suitable for farms, small holdings, larger homes or any area where your WiFi range is limited. irrigation, gate or access control, alarm systems. The switch can be connected to a contactor switch relay (we stock 25A single and 3 phase) to switch even larger currents or even 3 phase pumps etc.

• Mount the switch in a plastic waterproof housing [click here] is preferred. (a steel cabinet for example will reduce the range)
• Your standard garage door and gate remotes are most likely 'rolling code' remotes and are NOT compatible with this switch.

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.

'HOW TO' WIFI SMART YOUTUBE VIDEO [click here] - connect to your cell phone

Product Features

• Small and Compact design - high current. Wire, Configure and Play.
• Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
• Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
• All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
• The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of our range WIFI Extender products [click here]

Enclosures / Housing

• Need an Enclosure, Housing or Junction Box for this switch
• Note: Only enclosures marked 'medium' are suitable for use with this switch [click here]
• If required, remove the PCB from outer casing of the switch for a smaller footprint

Specifications

• Electrical Input Voltage: 85-250V AC
• Switch Power Rating: 20A max, 4400W
• Humidity Range: 5%RH to 90%RH
• Display Resolution: 1%RH
• Product dimensions96 x 45 x 31mm
• Material: White ABS (Fire-retardant)
• Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
• Operating Temperature: -20C to +70C

How to pair a 433Mhz Remote Control

• Press and hold the button on the switch till the lights flashes blue (+/-3 seconds)
• Now press the required button on the remote - unit should now be paired.

What's in the Box?

1x Smart Humidity Switch 16A
1x Instruction Manual

FAQ's
