Please note: This inverter requires 2 x 12V batteries or a single 24V Lithium battery (Sold separately)

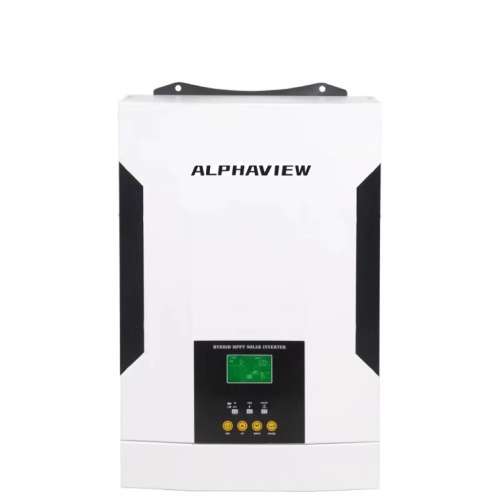

Hybrid Solar Inverter

Features:

- Pure sine wave solar inverter

- Configurable input voltage range for home appliances and personal computers via LCD setting

- Configurable battery charging current based on applications via LCD setting

- Configurable AC/Solar Charger priority via LCD setting

- Compatible to mains voltage or generator power

- Auto restart while AC is recovering

- Overload / Over temperature / short circuit protection

- Smart battery charger design for optimize battery performance

- Cold function start

- WIFI available for IOS and android

- Built-In 80A MPPT solar charge

- Built-In anti-dusk kit for the harsh environment(optional)

- Compatible with lithium-ion battery

- High PV input voltage range (90V~450VDC)

- Intelligent fan speed adjustment

Additional Specifications:

- Model: 3.2KVA /24V

- DC Input: 24VDC

- AC Input: 230VAC, 50Hz, 21.3A Max

- AC Output: 230VAC, 50Hz, 3000W

- Wire Size: 1 x 6AWG

- Cable: 14mm

- Torque value(max): 2Nm

- Rated Power: 3200VA/3000W

Battery:

- Battery Voltage 24VDC

- Floating Charge Voltage: 27VDC

- Overcharge Protection: 31VDC

Solar Charger & AC Charger:

Maximum PV Array Open Circuit Voltage 450V DC

Maximum PV Array Power: 3000W

Maximum Charging Current: 115A

What's in the box

1 x SolarFirst -3KVA 24v Pure Sine Hybrid Inverter - 115A MPPT
