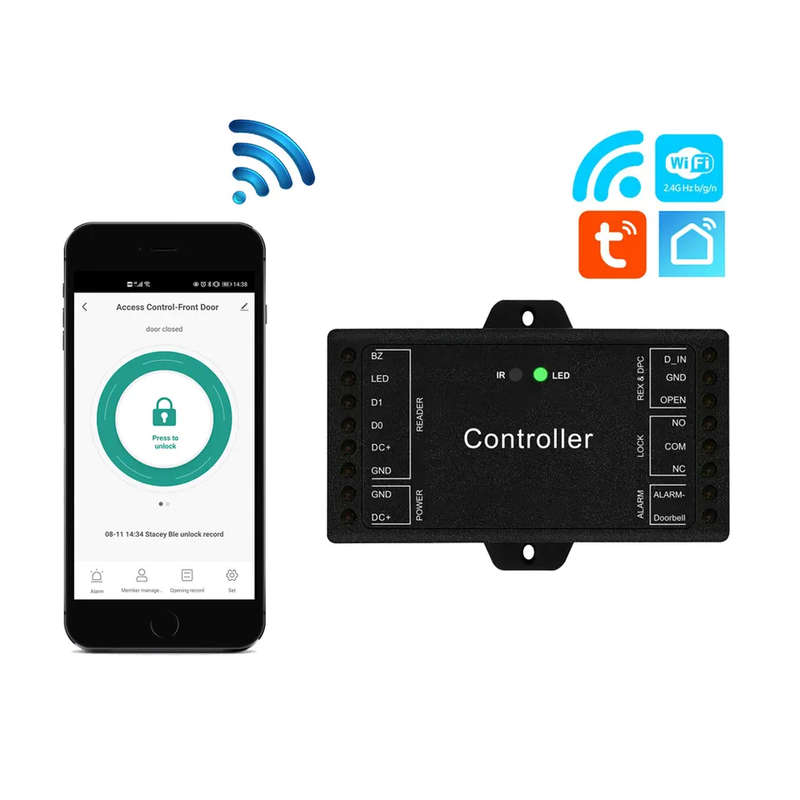

Our WIFI 12V Access Controller for Wiegand Keypad Reader can be used for Access Control Doors, Gate motors, Garage Motor Etc, and can unlock from Mobile smartphones via the Tuya/ Smart Life App from anywhere in the world. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.
This device is for Single Door / Gate / Garage use and can be used as a Standalone access controller or Wiegand output Reader.
All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Features;

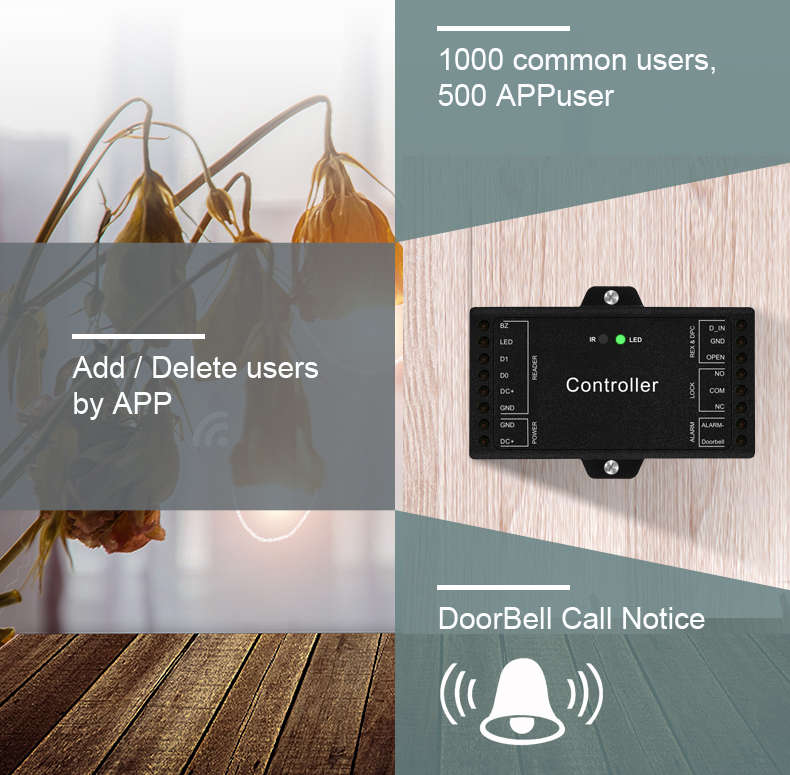

Supports up to 1000 users including up to 987 Common Users (987 Cards/ Passwords users), and 10 Visitors 2 Panic users, 1 Authorized User.
Unlock by App or Password / Card via external Wiegand Keypad / Card Reader (Not included)
Supports external Wired Doorbell Button for Doorbell Call Notice on the app only (Cannot work with indoor chime speaker), Wired Exit Button, and Wired Door Contact sensor.
Can be used as a Wiegand Reader with LED and Buzzer output.
Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers) Max 9 Digits.

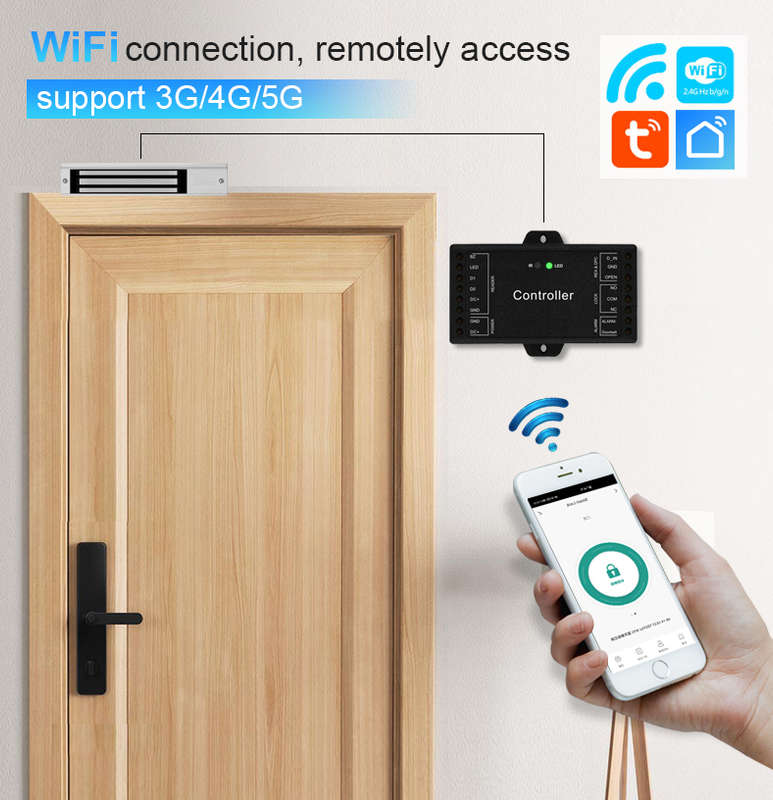

Open your Door Gate Garage from anywhere in the world.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.

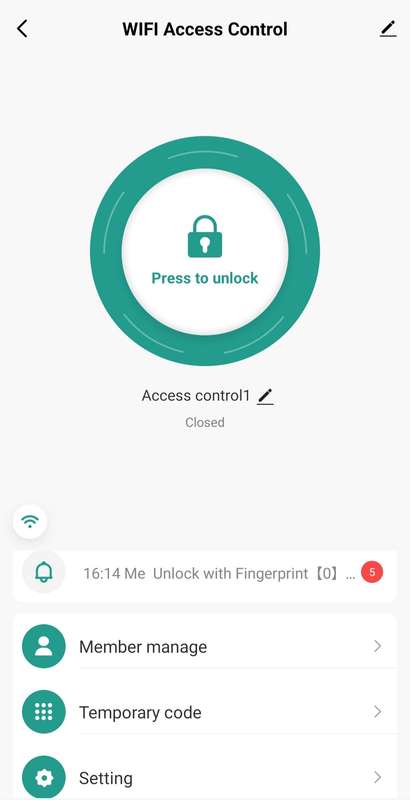

In-App Features;
Tap and Hold to Unlock.

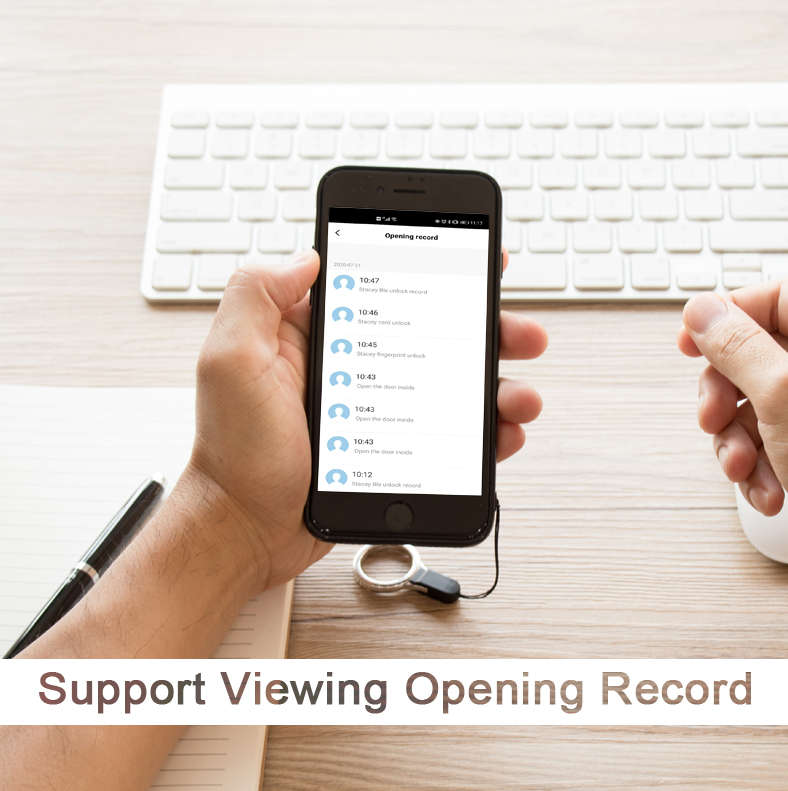

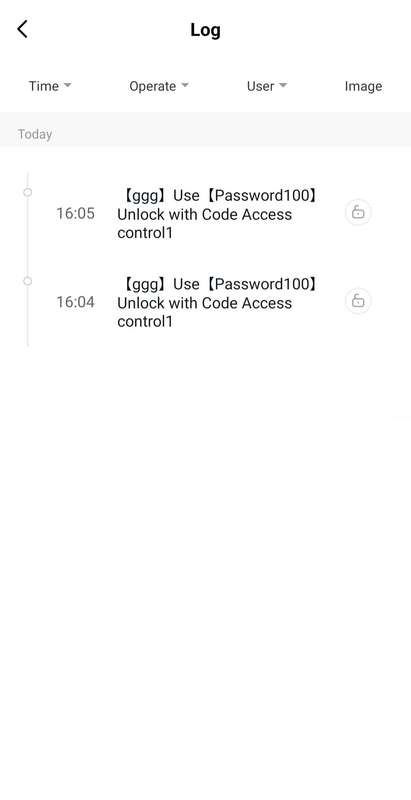

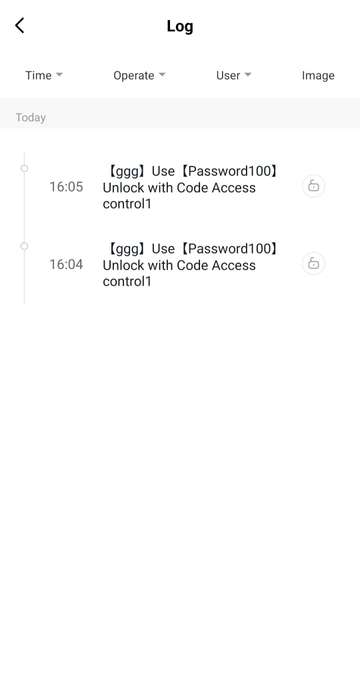

Logs (Records User, Date, Time of unlock or Alarm Failed attempts)

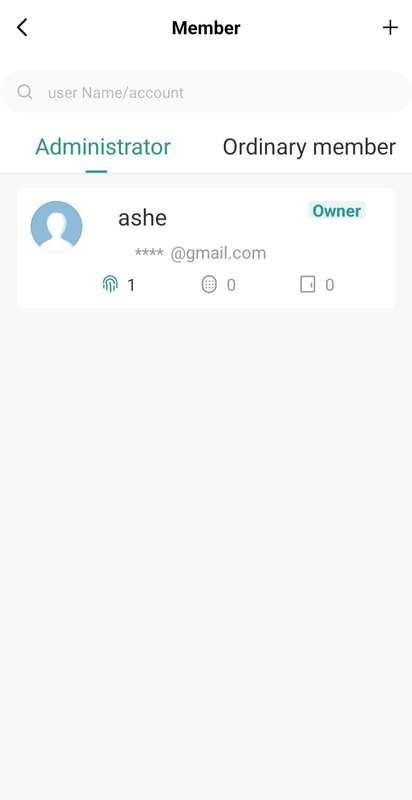

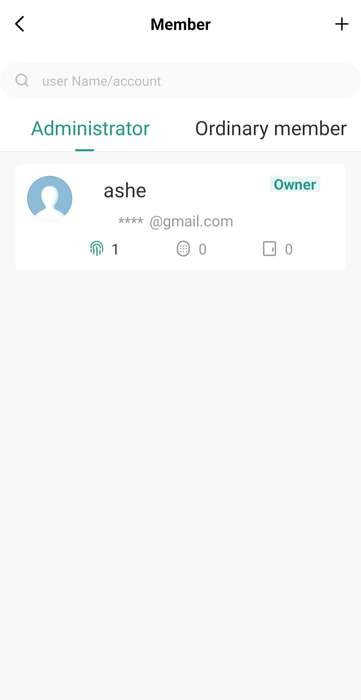

Member Manage: Administrator (Can manage Devices and Members. Must have Tuya or Smart Life app) | Ordinary Member (Can only view Unlock and Alarm records. User can be created without them having the app). Add Multiple codes or Cards under each user Profile. Set an Effective time (Forever or Certain Effective and Expire Date including Repeat certain Days; Monday to Sunday and Start and End times) and Delete the User.
Temporary Code: Cyclicity, Input a 6 Digit Temporary password that Starts and ends at a certain date and time including Repeating certain Days; Monday to Sunday, and Start and End times | Once-Off Offline 10 Digit Code valid for 6 Hours and can only be used Once then Expires | Logs Record.
Settings: Remote Unlock Settings (Unlock from App). Permission for all app users or Admin users Only | Automatic Unlock | Auto Unlock Time (1-100 seconds) | Alarm Time (1-180 Seconds) | Key Volume.
Specifications;
Electrical Voltage: DC12V | Working Current 150mA | Idle Current 100mA.

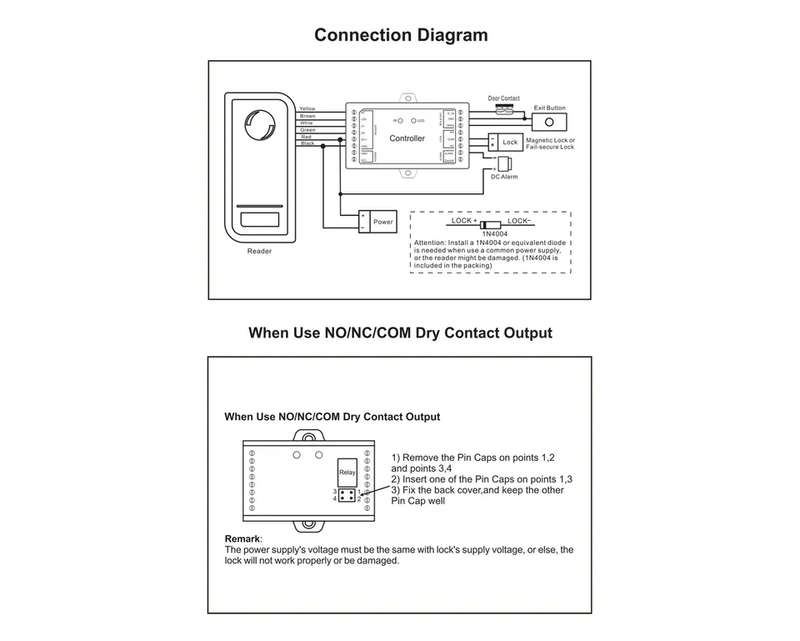

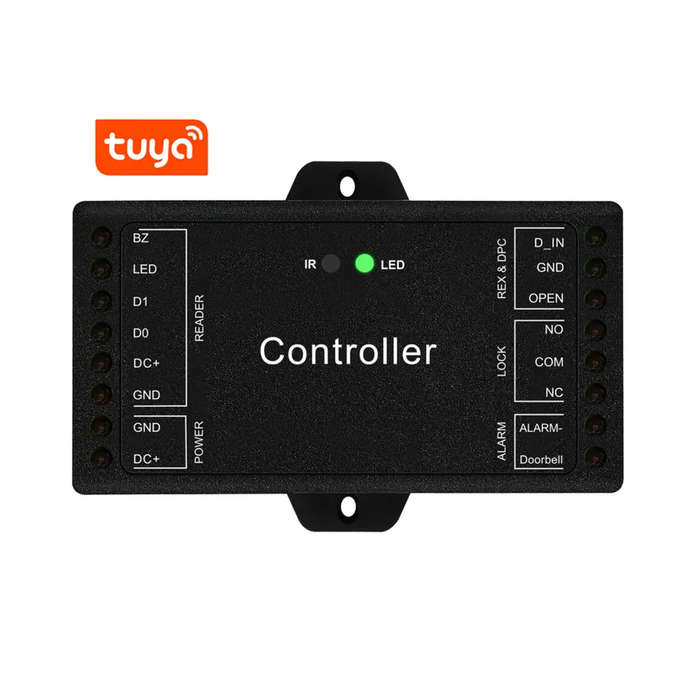

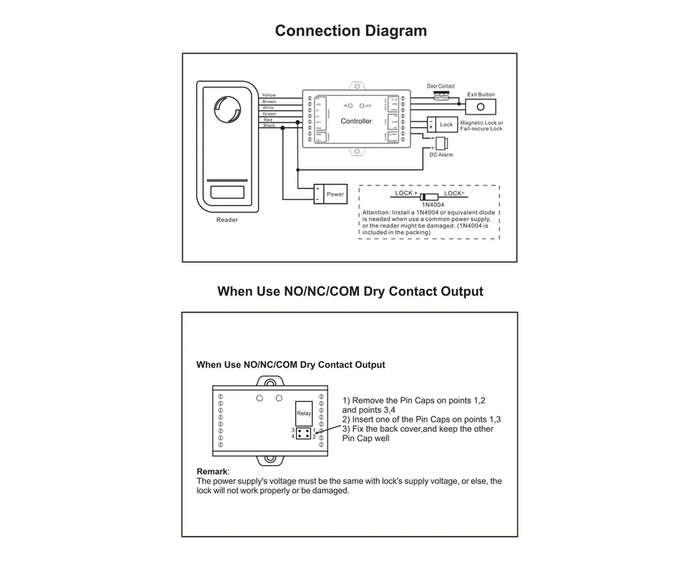

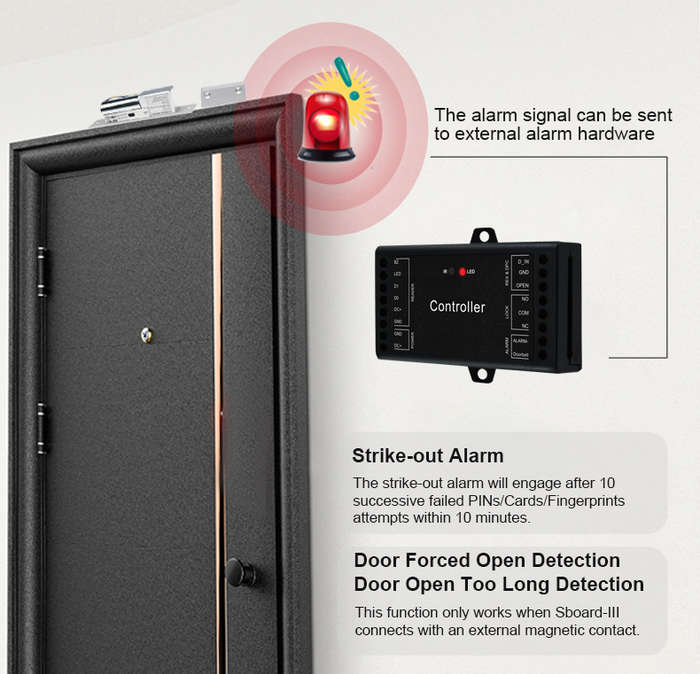

Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Alarm, Door Contact, Doorbell, Wiegand Input, and Wiegand Output.
Connect Doorbell wires to Doorbell and GND. Exit Button wires to OPEN and GND. Door Contact Sensor wires to D_IN and GND.
Please note that the Wiegand Keypad / Card Reader, Doorbell button, Exit Button and Contact Sensor are not included.

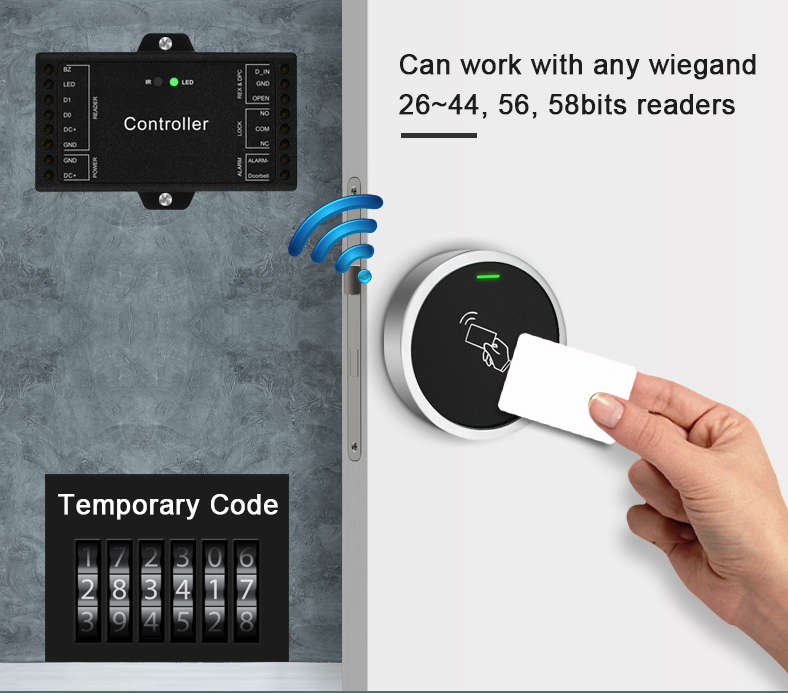

Supports Wiegand 26~44, 56, 58 Bits Keypad for Password or Code or Card Reader with 4Bits, 8Bits (ASCII), or 10 Bits Virtual number outputs.
User Data (Card or Password/Pins) can be transferred via D0 and D1 inputs. Fingerprint Data cannot be transferred if you are using access control with a fingerprint reader.

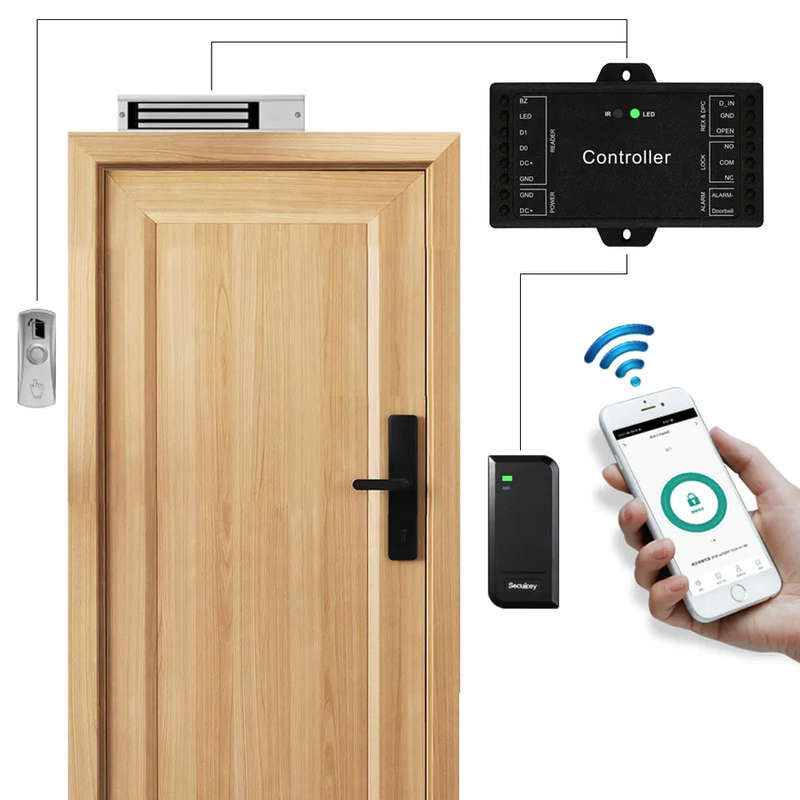

Can be used for Doors, Gate Motors, Garage motors, etc. Will connect to 12V DC+ (Live) and GND (Ground) on POWER input to power up the unit and COM and NO on the LOCK (Normally Open) connected to PB (Push Button) / BT (Button Trigger) on your Motor Circuit Board.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Material: ABS. | Color: Black.
Installation: Indoor. Please note that this product is not waterproof.

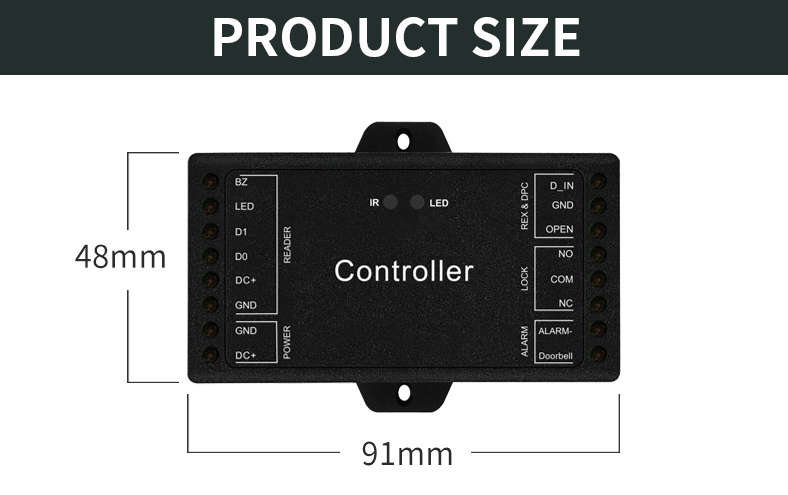

Dimensions: Box 120 x 110 x 30mm
Weight: 150g.

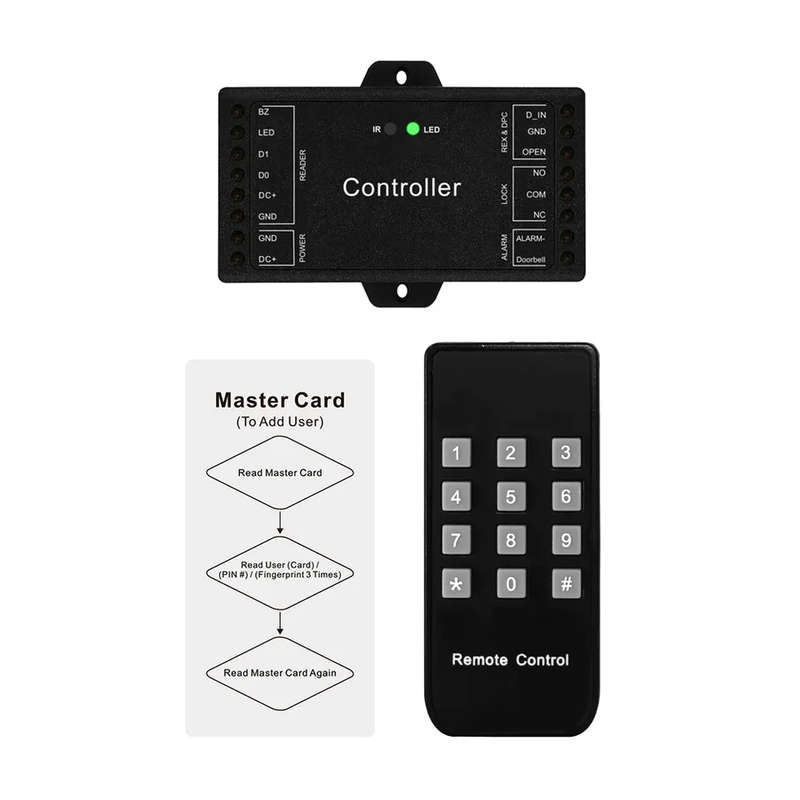

What's in the Package;
1 x WIFI 12V Access Controller for Wiegand Keypad Reader.
1 x Remote Controller for Programming (CR2025 Battery Included).
1 x Master Card.
1 x Diode IN4004.
1 x Set of Screws.
1 x Screw Driver.
1 x User Manual.
Please note that this is only the Access Controller as per the Picture. A Wiegand Keypad or card Reader, Magnet/ Electric Bolt Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly.
