Rated Supply Voltage | AC 220V |
Operation Voltage Range | AC80v-400v(single phase) |
Rated Frequency | 50/60Hz |

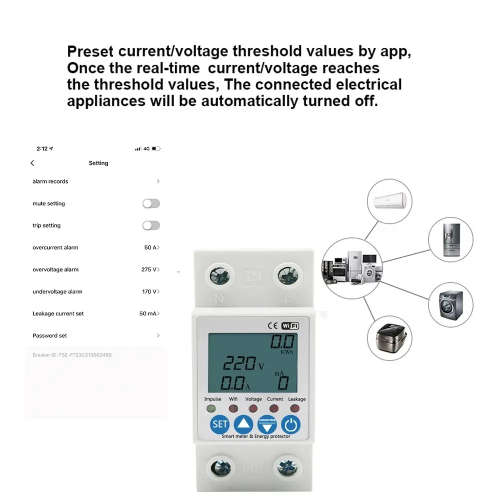

Electric Current (>A)setting range | 1-63A |
Overvoltage (>U) setting range | 250-300V (adjustable) |
Undervoltage( | 150-190V (adjustable) |
Electric Leakage Protection | 10-100mA(This feature can be turned off) |
Error | 2% |
>U and | 0.5s |
Reset/Start Delay | 5s-90s |
Voltage Measurement Accuracy | l%(Not exceeding 1% of the overall range) |
Rated Insulation Voltage | 400V |
Output Contact | 1NO |
Electrical Life | 105 |
Mechanical Life | 106 |
Protection Degree | IP20 |
Pollution Degree | 3 |
Altitude | 2000m |
Operating Temperature | (-30°C^70°C |
Humidity | <50% at40°C (without condensation) |
Storage Temperature | -30°C~70°C |

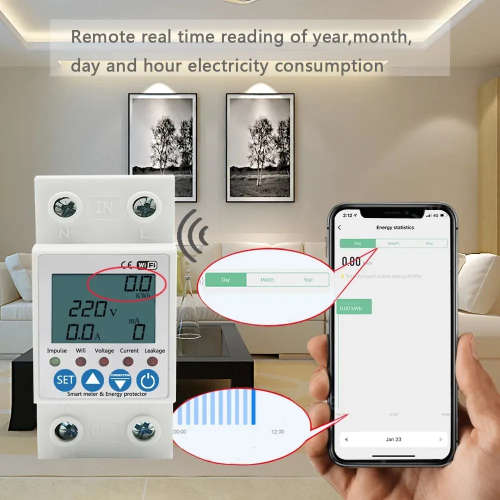

Power Display Range | 0-99999.9kw/h |
