Welcome to Smart Home Automation.

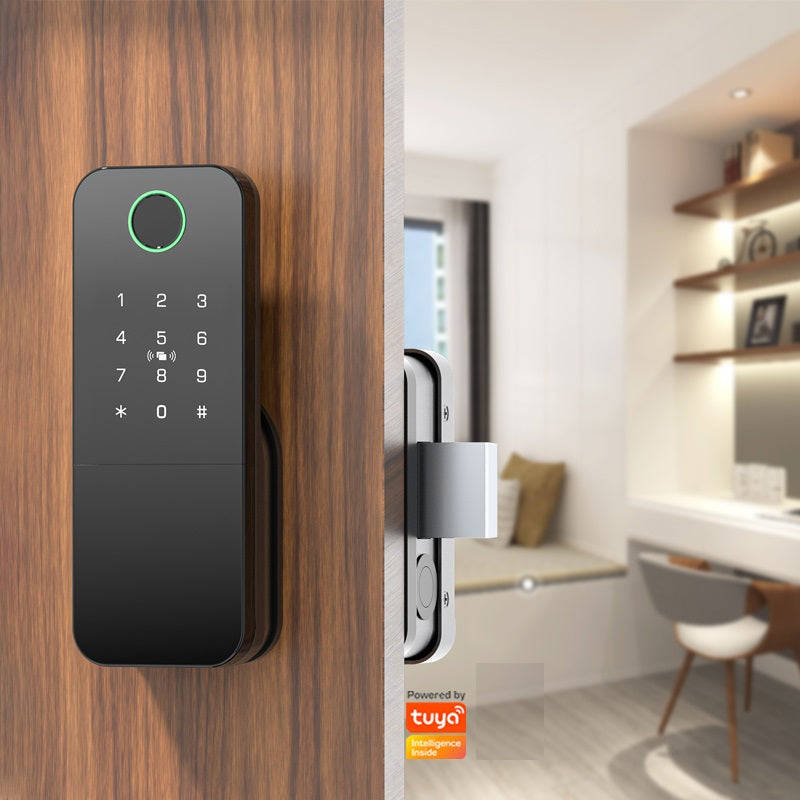

Our Smart Door Rim lock is the perfect access control for opening your Doors via Fingerprint, Keypad, and IC cards or from Mobile smartphones via the Tuya/ Smart Life App from anywhere in the world. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.
All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Features;
- Supports up to 300 users, including up 9 administrators & up to 100 Fingerprints.

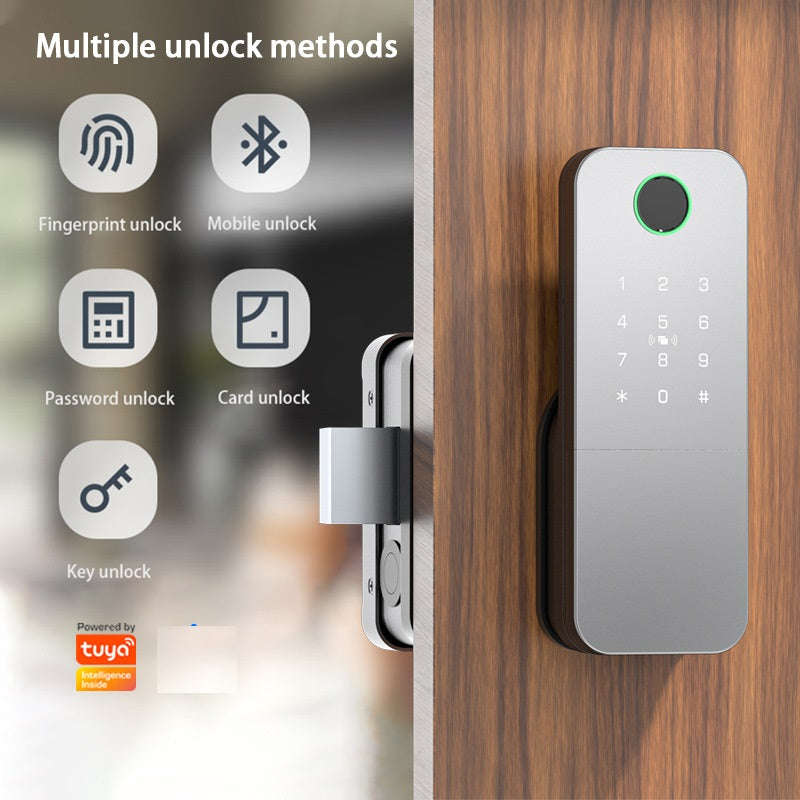

- Unlock by Fingerprint, Key, IC card, Password, App, or the included wireless RF433MHz remote.
- Touch Sensitive Number keypad and Fingerprint Sensor with LED backlighting.
- Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers). max 16 Digits.
- The Lock is motorised so when you successfully open, it will automatically pull the Bolt of the Rim lock inside so you can push the door to open. When you Close the door, the built in Contact sensor triggers automatically & pushes the bolt back out.
- Handles and Rim Lock supports Doors opening to the Left or Right.

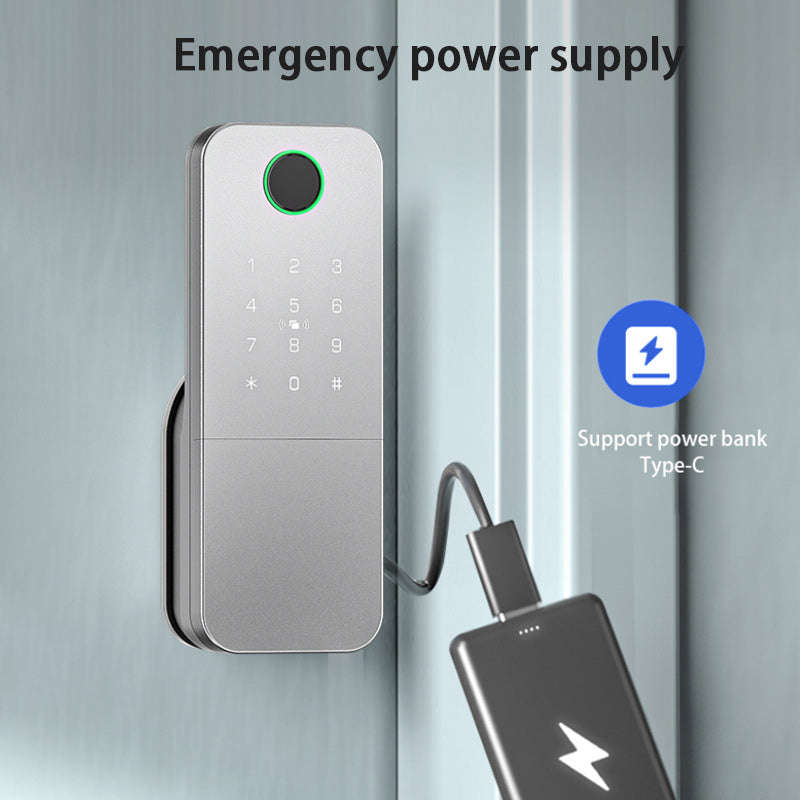

- Emergency 5V USB C Port in case the battery dies off completely. The app will send you a notification before the batteries completely die.

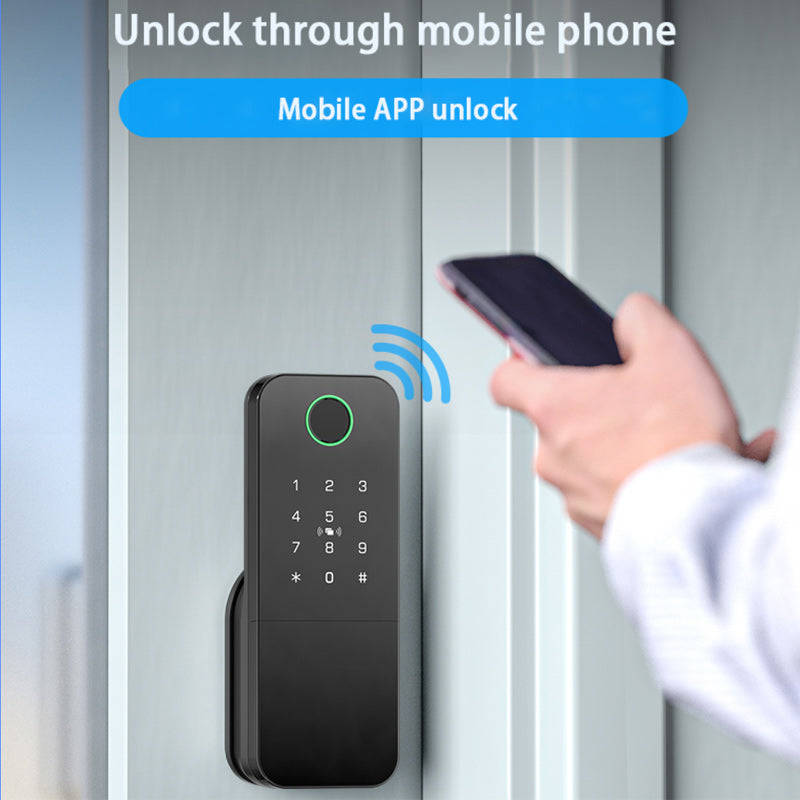

- Open your Door from anywhere in the world.
- Get alerted via Notification on your Mobile Smartphone within seconds.
- Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.
In-App Features;
Obtain Dynamic Password (A random 8 Digit Code that expires in 5 Minutes)(Swipe Green circle to the Left).
Alarm (Date and Time the Door was tried to open and failed, Hijack Alarm).
Users (Manage User's Fingerprints, Passwords, and IC Cards). Set Hijack Alarm so if you unlock using a certain Fingerprint, Password, or Card then it will unlock as well as send a Hijack Alarm to the app.
Records (Date and Time the Door was unlocked).
Temporary Password (Add a Temporary password that Starts and ends at a certain time)
Specifications;
Electrical Voltage: DC 6V (4 x AA Alkaline batteries included) / 12V DC wired.
For Door thickness from 35-100mm.
Wireless Frequency: Connects to WiFi 2.4GHz Only.
Please note Rim Lock Knob turns freely to open / Close the Bolt. Please install where someone from the outside cannot reach over and turn the knob to open.
Material: Aluminum Alloy, Metal, ABS.
Color: Silver.
Installation: Indoor / Outdoor. Handle is IP66 Waterproof/ Rainproof. Please use Rubber gasket sealers when installing for waterproofing.
Dimensions: Box 210 x 170 x 82mm
Weight: 1.58kg.

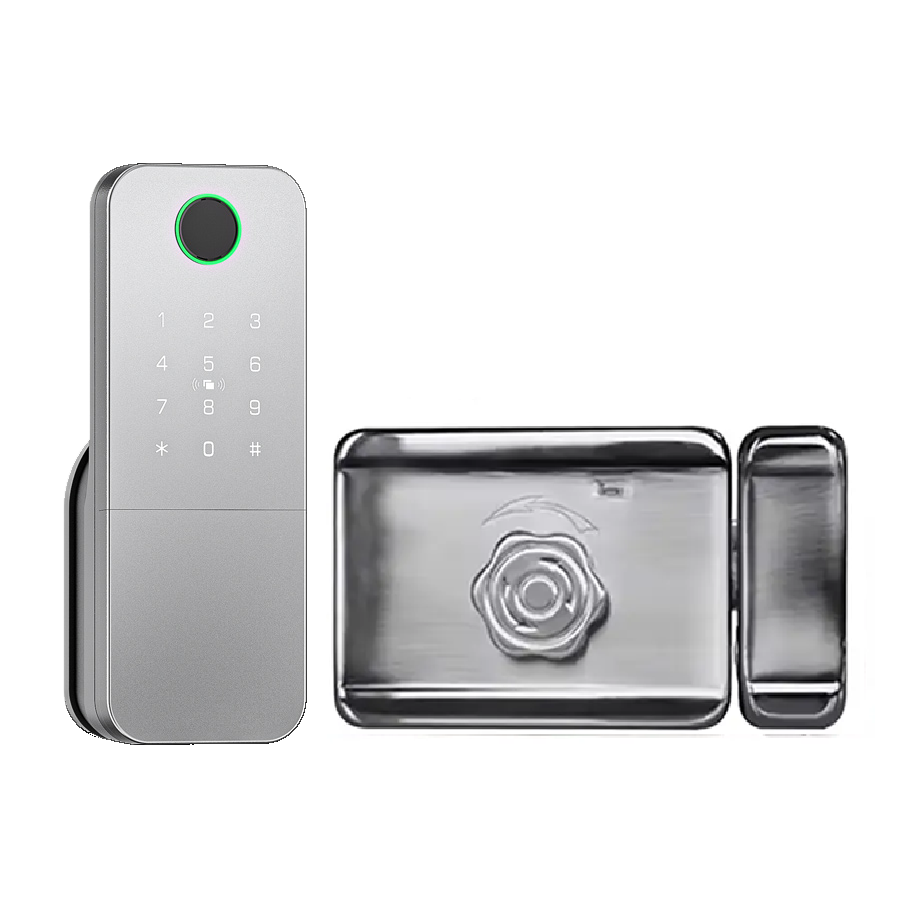

What's in the Package;
1 x Front Fingerprint Keypad Handle w/ Waterproofing Rubber gasket.
1 x Back Rim Lock w/ Waterproofing Rubber gasket.
1 x RF433 Wireless Remote w/ CR2032 Battery.
4 x AA Alkaline batteries.
2 x IC Cards.
3 x Keys w/ Cylinder Lock.
1 x Sets of screws.
2 x Long Screws.
1 x Wire Connector (For 12V wiring)
1 x Drill hole template.
1 x User Manual.
Also available in Double Sided Access Keypad. Please view our listings.
