Welcome to Smart Home Automation.

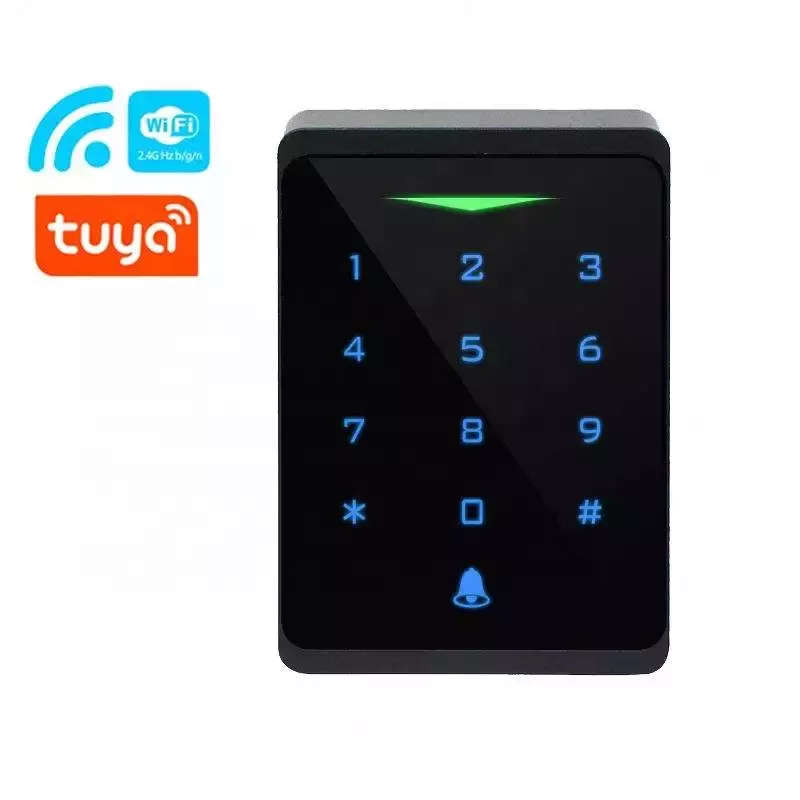

Our WIFI Waterproof 12V Access Control with Keypad, Card Reader, and Doorbell Button can be used for Access Control Doors, Gate motors, Garage Motor Etc, and can unlock from Mobile smartphones via the Tuya/ Smart Life App from anywhere in the world. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc.
This device is for Single Door use and can be used as a Standalone access controller or Wiegand output Reader.
All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Features;
Supports up to 1000 users including up to 990 Common Users (990 Card/ Passwords users), and 10 Visitors.
Unlock by Password, Card, or App.
Touch screen Number keypad with LED backlighting and Doorbell Button.
Pin/ Password Length is 4-6 Digits.
Can be used as a Wiegand Reader with LED and Buzzer output.
Built-in Light Dependent Resistor (LDR) for Anti-tamper.
Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers) Max 9 Digits.
Open your Door from anywhere in the world.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.
In-App Features;

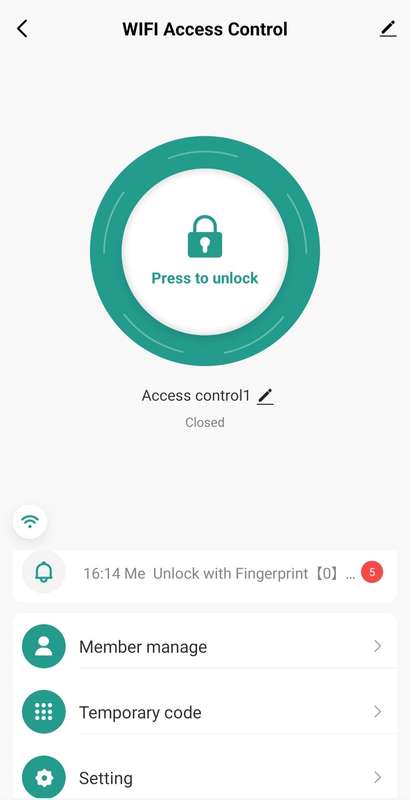

Tap and Hold to Unlock.
Logs (Records User, Date, Time of unlock or Alarm Failed attempts)

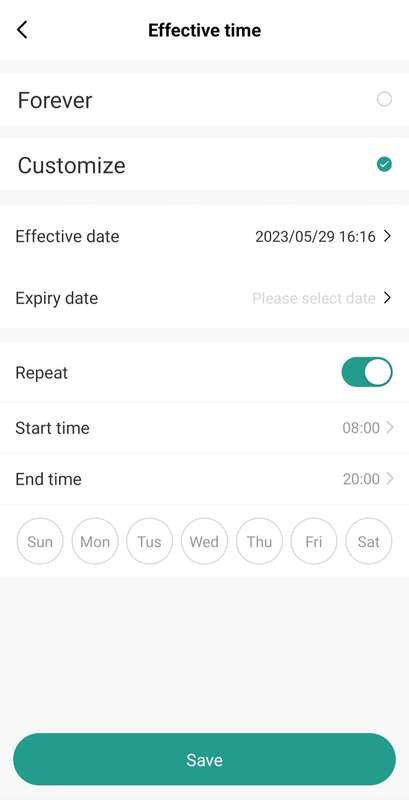

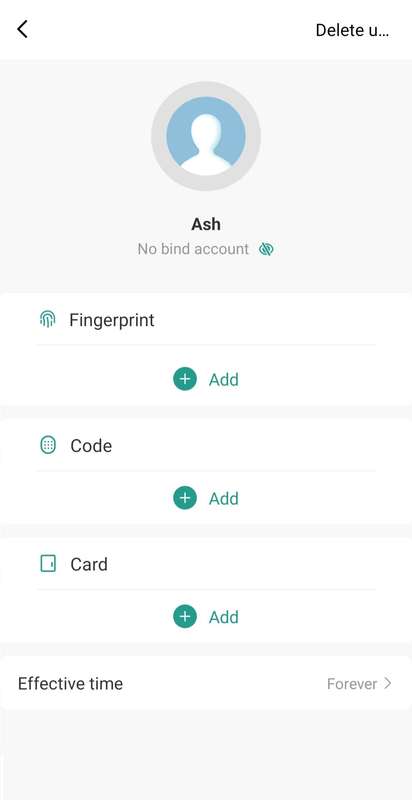

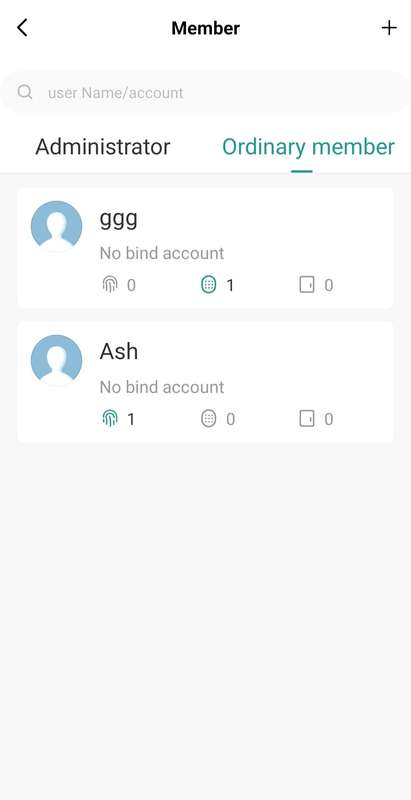

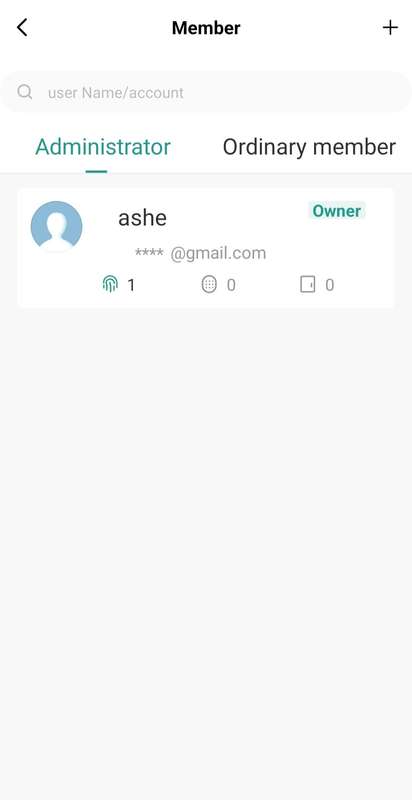

Member Manage: Administrator (Can manage Devices and Members. Must have Tuya or Smart Life app) | Ordinary Member (Can only view Unlock and Alarm records. User can be created without them having the app). Add Multiple codes or Cards under each user Profile. Set an Effective time (Forever or Certain Effective and Expire Date including Repeat certain Days; Monday to Sunday and Start and End times) and Delete the User.

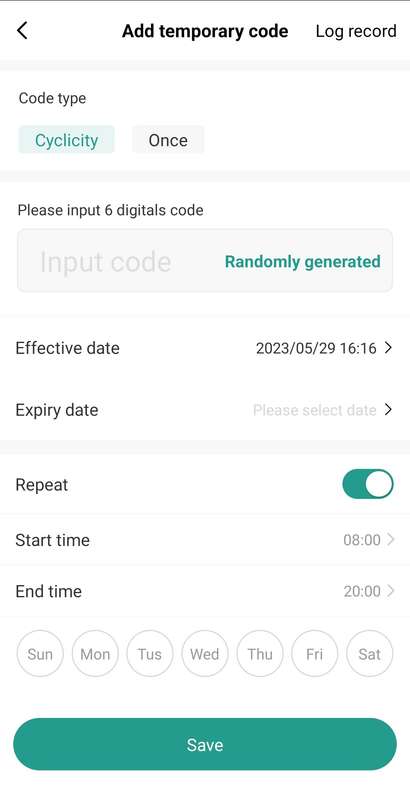

Temporary Code: Cyclicity, Input a 6 Digit Temporary password that Starts and ends at a certain date and time including Repeating certain Days; Monday to Sunday, and Start and End times | Once-Off Offline 10 Digit Code valid for 6 Hours and can only be used Once then Expires | Logs Record.

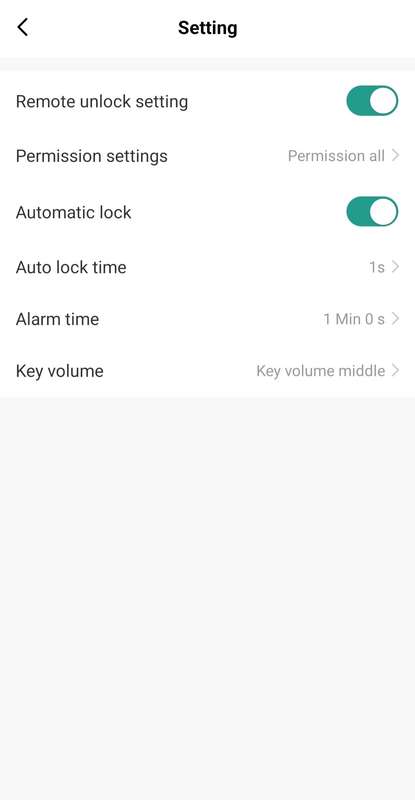

Settings: Remote Unlock Settings (Unlock from App). Permission for all app users or Admin users Only | Automatic Unlock | Auto Unlock Time (1-100 seconds) | Alarm Time (1-180 Seconds) | Key Volume.
Specifications;
Electrical Voltage: DC12V-18V | Working Current 150mA | Idle Current 60mA. If you using a external power supply, this only works with 12V DC Power supply. Does not work with 12V AC Power supply.

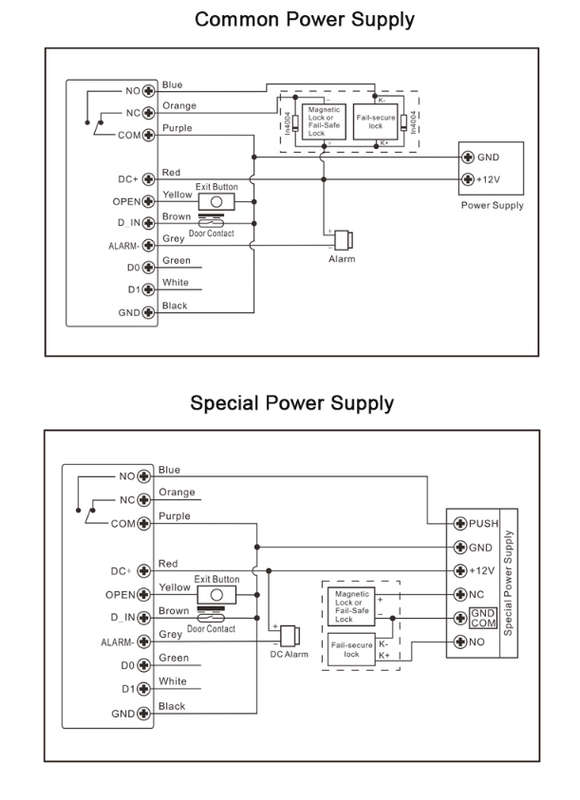

Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Alarm, Door Contact, Wiegand Input, and Wiegand Output.
Keypad for Password or Code | Card Reader (ID Card 125KHz EM) | Wiegand Reader.
Can be used for Doors, Gate Motors, Garage motors, etc.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Material: ABS. | Color: Black.
Waterproof IP66.
Installation: Indoor or Outdoor.
Dimensions: Box 127 x 95 x 57mm
Weight: 0.25kg.
What's in the Package;
1 x WiFi Waterproof 12V Access Control Keypad Card Doorbell.
1 x Diode IN4004.
1 x Set of Screws.
1 x Allen Key.
1 x User Manual.

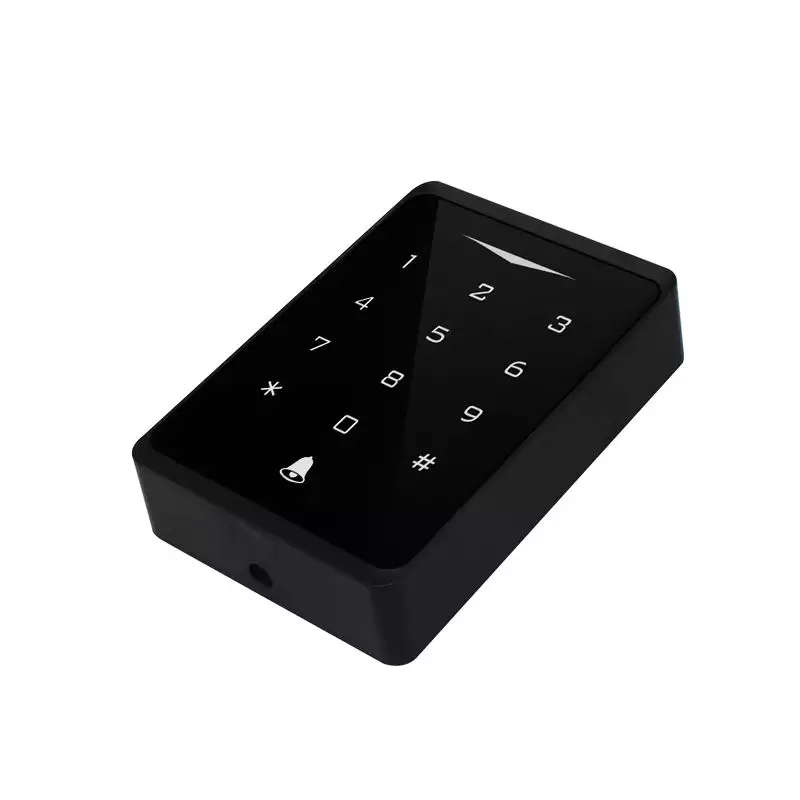

Please note that this is only the Access Control Keypad as per the Picture. A Magnet Door Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly.
*2 Versions available, Without Fingerprint (This Model) and With Fingerprint. Please view our listings*
