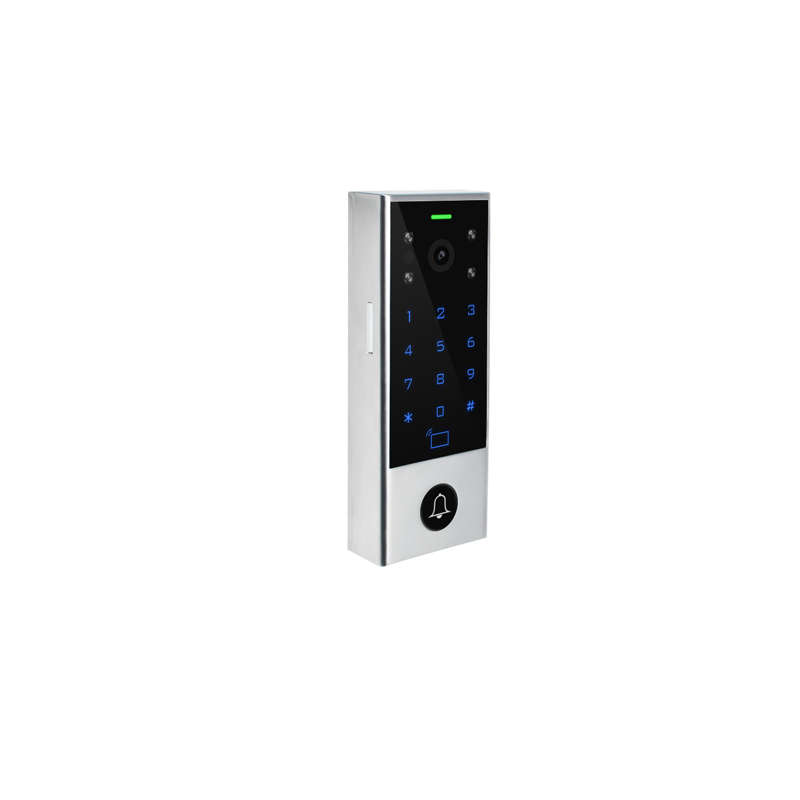

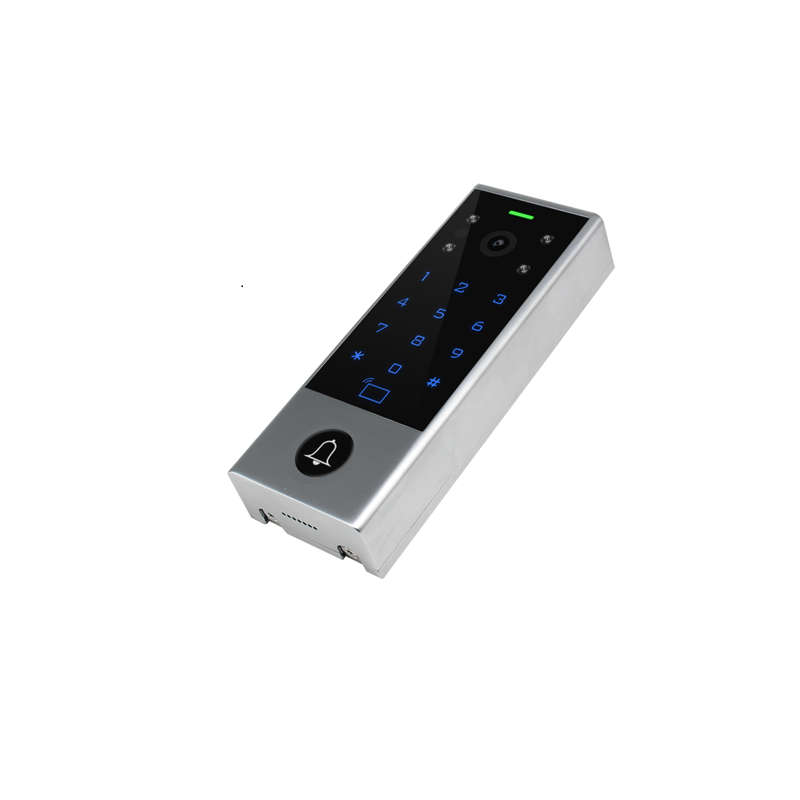

Our WIFI Waterproof 12V Access Control with Video Doorbell, Keypad, and Card Reader can be used for Access Control Doors, Gate motors, Garage Motor etc., and can unlock from Mobile smartphones via the Tuya/ Smart Life App from anywhere in the world. Suitable for Homes, Apartments, Houses, Guest Lodges, Bed, and Breakfast accommodations, Airbnb, Shops, Farms, Businesses, etc. This device is for Single Door use and can be used as a Standalone access controller or Wiegand output Reader.
All you need is Our Smart Home Devices, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Features;
Supports up to 1000 users including up to 988 Common Users (988 Card/ Passwords users), 10 Visitors, and 2 Panic Users.
Unlock by Password, Card, or App.
Touch screen Number keypad and Fingerprint Sensor with LED backlighting and Doorbell Button.
Pin/ Password Length is 4-6 Digits.
Can be used as a Wiegand Reader with LED and Buzzer output.
Password Peeping Prevention function allows you to input a random number then your password then random numbers and once you press the # key then it will register the correct password for example; XXXX CorrectPassword XXXX (X being Random Numbers) Max 9 Digits.
Open your Door from anywhere in the world.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.
In-App Features;
View Video Feed.
Take Picture | Intercom On or Off | Take Video | Check Alarm Video Recordings | Volume | Motion Detection On or Off | Unlock Door.
Users are set up via the Access control unit and the App is used for Video Feed and Unlock Only. Cannot Add, Modify, or Delete Users from the app.
Specifications;
Electrical Voltage: DC12V | Working Current 250mA | Idle Current 150mA.

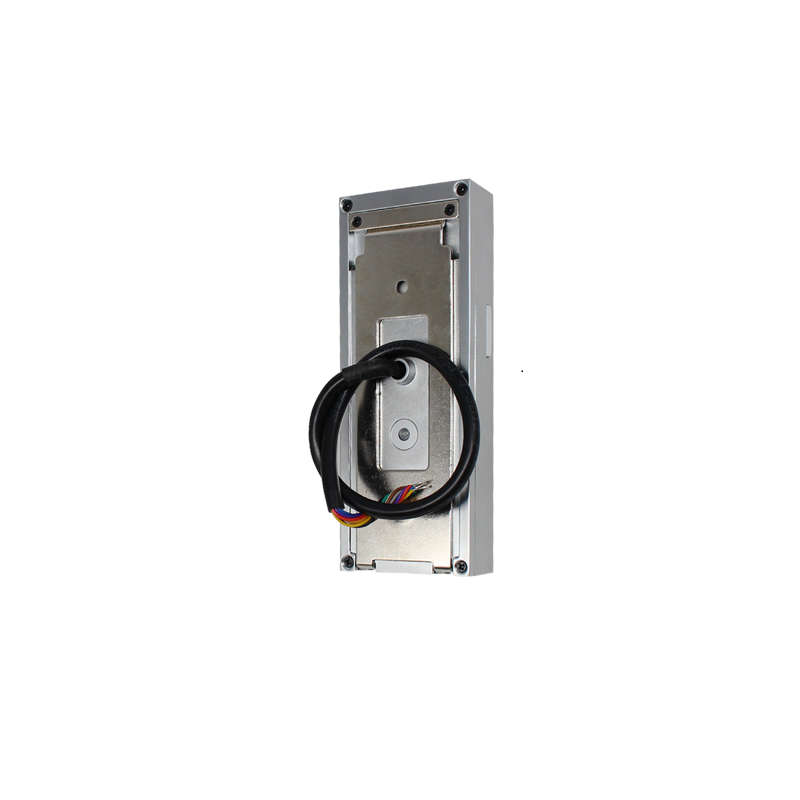

Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Alarm, Door Contact, Wiegand Input, and Wiegand Output.
Keypad for Password or Code | Fingerprint Reader | Card Reader (ID Card 125KHz EM) | Wiegand Reader.
Camera Resolution: 2mp (1080P) | Visual Angle: Horizontal 140° Wide Angle | Night Vision: IR Cut (Colour during the day. Black and White at Night)
Micro SD Card Supported for saving video feed.
Master Card is used to Add or Delete users via the Keypad access control unit.
Can be used for Doors, Gate Motors, Garage motors, etc.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Material: Zinc-Alloy | Color: Silver and Black.
Waterproof IP65.
Installation: Indoor or Outdoor.
Dimensions: Box 160 x 90 x 67mm
Weight: 0.56kg.
What's in the Package;
1 x Tuya WIFI Waterproof 12V Access Control Video Intercom Doorbell Keypad Card VC3.
1 x Diode IN4004.
1 x Master Card.
1 x Set of Screws.
1 x Allen Key.
1 x User Manual.
*Please note that this is only the Access Control Fingerprint Keypad as per the Picture. A Magnet Door Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly.
