Welcome to Smart Home Automation.
The Zigbee smart switch with Energy Electricity Power Monitoring provides you with the perfect intelligent control of your Smart Home or workplace.
View energy Consumption Data on the app to correctly track the energy usage around your home. Know which devices consume the most energy, and make plans to save energy and electricity bills.
This Basic Smart Switch is used to Turn your Devices ON/ OFF from your Mobile Smartphone via the Tuya/ Smart Life App. Switch your Devices ON/ OFF from anywhere in the world.
All you need is Our Smart Home Devices, A Zigbee Hub Gateway, WiFI with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Features;
Switch your Device ON/ OFF from anywhere in the world.
Monitor Electricity Power Consumption via the app.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Supports Voice Control and Works with Amazon Alexa, and Google Home.
Get alerted via Notification on your Mobile Smartphone within seconds if a Device turns ON/ OFF.
Can be used to turn on any appliance under 3500W (16A) Max. Eg. Fans, Heaters, Iron, TV, Kettle, Toaster, Fridge, Freezer, Microwave, or Extension cords that connect to any other appliance.

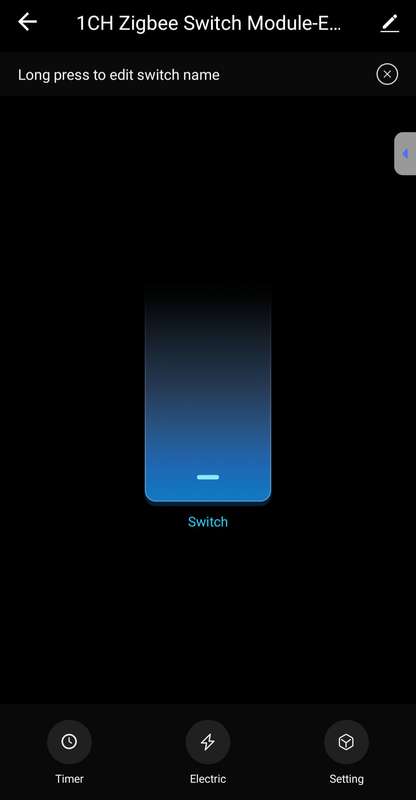

In-App Features;
Power: ON/OFF.

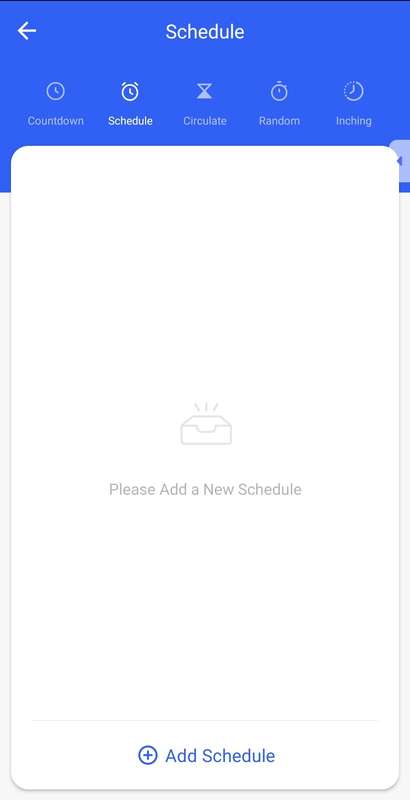

Timer: Countdown | Schedule | Circulate | Random | Inching.

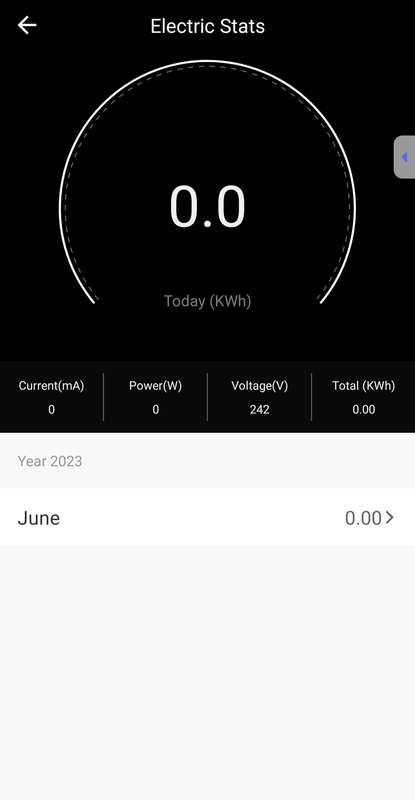

Electric: Real-time monitor of Current(mA), Power wattage, Voltage, and Total Kilowatt Hours including a yearly, Monthly, Daily, and total KWh view.

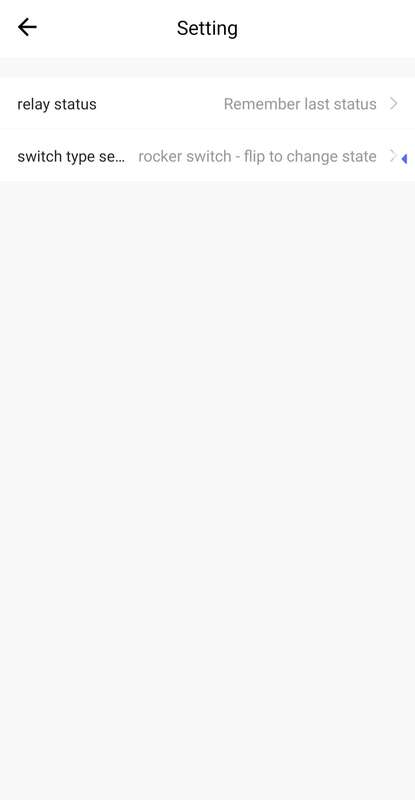

Settings: Relay Status after a power cut, the relay should turn OFF, ON, Remember last status. | Switch Type Setting (Rocker switch - flip to change state, Rocker switch - State synchronous, Button Switch)
Multi-Control Association: Link Other switches or specific buttons for other Switches to this switch.
Specifications;
Electrical Voltage: 100V-240V AC.
Power Rating: 300W LED Light / 16A 3500W Appliance Max.
Wireless Frequency: Zigbee.
Panel Material: ABS + PC.
Color: White.
Dimensions: Box 56 x 47 x 30mm
Weight: 0.044kg.
What's in the Package;

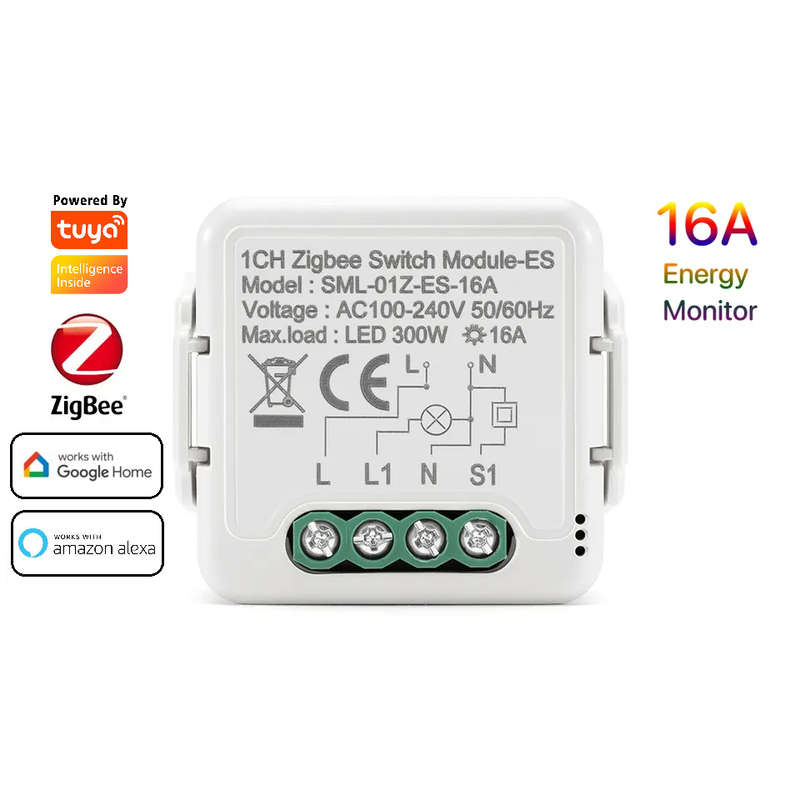

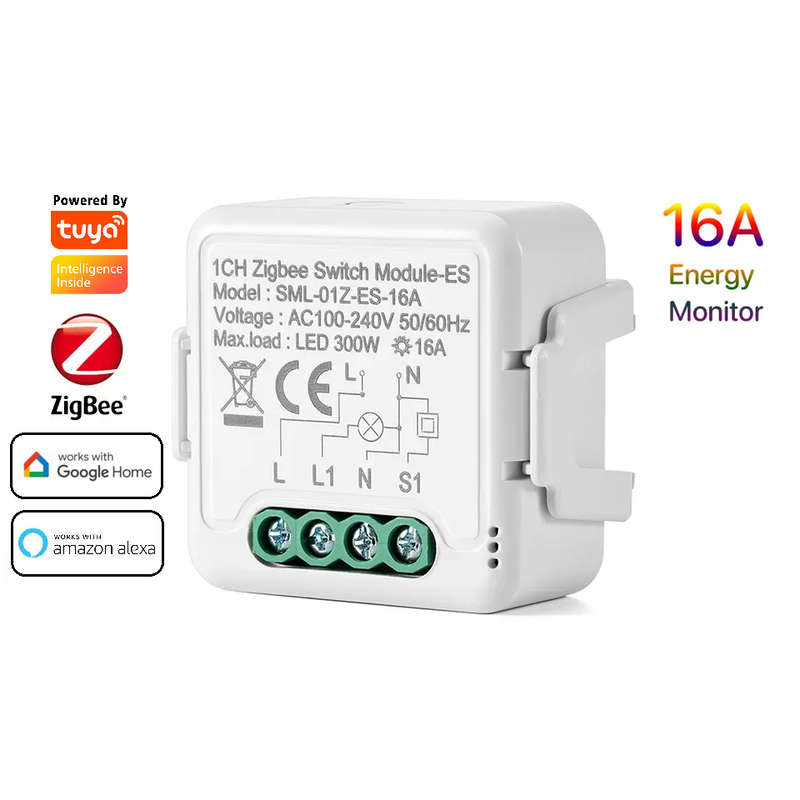

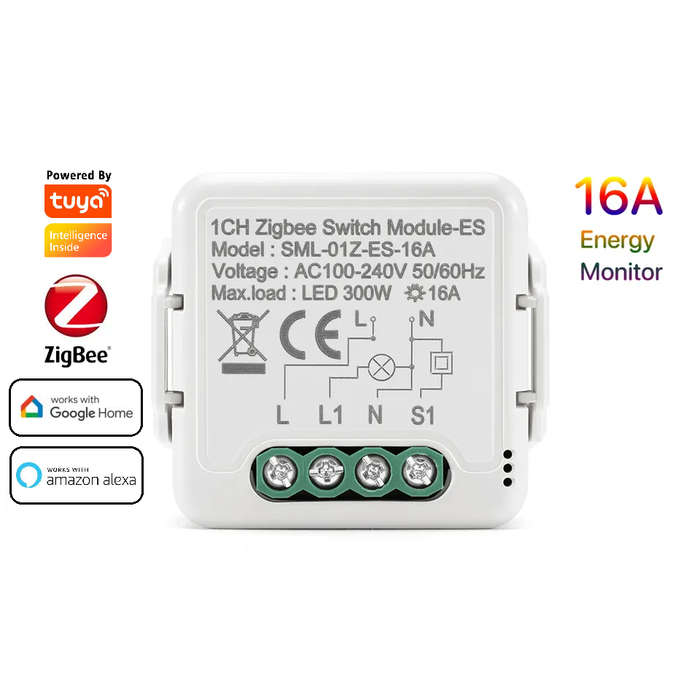

1 x Zigbee 1CH 300W LED Light / 16A 3500W Appliance Mini Power Monitor Switch Breaker.
1 x User Manual.

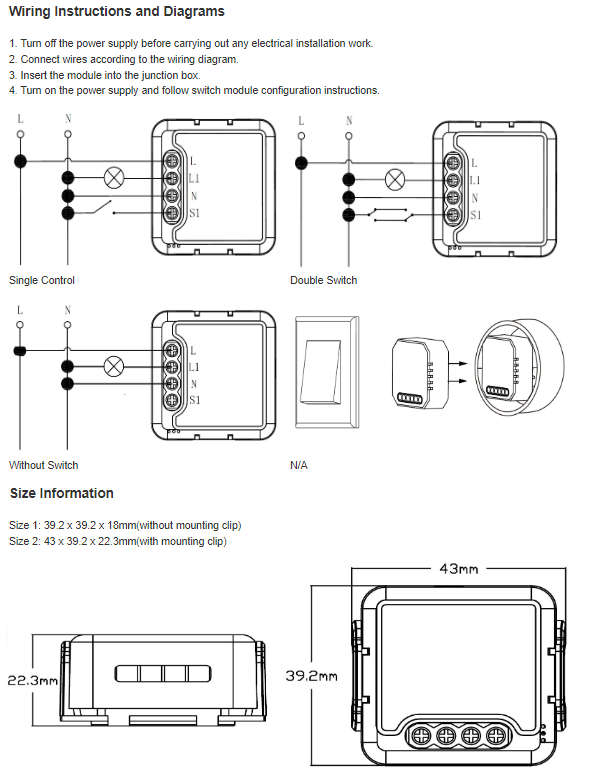

*Please note the wire connection is Live + Neutral in and out. Please also see the Wiring diagrams as per the picture*
*Please note that a Zigbee Hub/ Gateway is needed for this product to work correctly as this product connects to the Zigbee Hub/ Gateway and the Zigbee Hub/ Gateway connects to the Tuya/ SmartLife app to the Internet. Zigbee Hub/ Gateway is available separately for purchase.*
