Smart Light Touch 1G Switch. Supports both neutral or no neutral wire operation + BT Tuya Smart.
This unit supports both 'neutral wire' & 'no neutral wire' operations & is our very latest release (current models to be phased out). The unit and WiFi support BLE (Bluetooth low energy). A WiFi to Bluetooth hub can also be added if required.

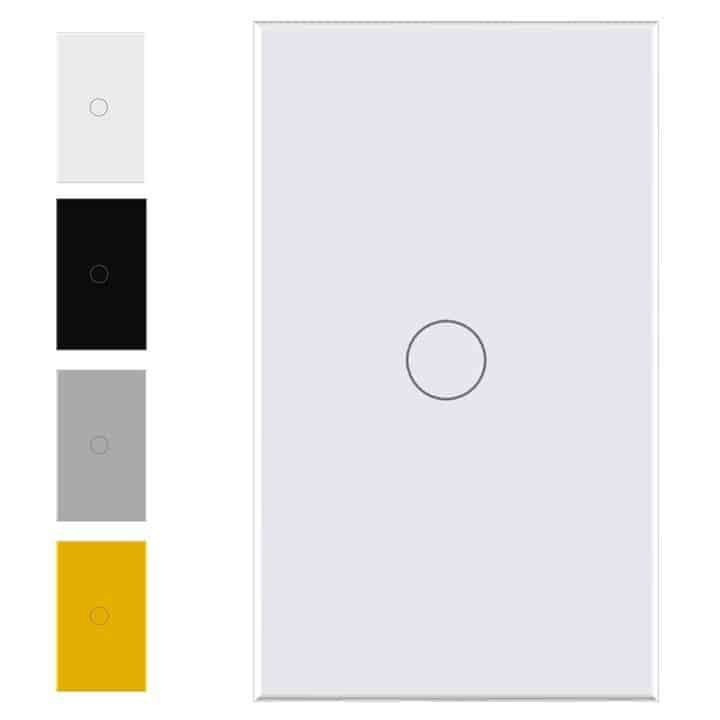

4 colour face plate options: all switches ship sealed with a white face plate (default). All face plates are interchangeable & simply 'clip on'. Black, silver & gold face plates only are sold separately, meaning you must first buy the 'default white switch'.
To buy black, silver or gold Face Plates [click here].
Suitable for any new installations or smart home upgrades by replacing your existing light switches. , 'wire, configure & play'. Home automation is made smart, simple & affordable via the free Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa, Google Home & IFTTT.
Great way to make any appliance or device, 'Smart'.
Download: user manual for Smart Light Touch Switch [click here].
Product Features
- Elegant, design, colour white, black, silver & gold - wire, configure & play.
- Activation dates, days of the week, start time & duration can all be pre-configured via the Smart Life application giving you complete remote control & on/off See 'Getting Started with Tuya' - select from the main menu above.
- Three mode switching namely: 1. touch panel, 2. WiFi (mobile phone + configure all aspects predefined ON/OFF etc) & 3. Bluetooth (mobile phone - WiFi to Bluetooth hub can also be added if required.)
- Supports both 'neutral wire' & 'no neutral wire' present operation. (Capacitor included for no neutral operation - see additional images for wiring)
- Blue backlight colour can be switched off during nighttime hours (so as not to disturb your sleep).
- Supports voice commands & AI units such as Home Assistant, Amazon Alexa & Google Home
- All your smart devices are connected via a single stable platform the Smart Life App from Tuya.
- The entire Smart Life system performance relies on an adequate WiFi (2.4GHz only) signal. We recommend using our WIFI Extender products to ensure comprehensive Home & Outdoors WiFi coverage. To Buy [click here].
Specifications
- Electrical voltage: 110-240V AC / 50-60Hz
- Power rating : 10A max, 2300W (max 1000W per anyone gang)
- Product dimensions：120 x 76 x 33 (LxWxD) in mm
- Material: white ABS (Fire-retardant)
- Wireless frequency: WiFi 2.4GHz, 802.11 b/g/n , WPA-PSK/WPA2-PSK + BT
- Operating temperature: -10ºC - 50ºC
What's in the box?
- 1x Smart Light Touch 1G Switch
- 1x Capacitor
- 1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa Echo Dot, Google Home & IFTTT & more...
