Smart Light Touch Switch, 4 Gang | Dual Mode Neutral + BT | WiFi Tuya Smart Life

Smart WiFi Touch Panel Light Switch - 4 Gang. Supports both Neutral or No Neutral Wire Operation + BT. Tuya Smart.

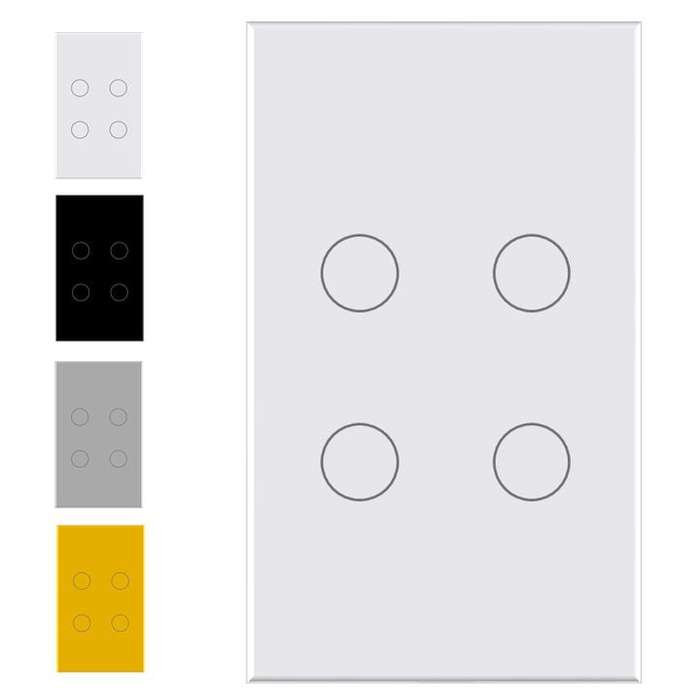

This unit supports both 'neutral wire' and 'no neutral wire' operation and is our very latest release (current models to be phased out). The unit in addition to WiFi also supports BLE (Bluetooth Low Energy). A WiFi to Bluetooth hub can also be added if required. 4 Colour Face Plate Options: all switches ship sealed with a White face Plate (default). All Face Plates are inter-changeable and simply 'clip on'. Black, Silver and Gold face plates only, are sold separately, meaning you must first buy this 'default white switch'. To Buy Black, Silver or Gold Face Plates [click here] Suitable for any new installations or smart home upgrades by replacing your existing light switches. Simply, 'Wire, Configure and Play'. Home Automation made Smart, Simple and Affordable via the free Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT. Great way to make any appliance or device, 'Smart'.

Product Features The best Smart light switch

• Elegant, design, colour white, black, Silver & Gold - Wire, Configure and Play.
• Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite. See 'how do I get started' - select from main menu above

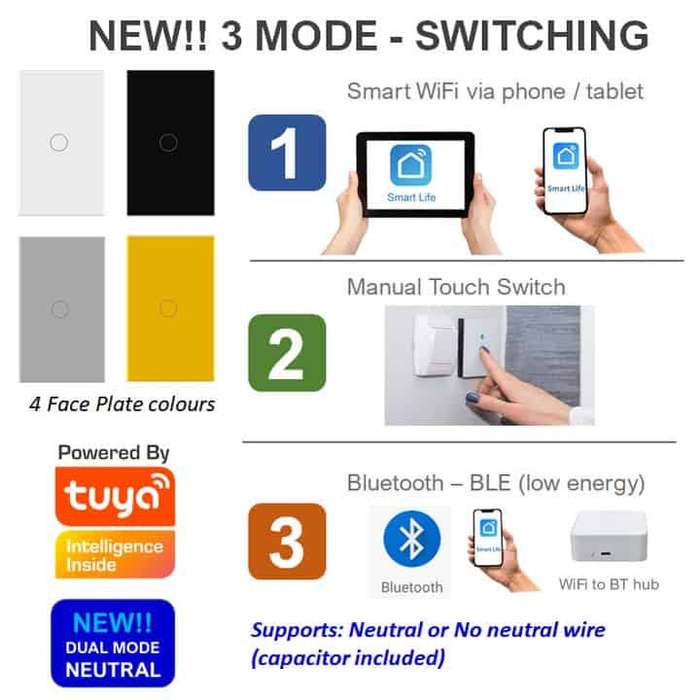

• Three mode switching namely: 1. touch panel, 2. Wifi (mobile phone + configure all aspects predefine ON/OFF etc) & 3. Bluetooth (mobile phone - WiFi to Bluetooth hub can also be added if required.)

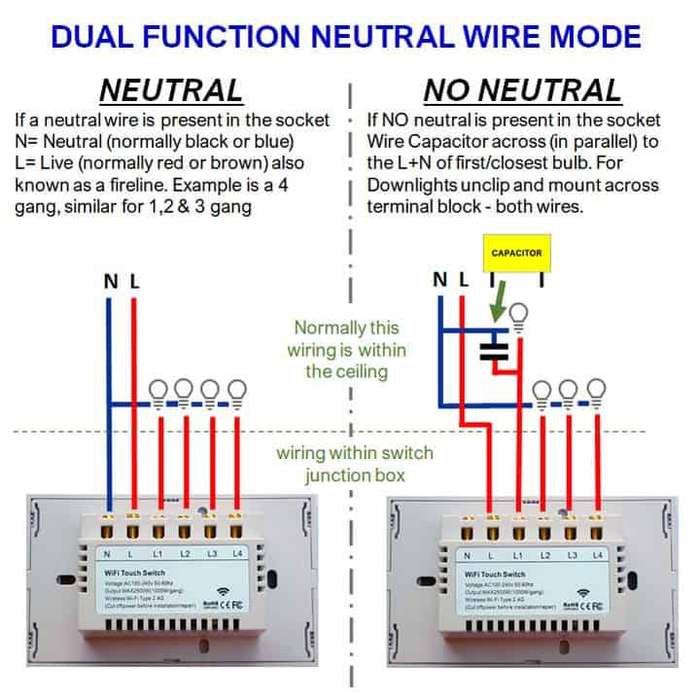

• Supports both 'Neutral Wire' and 'No Neutral Wire' present operation. (Capacitor included for no neutral operation - see additional images for wiring)
• Due to space limitations on the PCB the Blue Backlit colour CANNOT be switched OFF (applies to this 4 Gang model only). If the unit disturbs your sleep, please use tape or cutex etc. to simply blank out the LED's. Alternatively consider a 1, 2 or 3Gang.
• Supports Voice Commands and also AI units such as Home Assistant, Amazon Alexa and Google Home etc.
• All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
• The entire SmartLife system performance replies on an adequate WiFi (2.4GHz only) signal. We recommend the use of our WIFI Extender products to ensure comprehensive Home & Outdoors WiFi coverage. To Buy [click here]

Specifications

• Electrical Voltage: 110-240V AC / 50-60Hz
• Power Rating: 10A max, 2300W (max 1000W per anyone gang)
• Product dimensions120 x 76 x 33 (LxWxD) in mm
• Material: White ABS (Fire-retardant)
• Wireless Frequency: WiFi 2.4GHz, 802.11 b/g/n , WPA-PSK/WPA2-PSK + BT
• Operating Temperature: -10C - 50C
• Chipset: CB3S - WiFi + BLE mode

What's in the Box?

• 1x Smart Light Switch - 4 Gang
• 1x Capacitor
• 1x Instruction Manual
