The Smart 1 Gang Dimmer Mini Switch is a compact, retrofittable relay designed to sit inside an electrical wall box, effectively turning a traditional light switch into a smart device. Because it uses WiFi, it connects directly to your router without the need for an additional hub.

Unlike a standard smart switch, this module uses TRIAC (Edge Cut) technology to vary the voltage sent to the bulb, allowing you to adjust brightness levels from 0 to 100%.

Product features

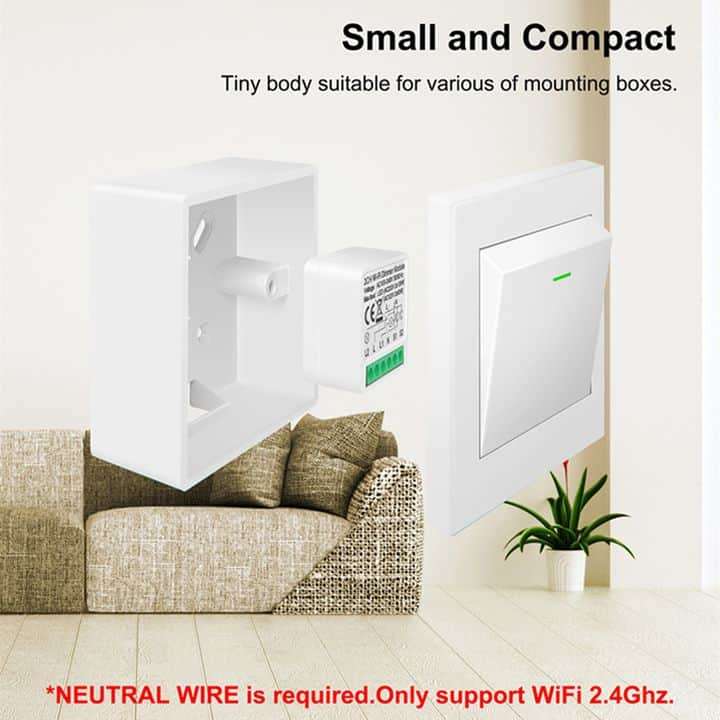

• Physical design: these modules are typically very small, designed specifically to fit behind a physical switch inside a standard conduit box.
• Smartphone control: once paired with the Tuya smart app, you can toggle the power from anywhere in the world.
• Manual override: a critical feature is that your original wall switch remains functional. The module detects the state change of the physical switch and toggles the light accordingly.
• Voice integration: it is compatible with major voice assistants like Amazon Alexa and Google Home.

Specifications

• Input voltage: 100~240VAC @ 50/60Hz
• Maximum load: 150W @ 230V
• Minimum load: 80W @ 120V
• Wireless protocol: WiFi (2.4GHz)
• Operating temperature: -10°C~+40°C
• Operating range: <100 meters
• IP rating: IP20
• Dimensions: 39.2 x 39.2 x 18 (W x D x H in mm)

Typical applications (not limited to)

• Smart lighting: automating ceiling lights while keeping the aesthetic of your existing wall plates.

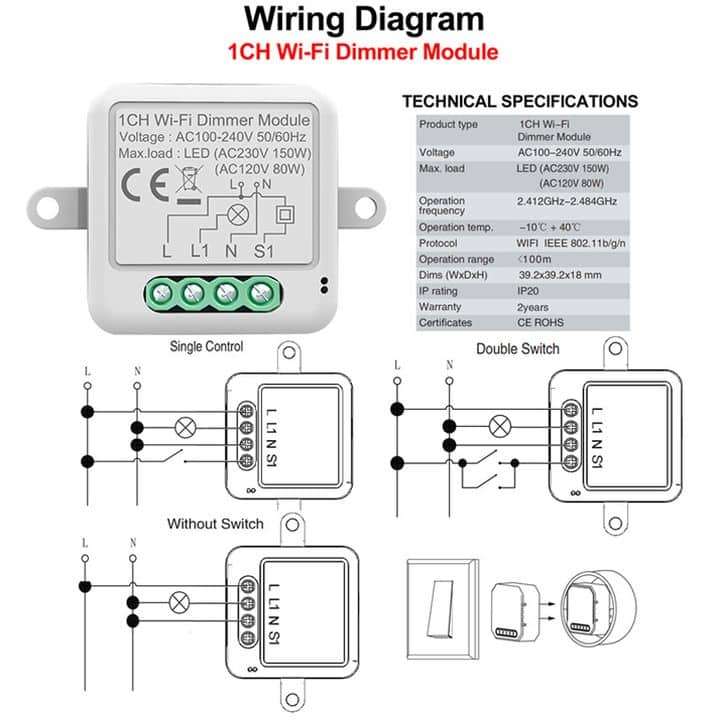

• Two-way switching: it can be wired into a "staircase" circuit where two different switches control the same light.
• Appliance automation: hiding the module behind a wall socket to control a standing lamp or a small appliance like a coffee machine.

What is in the box?

• 1 x Smart 1 Gang Dimmer Mini Switch
• 1 x Instruction manual

FAQ's

• Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
• How do I get started? [click here]
• What devices can presently be Smart Automated? [click here]

Home automation is made smart, simple &  affordable via the Tuya, Smart Life App (Android or IOS),  offering the fastest, most stable platform and widest range of smart products. Supports Alexa Echo Dot, Google Home, IFTTT & more
