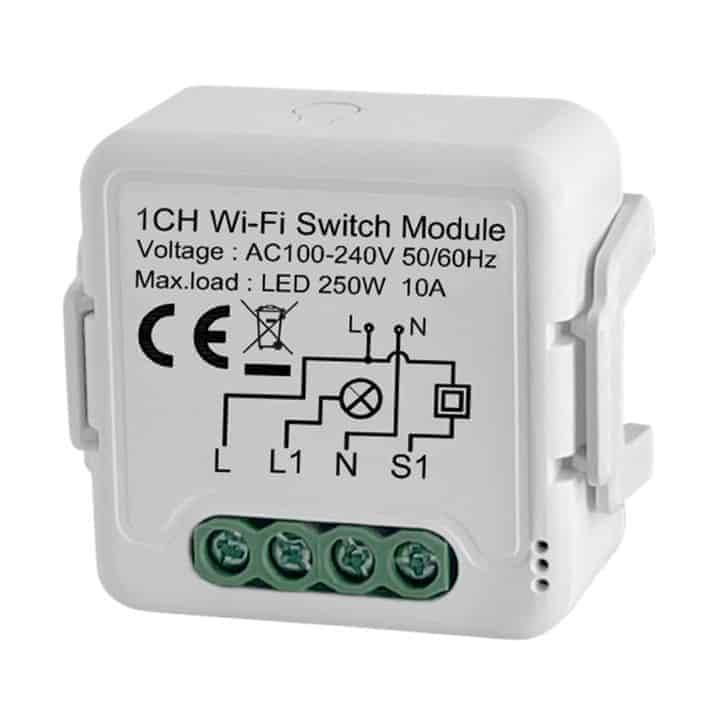

Smart 1CH Mini Module | Tuya Smart Life

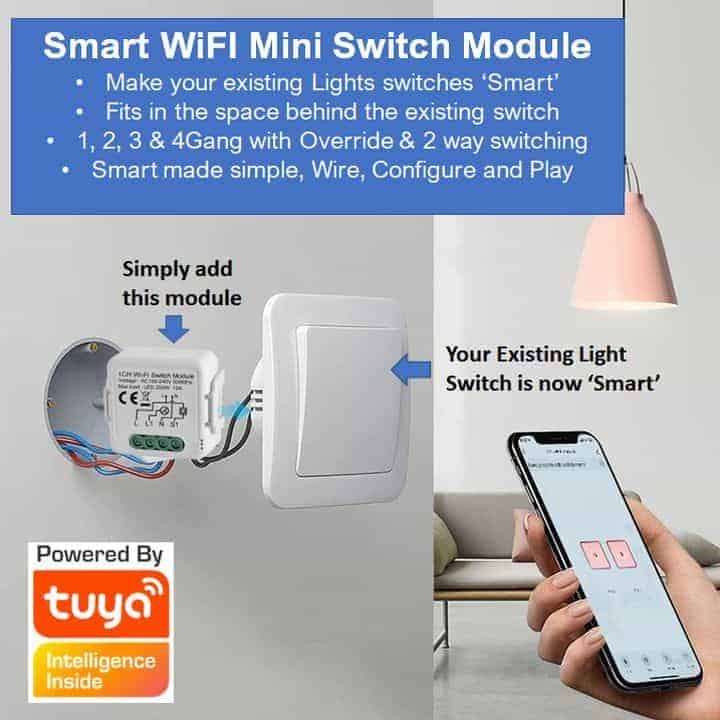

This Smart 1CH Mini Module can be used to make any existing light switch, smart. What this means is you get to keep your existing switches but simply make them smart. The unit is a 1-channel & wiring that can be 2 way & used for switching on either side of a passage or a double-story house, or switch two sets of lights.
Designed with an 'override feature' for the existing socket, this means that when basic switches are used that DO NOT have the override feature & the existing wall socket is switched to on, the smart switch cannot switch off (overridden by the existing switch). This product eliminates this so both the existing & smart switch will work harmoniously.
Simply, 'wire, configure & play'.
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa, Google Home & IFTTT.
Great way to make any appliance or device, 'smart' including your existing light switches, this module fits in the space behind your existing light switch.
Min Modules are available in:
- 1CH Mini Module switch - currently viewing this product.
- 2CH Mini Module switch [click here]
- 3CH Mini Module switch [click here]
- 4CH Mini Module switch [click here]
Product Features
- Small & compact design, wire, configure & play.
- Override feature of the existing non-smart light switch, meaning the existing non-smart light switch can be on/off (non -non-interfering).
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smart Life application giving you complete remote control & on/off overwrite.
- Supports voice commands & AI units such as Amazon Alexa Echo & Google Home solutions.
- All your smart devices are connected via a single stable platform the Smart Life App from Tuya.
- The entire Smart Life system performance relies on an 'adequate WiFi' (2.4GHz only) signal. We recommend using our WiFi Extender products to ensure comprehensive home & outdoor WiFi coverage. To buy [click here].
Typical Uses (but not limited to)
- Smart switching of any light switch, device or appliance that requires a current of 10A (250W) or less. e.g. your existing light switch (with override).
Specifications
- Electrical voltage: 110-250VAC @ 50/60Hz
- Power rating : 1 x 10A, max, 250W

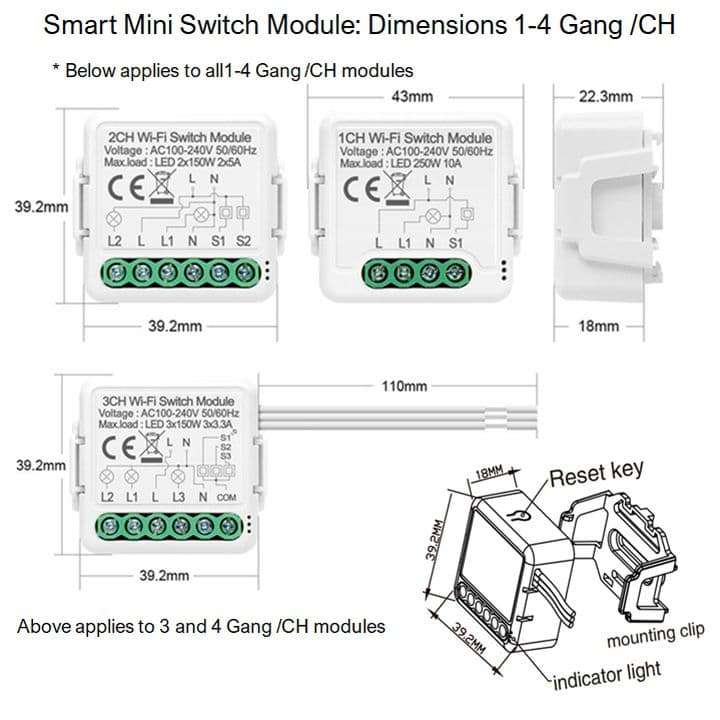

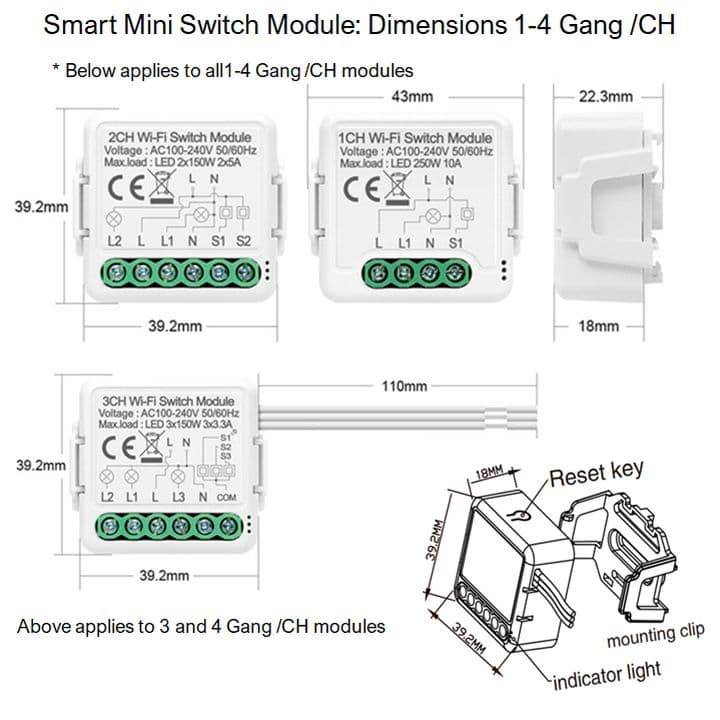

- Product dimensions：39.2 x 39.2 x 18 (L x H x W in mm). Fits in the space behind your existing light switch.
- Material: white ABS (Fire-retardant)
- Wireless frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating temperature: -10ºC ~ +50ºC
What's in the Box?
- 1 x Smart 1CH Mini Module
- 1 x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa Echo Dot, Google Home, IFTTT & more
