Product details

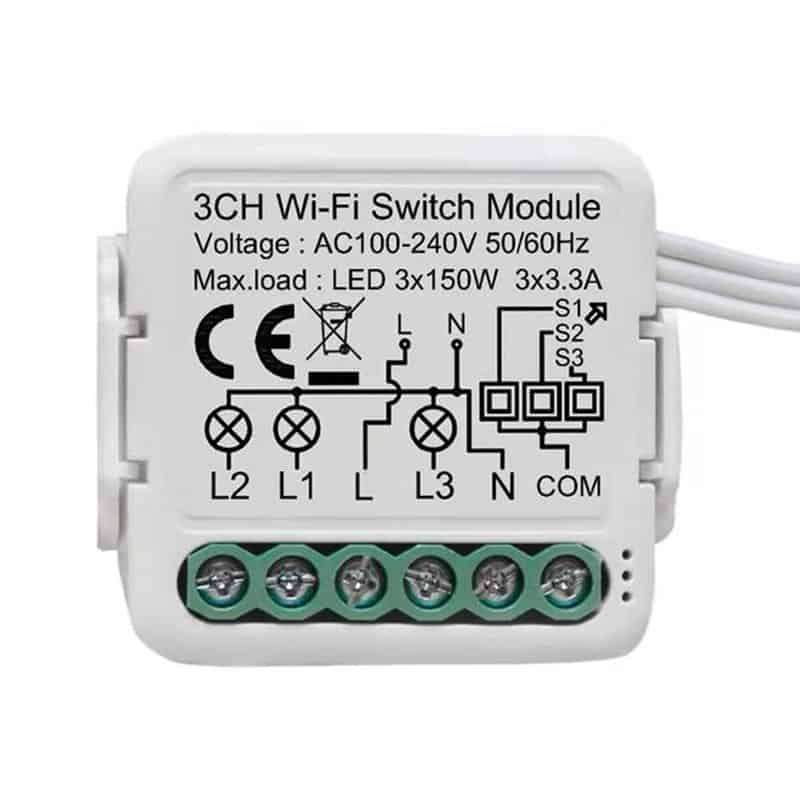

This 10A Smart Switch WiFi module can be used to make any existing wall Socket, Smart. The unit is both 3 Gang and 1 or 2 Way and can be used for switching on either side of a passage or upstairs and downstairs and switches two sets of lights.
Also suitable for 1 or 2 Gang smart Switching with a single set of lights on 1 switch. (Due to the small price difference we no longer stock the 1 Gang, 1 Way modules)
Includes an Override feature for the existing Socket meaning. When basic switches are used that DO NOT have the override feature and the existing wall socket is switched to ON then the Smart switch cannot switch OFF (overridden by the existing switch). This product eliminates this so both the existing and smart switch will work in harmony. Simply, 'Wire, Configure and Play'.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- Small and Compact design, Wire, Configure and Play.
- Override feature of the existing non smart light switch. meaning the existing non-smart light switch can be ON or OFF (non -interfering)
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend our range of WiFi range extenders (Mesh and Power Line systems) to ensure comprehensive Home & Outdoors WIFI coverage. Wifi Enhancement [Click here]
Typical Uses (but not limited too)
- Smart Switching of any device or appliance that requires current of 10A (2300w) or less on an existing light switch (with override).
- Any existing Smart switching application such as Lights, Wall sockets etc.
- Can be 'installed or built-in' to any existing wall socket - see additional images.
Important: place the module in 'pairing' mode
- Fully wire and connect the module. Via the existing switch alternate ON/OFF 6x times till the module makes a constant beep.
Specifications
- Electrical: 110-250V AC
- Power Rating : total 10A max, 2300W

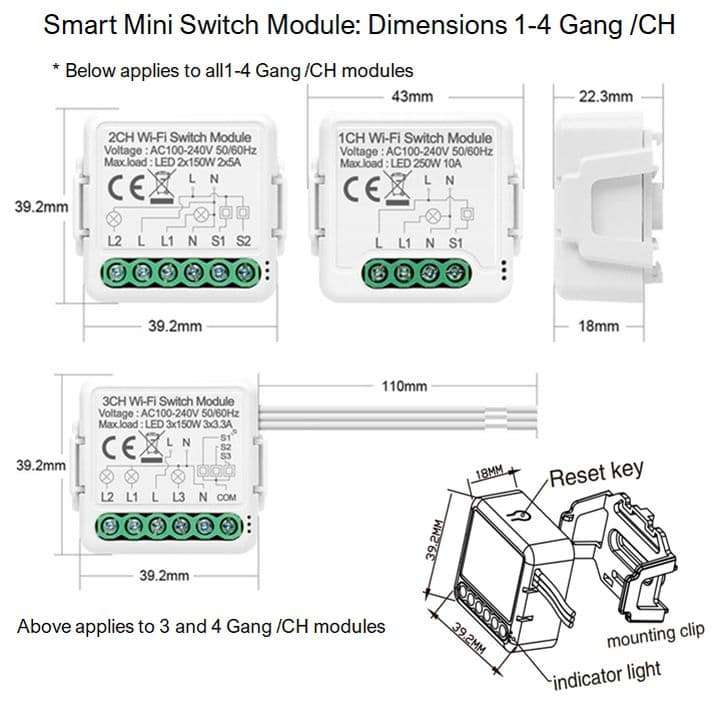

- Product dimensions46 x 46 x 18 (L x H x W in mm)
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10C - 50C
What's in the Box?
1x Smart Switch Module 3G
1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
