This Smart PIR Motion Detector is for expansion to our range of Smart WiFi Security Alarm Systems that support the connection of 433MHz devices. This is the identical indoor PIR that comes standard within our Smart Alarm Kit.
Home Automation is made Smart, Simple and Affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
This Wireless PIR Detector uses advanced signal processing technology. When an intruder comes into the detection zone, the detector will automatically detect the intruder's motion and emit a wireless signal to the alarm Host (Alarm starter kit). This product is widely used in homes, factories, warehouses and offices. It easily adapts to environmental changes, the detector also has energy saving, reliability and easy installation, this device is built to be connected to your smart security Alarm starter kit.

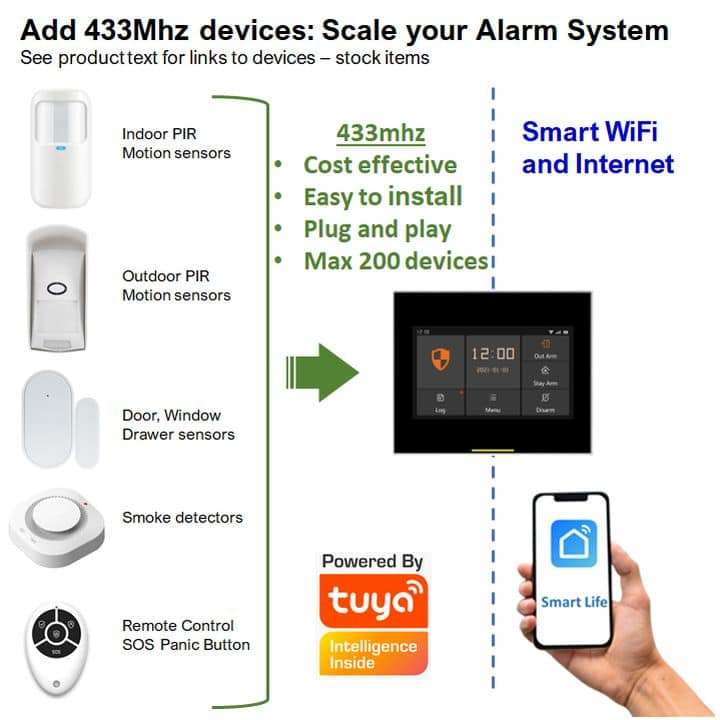

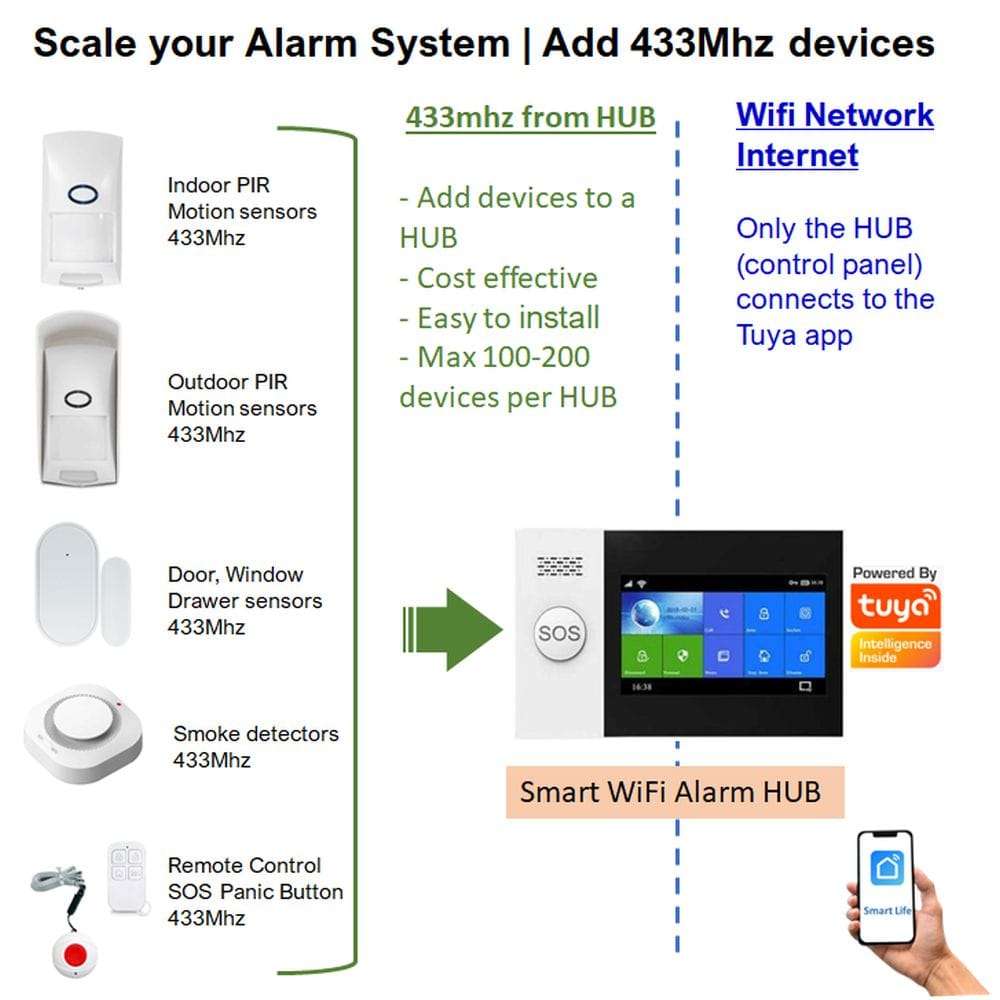

Please note this device is NOT a stand-alone item and does not directly connect to the Tuya Smart Home app. This device is only purchased as an expansion or add-on to an existing Smart Home Alarm System Hub, which support both 433Mhz additional sensors (like this device) and also WiFi which is used for connection to the Tuya app - see additional images.
To purchase our 'Smart Home, Security Alarm Systems' - this device adds to the system [click here]
Product Features
- The PIR (passive-infrared) detects any movement within the detection zone.
- Anti-theft
- Adjustable detecting distance
- Low battery indication
- Digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively reduce false alarm rate
- Communication range of up to 100m
- The detection range of the infrared sensor of up to 12m.
- In or Outdoor use
- Smart Home Sensor
Specifications
| Power Supply | Battery |
| Battery Type | 3x AA Battery DC4.5V (*lifespan +2years) |
| Wireless frequency | 433MHz |
| Wireless transmission range | 100-150 meters (Open area) |
| Coding chip and Resistance | EV 1527 / 330k |
| Detecting distance | 12m |
| Detecting angle | 110° |
| Alarm indicator | Blue / Red LED |
| Low battery indicator | Yellow LED |
| Power switch | ON/OFF |
| Antenna type | Telescopic antenna |
| Static current | 25A |
| Alarm current | 15mA |
| Operation Temp. | 10°C to +50°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 53x38x108mm |
| Weight | 150g |
What's in the box?
- 1 x Smart PIR Motion Detector
- 1 x Mounting Stand
- 1 x User Manual
- 2 x Screws
- 2 x Nuts
