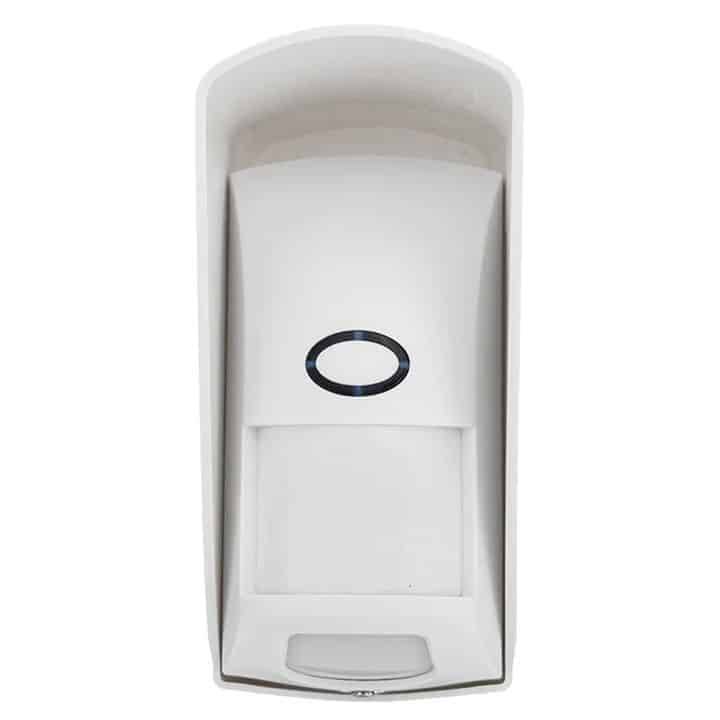

Smart Passive Infrared Motion Detector - PIR | Outdoor | WiFi Tuya Smart Life
Home Automation made Smart, Simple and Affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
This Wireless PIR Detector uses advanced signal processing technology. When an intruder comes into the detection zone, the detector will automatically detect the intruder's motion and emit wireless signal to the alarm Host (Alarm starter kit). This product is widely used in homes, factory's, warehouses and offices. it easily adapts to environment changes, the detector also has energy saving, reliability and easily installation, this device is built be connected to your smart security Alarm starter kit
Please note this device is an add on to the alarm system 'Smart Security Alarm Starter Kit, 433MHZ Sensors' [click here]
Product features
- The PIR (passive-infrared) detects any movement within the detection zone.
- Anti-theft
- Adjustable detecting distance
- Low battery indication
- Digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively and reduce false alarm rate
- Communication range of up to 100m
- Detection range of the infrared sensor of up to 12m.
- In or Outdoor use
- Smart Home Sensor
Specifications:
| Power Supply | Battery |
| Battery Type | 2x AAA Battery DC 3V |
| Wireless frequency | Wi-Fi 2.4Ghz |
| Wireless transmission range | 100-150 meters(Open area) |
| Coding chip and Resistance | EV1527/330K |
| Detecting distance | 12m |
| Detecting angle | 110° |
| Alarm indicator | Red LED |
| Low battery indicator | Yellow LED |
| Power switch | ON/OFF |
| Antenna type | Telescopic antenna |
| Static current | 25A |
| Alarm current | 15mA |
| Operation Temp. | 10°C to +50°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 53x38x108mm |
| Weight | 150g |
What's in the box?
1 x Wireless PIR Detector
1 x Mounting Stand
1 x User Manual
2 x Srews
2 x Nuts
