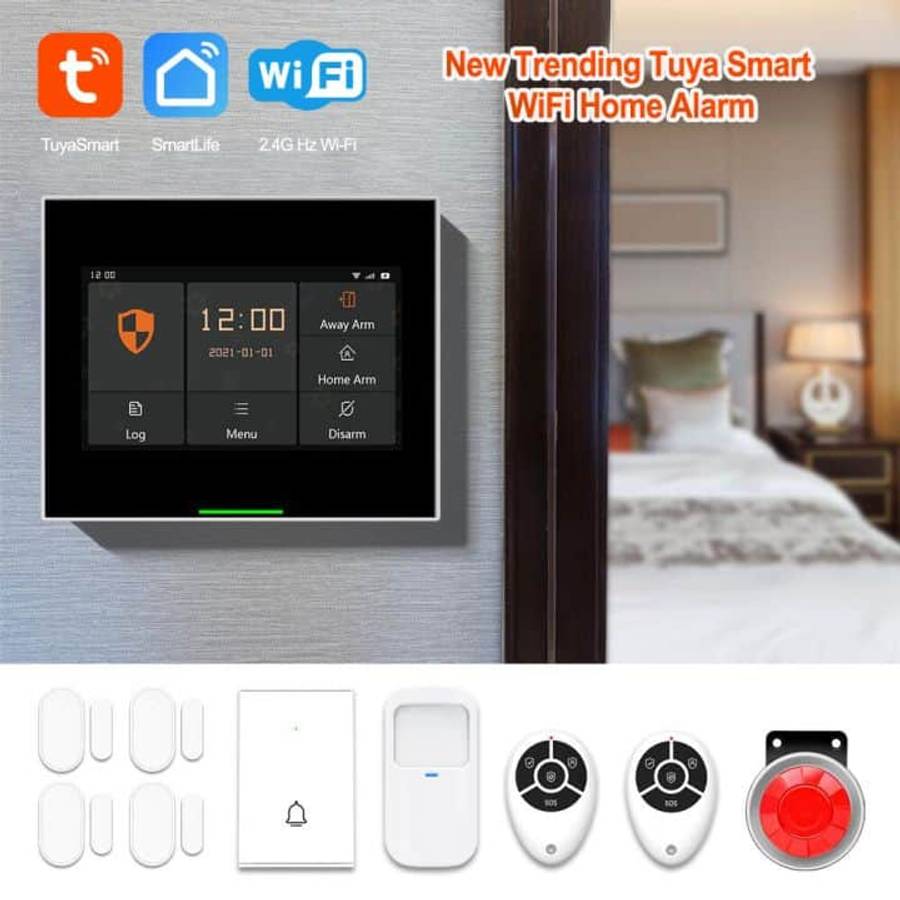

Smart Security Alarm Panel, GSM SIM Card - 2G or 4G option, Tuya Smart Life
The Smart Security Alarm Panel includes motion and magnetic door sensors, remotes, doorbells and sirens to get you started. The choice is yours, scale and create an alarm system that perfectly suits your every need. Simply, add any number of 433Mhz devices to scale the system to your specific needs, configure and Play.
Includes a GSM SIM card cellular backup to the wifi network. The system is completely scaleable meaning you can add various devices as required, up to a maximum of 200. The alarm system is therefore suitable for a wide range of applications from a 1 bedroom flat to a very large home, business or factory.
You can design your very own, fully scaleable Alarm and Video Surveillance system using any number or combination of Smart Cameras and Sensors etc.
This unit supports a Cellular SIM card slot: If you do intend to use the built-in Cellular Back-up SIM card function (not essential for operation), we suggest you select the 4G GSM cellular version.
Simple and Affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
The Home Smart Alarm System can be easily controlled by arming, disarming, and home modes with a simple remote control. In the event of an emergency, you can also seek help by pressing the "SOS" button to send a help signal.
The main controller hub is responsible for connecting all the sensors. When important entry areas such as windows/doors are opened, or when motion is detected, get an instant alert on your phone. The HUB will sound a loud alarm of 100 dB.
Product Features:
- Voice control is compatible with Amazon Alexa/Echo and Google Home, Wi-Fi connection
- Works on 2.4GHz wifi bandwidth and GSM Dual Network Alarm.
- Built-in siren and night light
- supports expansion of up to 200 pcs sensors and 10pcs of either RFID tags and or 433Mhz remote controls
- Rename different zone names, sensors and zones
- DIY installation, home security alarm system kit.
- Expand your alarm to fit any home, apartment or office.
- Low battery detection
- Tamper detection
- Remote control with SOS, arm and disarm functions
- A high-quality Speaker to alert you and or your neighbours when the Siren turns on.
- Set your schedule of when your WiFi Siren Alarm System should be turned ON/ OFF or via Manual activation
- All family members can get alerted via Notification on your Mobile Smartphone.

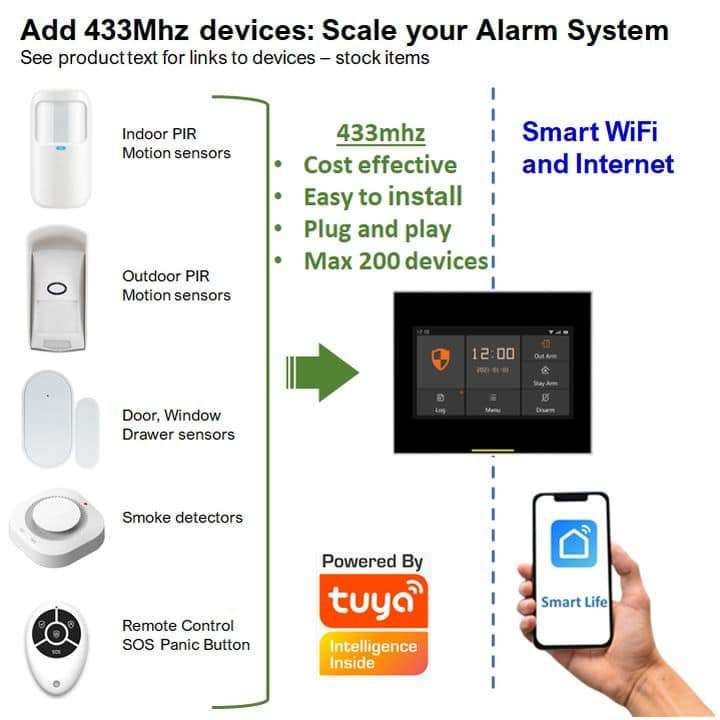

Add Additional devices - Custom scale your alarm system, max 200 devices
- Magnetic Door / Window Sensor 433Mhz [click here]
- PIR Indoor Motion 433MHz [click here]
- PIR Outdoor Motion 433Mhz [click here]
- Smoke Detector 433Mhz [click here]
- Remote Control [click here]
Specifications
| Name | Tuya Smart WiFi GSM Alarm System |
| Model | HT-H502 |
| APP Name | Tuya or SmartHome (free Mobile app) |
| Power Supply | DC5V 1A |
| Sound level | 100dB |
| Backup Battery (Internal) | Lithium battery 3.7V 500mA / NOT affected by LOAD SHEDDING. Extend via a load bank. |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| 2G GSM frequency | Default 2G: 850/900/1800/1900MHz / 5 groups of alarm phone/SMS number. |
| 4G GSM frequency | Select 4G optional |
| Scalable system - add sensors | Smoke sensor (kitchen, garage, fireplace etc) |
| CO2 sensors |
| Motion (PIR) and Door & Window magnetic sensors |
| Wireless frequency | 433MHz / supports both 2262 or 1527 chip sensors; |
| Wireless transmission range | 100meters(Open area) |
| Support Remote Control Quantity | Max 10pcs |
| Support RFID tags Quantity | Max 10pcs |
| Support Wireless Detector Quantity | Max 200pcs of 433Mhz devices/ Custom name for 1-10 zones |
| Alarm Call number No. or SMS number No. | 5 groups |
| Two-way audio | GSM support |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Timing Control | Arm/Home Arm/Disarm |
| Work Mode | Arm/Home Arm/Disarm |
| Panel Color | Black Face Plate with White edging |
| Language | English, Russian, French, Spanish, Vietnamese, German, Italian; |
| Material | ABS |
| Operation Temp. | 10°C to +50°C |
| Humidity | 5%--95% non-condensing |
| Installation | Wall-mounted or desktop-standing |
| Dimension (control panel) | 120 x 105 x16 (W x H x D in cm) |
| Weight | 700gr |
What's in the box?
1 x WiFi H502 GSM Touch Screen Alarm System Controller/Gateway.
2 x RF433 Remote Controller with 3V CR2032 Battery.
4 x RF433 Door or Window Detector with 3V CR2032 Battery.
4 x 3M Tape for Door or Window Detector.
1 x RF433 PIR Motion Detector with AA Batteries.
1 x PIR Motion Detector Mounting Bracket.
1 x Doorbell Button.
1 x Wired Siren Speaker.
1 x Micro USB Cable.
1 x 5V 1A Power Adaptor (2 Pin).
1 x User Manual.
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, IFTTT and more...
