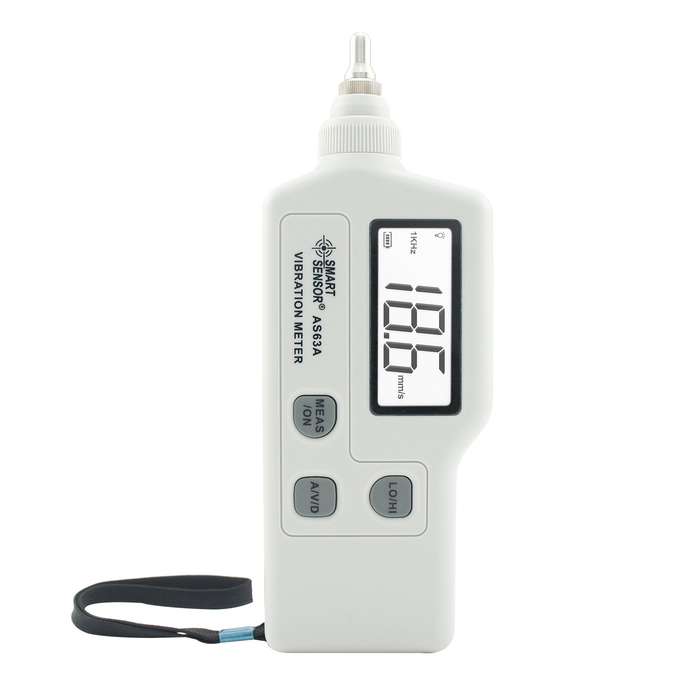

SMART SENSOR AS63A Digital Vibration Meter with LCD Screen Vibration Analyzer Tester AC Outpu

This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation, etc.

Features:
1. Visually displays measurement value and state.
2. Support acceleration, velocity and displacement measurement.
3. Different vibration frequency selection.
4. High sensitivity probe for accurate measurement. Provides long and short probe head, each one is suitable for different situation measurement.
5. Equipped with AC signal output interface.
6. Support low power indication function and auto power-off function.
7. Simple to use, the structure is compact, portable for carrying along with measurement.

Note:
1. Using short probe (S) can take measurement of vibration both in high (HI) and low (LO) frequency.
2. Long probe (L) is only suitable for low frequency measurement. When taking velocity measurement, also the frequency is over 1KHz, please replace with the short probe.
3. When switching acceleration (HI high frequency) measurement mode to velocity or displacement mode, the high frequency (HI) will be changed to low frequency (LO) automatically.ￂﾠ
4. High / low frequency selection is only available in acceleration measurement.
5. Due to manual measurement, the size may be slightly different. Thank you for your understanding.
6. Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.

Specifications:
Brand: SMART SENSOR
Model: AS63A
Color: Grey
Shell Material: ABS
Vibration Pickup: Piezoelectric ceramic accelerometer ( shear-type )
Measurement Range Of Acceleration: 0.1-199.9m/sￂﾲ peak
Measurement Range Of Velocity: 0.1-199.9mm/s rms
Measurement Range Of Displacement: 0.001-1.999mm p-p ( Velocity and displacement range is limited by acceleration 199.9m/sￂﾲ )
Measurement Accuracy: ￂﾱ10% + 2 digits
Measurement Frequency Range Of Acceleration: 10Hz-1KHz (LO), 1KHz-15KHz (HI)
Measurement Frequency Range Of Velocity: 10Hz-1KHz (LO)
Measurement Frequency Range Of Displacement: 10Hz-1KHz (LO)
Displays Update Cycle: 1 seconds
LCD Display: 3 1/2 digits display
Single Output: AC output 2V peak (display full scale), load impedance 10Kￎﾩ or more earphones can be connected
Power Supply: 9V battery ( not included )
Static Current: ￢ﾉﾤ20uA
Operating Current: ￢ﾉﾤ25mA
Auto Power-off Function: Turns off automatically after 60 seconds
LCD Backlight Function: 7 seconds
Operating Temperature Range: 0~40￢ﾄﾃ
Operating Humidity Range: 30~90% RH
Low Battery Indication: 6.9V ￂﾱ 0.2V
Storage Case Size: 23.5*18*5cm / 9.25*7.09*1.97inￂﾠ
Vibration Meter Size ( with Short Probe ): 6.7*3*18.3cm / 2.64*1.18*7.20inￂﾠ
Vibration Meter Weight: 147g / 5.19oz
Packing Size: 25.5*21*5.8cm / 10.03*8.27*2.28in
Gross Weight: 610g / 21.52oz

Package List:
1 * Vibration Meter ( without battery )
1 * Long Probe
1 * Short Probe ( Equipped on the main unit )
1 * Storage Case
1 * User' s Manual ( English )
