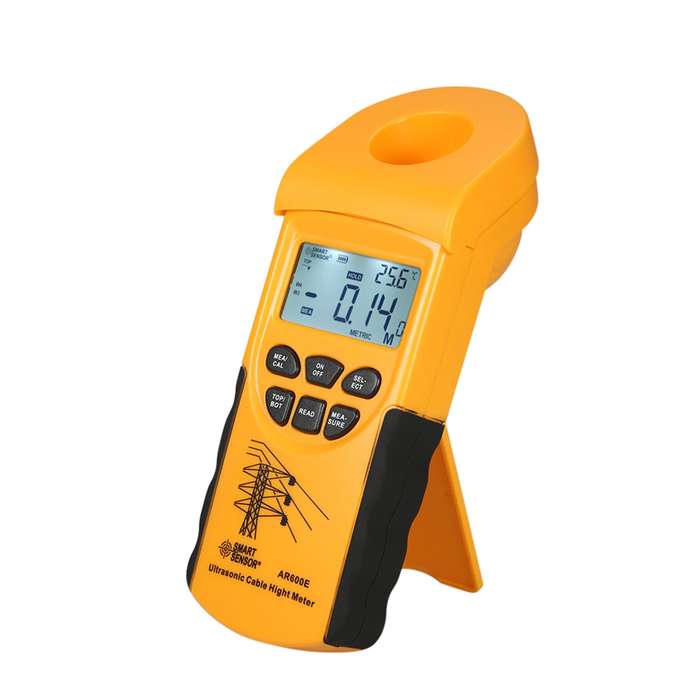

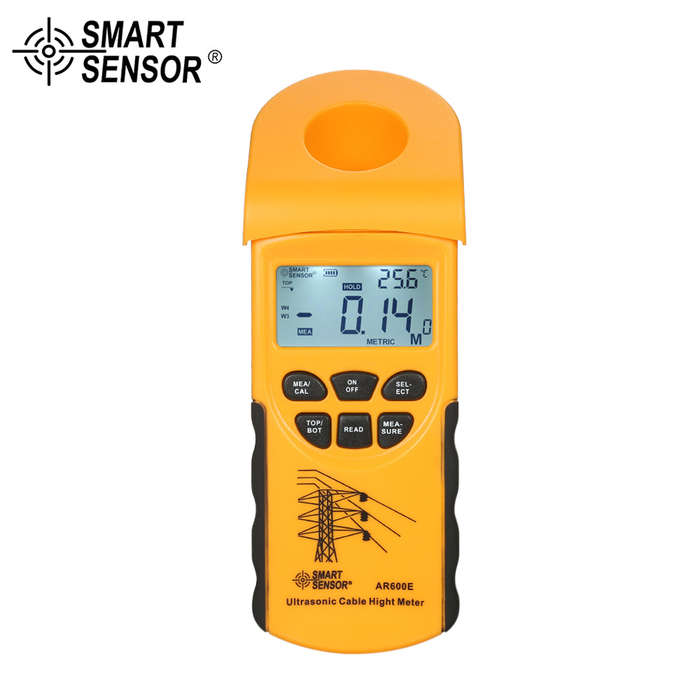

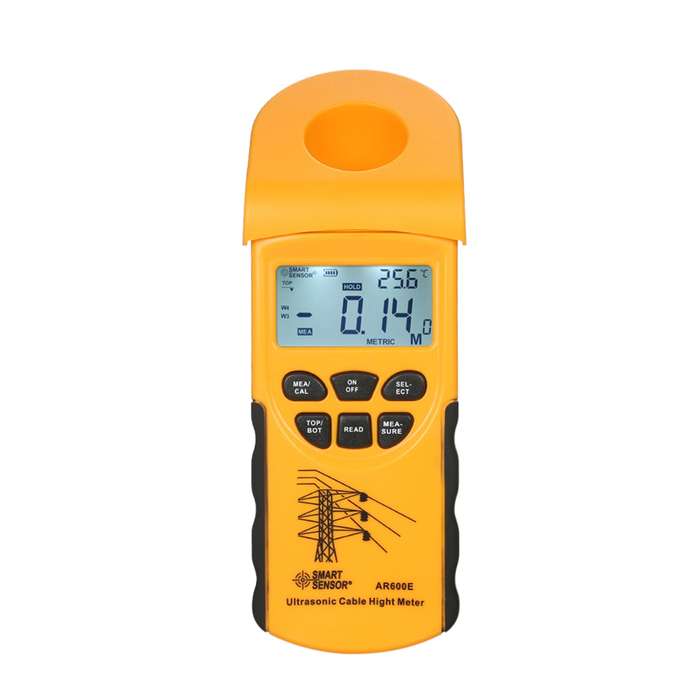

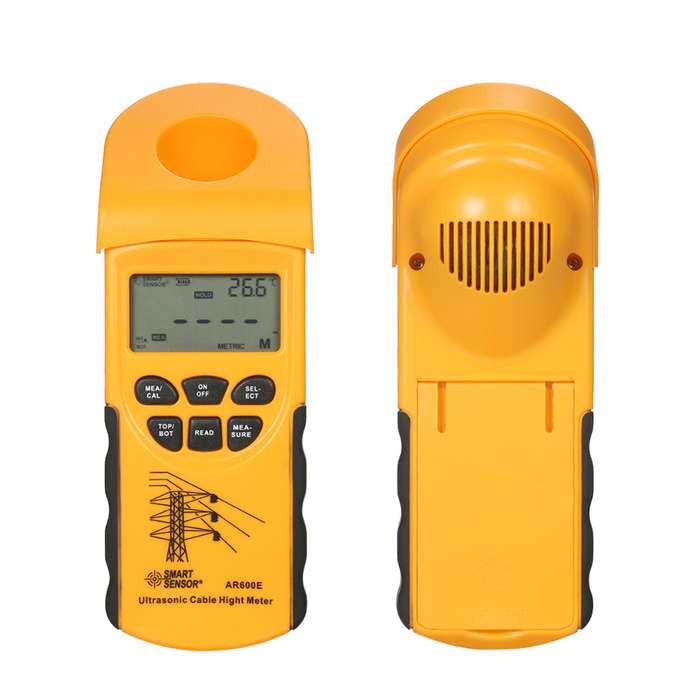

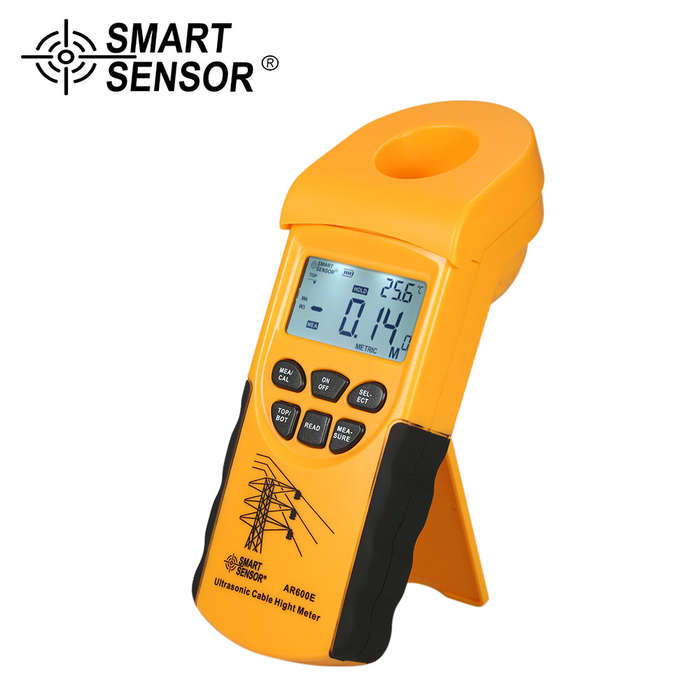

SMART SENSOR Professional Digital LCD Ultrasonic Cable Height Meter Handheld Height Cable Test

This professional digital cable height meter adopts ultrasonic principle to measure cable height with fast and accurate readings safely and quickly. It's widely used for measuring the distance between wire and wire in different uses of cables.

Features:
Wide cable height measurement range(25mm cable min): 3-23mm for measuring the height up to 6 cables together.
Wide horizontal measurement range: 3-18m, for measuring the distance between wire and wire.
User friendly and easy-to-operate Ultrasonic Cable Height Meter, applicable to different use of cables.
Adopts large measuring sensor for higher accuracy than other cable height meters and measuring the distance between objects.
Digital backlight LCD display, easy to aim at the measuring position and convenient to read in dark.ￂﾠ
The temperature compensation enables the meter compensates error automatically under -10￯ﾽﾞ40￢ﾄﾃ and ensures the measuring accuracy on differnet temperature conditions.
Can be used for depth measurement with the accessory bracket, (examples: an elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.
Can be widely used in electrical, overhead cables, tree branches, forestry, industrial, mining, elevator shafts, depth of wells, etc.

Specifications:
Brand Name: SMART SENSOR
Color: Yellow
Material: ABS Plastic
Display: LCD Backlight Display
Screen Size: 52 * 26mm / 2.05 * 1.02in
Measuring Range:
Range(25mm Cable min): 3 ￯ﾽﾞ 23m
Range(12mm Cable min): 3 ￯ﾽﾞ 15m
Range(5.5mm Cable min): 3 ￯ﾽﾞ 12m
Range(2.5mm Cable min): 3 ￯ﾽﾞ 10m
Horizontal Measuring Range: 3 ￯ﾽﾞ 18m
Resolution: ￂﾱ5mm(Range<10m), ￂﾱ10mm(Range>10m)
Accuracy: 0.5%ￂﾱ2dgtￂﾠ
Minimum Gap Between Wires: 150mm
BOT Mode: Measuring the Height of the Lowest 6 Cables ￢ﾈﾚ
TOP Mode: Measuring the Height of the Highest 6 Cables ￢ﾈﾚ
Auto Power Off: ￢ﾈﾚ
Backlight Display: ￢ﾈﾚ
Battery Indication: ￢ﾈﾚ
Imperial & Metric Units Transition: ￢ﾈﾚￂﾠ
Real Time Temperature Display: ￢ﾈﾚ
Auto Power Off Delay: 120s
Operating Temperature: -10￢ﾄﾃ￯ﾽﾞ40￢ﾄﾃ(14￢ﾄﾉ￯ﾽﾞ104￢ﾄﾉ)
Storage Temperature: -20￢ﾄﾃ￯ﾽﾞ60￢ﾄﾃ(-4￢ﾄﾉ￯ﾽﾞ140￢ﾄﾉ)
Operating Humidity: 10% to 95% RH, <80%RH Storage
Power Supply: 1 * 9V Battery (NOT Included)
Product Size: Approx. 70 * 65 * 200mm / 2.76 * 2.56 * 7.87in
Size of the Storage Box: 270 * 185 * 70mm / 10.63 * 7.28 * 2.76in
Product Weight: Approx. 182g / 6.42oz
Package Size: Approx. 29.5 * 19.5 * 7cm / 11.61 * 7.68 * 2.76in
Package Weight: Approx. 809g / 28.53oz

Package List:
1 * Ultrasonic Cable Height Meterￂﾠ
1 * Accessory Bracket(Horizontal Distance Measurement Only)ￂﾠ
1 * Black Bag
1 * Storage Box
1 * Use Manual (English)ￂﾠ
