Smart Switch 20A | 433Mhz 1Km Option | WiFi Tuya Smart Life
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Smart WiFi Switch 20A - 4.4KW, Tuya SmartLife
This High Current load Basic 20A Smart WIFI switch can be used to make any appliance or device that uses a mains input of 230V 'Smart'. Smart Home switch 20A or 4,400Watts Controller. Offers you full control of your pool pump or geyser etc. Configure the ON/OFF times of day and run times and days of the week all via the free Tuya SmartLife app.
No need for complicated wiring and timer controls - Simply, 'Wire, Configure -> Done'.
IMPORTANT NOTE: The Switch and Remote are sold separately due to the fact that 1 Remote can control up to 4x individual switches so you have the option to purchase a maximum of 4 switches per single 4Ch remote. Switch and/or Remote must be purchased separately as 2 items. you need only purchase 1 remote for every 4 switches.
To Buy Remote controls [click here]
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App installed on your Cell Phone (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
The Smart home switch 20A is a great way to make any appliance or device, 'Smart'.
'HOW TO' YOUTUBE VIDEO [click here]
What devices can presently be Smart Automated with Tuya - To View our Range of Smart Product? [click here]
Product Features
- Small and Compact design - high current. Wire, Configure and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal.
- NEW!! a Long Range - 1000m 433MHz remote control for this 30A switch is available [click here]
Typical Uses (but not limited too)
- Smart Switching of any high current device or appliance that requires current up to 30A (6600W)
- Pool Pump Smart Controller
- Geyser Smart Switch Controller

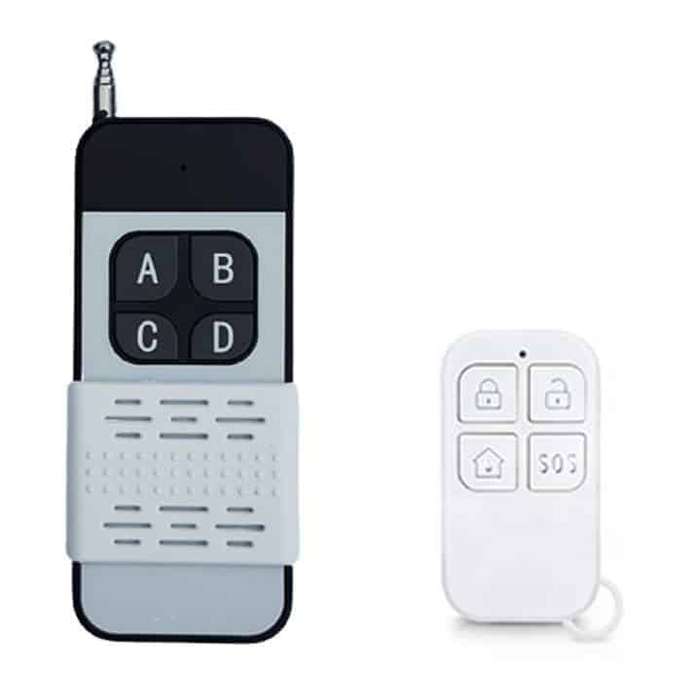

HOW TO Pair the 433Mhz remote

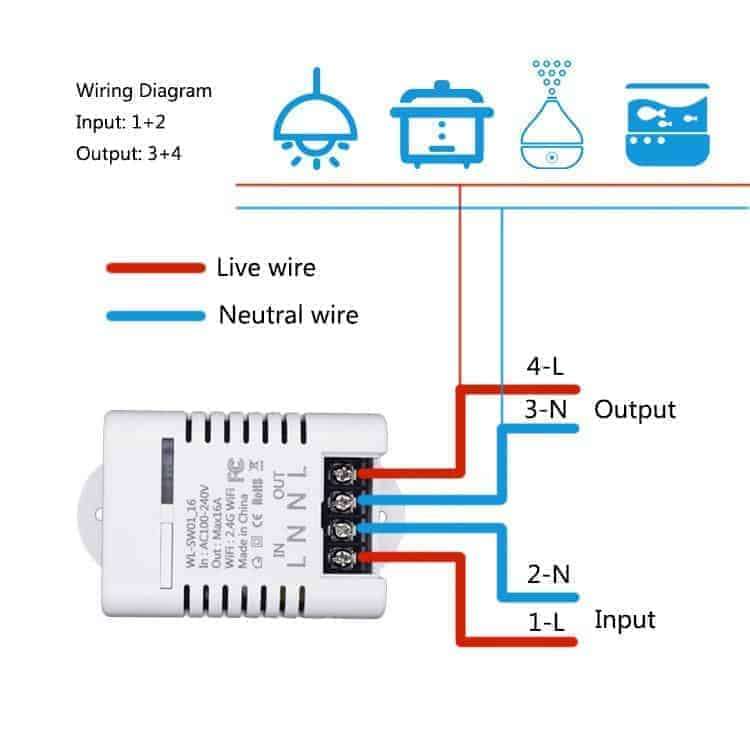

- Connect your input 230VAC and output to the 16A smart switch.
- Press the button on the remote (A, B, C or D) you wish to pair fast 4 times.
- The switch will now be paired to the remote as 'latching mode'. One click = ON another click =OFF.
- You can now also connect the switch to the Smart Life via your cell Phone as per above video.
- Repeat using other buttons to pair additional switches as required.
- To remove all remote programming fast push the relevant button 8 times.
Enclosures / Housing
- Need a IP66 Waterproof Enclosure or Housing for the switch? [click here]
- If required, remove the PCB from outer casing of the switch for a smaller footprint
Specifications
- Electrical: 85-265VAC
- Power Rating : 20A max, 4,400W
- Product dimensions96 x 58 x 35mm
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10C - 50C
- Free App: Tuya or Tuya Smart Home
- Remote Control Frequency: 433.92 Mhz
What's in the Box?
1x Tuya Smart Switch 20A
1x Instruction Manual
