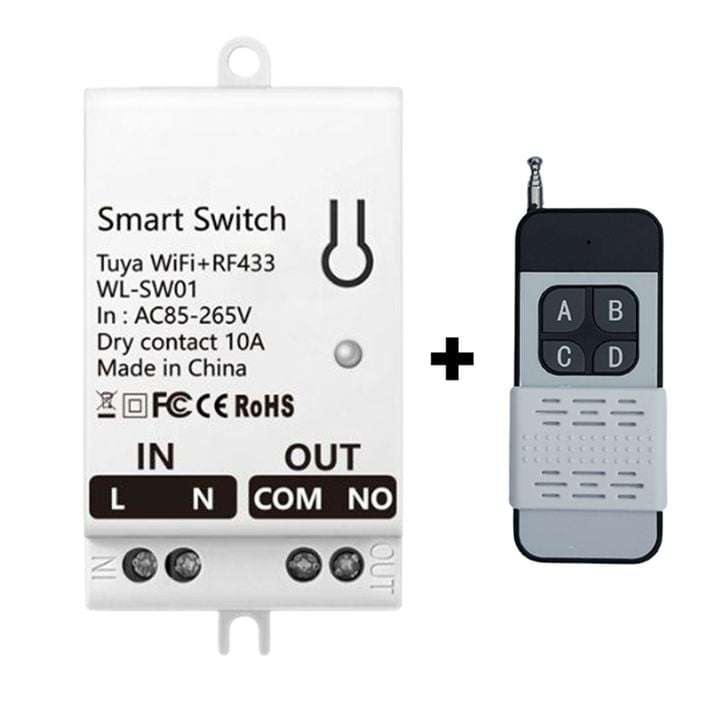

Smart Switch Basic 10A with 433Mhz Remote Control Option | 230V AC Input | Wi-Fi Tuya Smart Life

Smart Wi-Fi Input 85-265V AC Switch Tuya Smart Life. Output is a dry contact relay enabling the switching of any DC or AC up to a max load of 10A. Includes Remote control 433Mhz option (great for override functions).

This High Current Load Basic 10A Smart WIFI switch can be used to make any device or appliance that uses an input of 230V AC Smart. The output is via an NO (Normally Open) relay contact which offers a wide range of switchable voltages, 115VDC or 230VAC @ 10A.

Note this latest version switch offers a 'wider input voltage range' and replaces our previous 12VDC and 14-VDC switches.

• The Output wiring is separate from the Input, meaning this Switch does not switch its input voltage to the output buy switches via a normally open dry contact relay. OFF = Open circuit | ON = short circuit
• The 230VDC input is used to control the smart switch and activate the relay only - this voltage is not switched to the output.
• The Output is via NO (normally open) relay contact. Output switching voltage is 115V DC or 230V AC @ 10A.

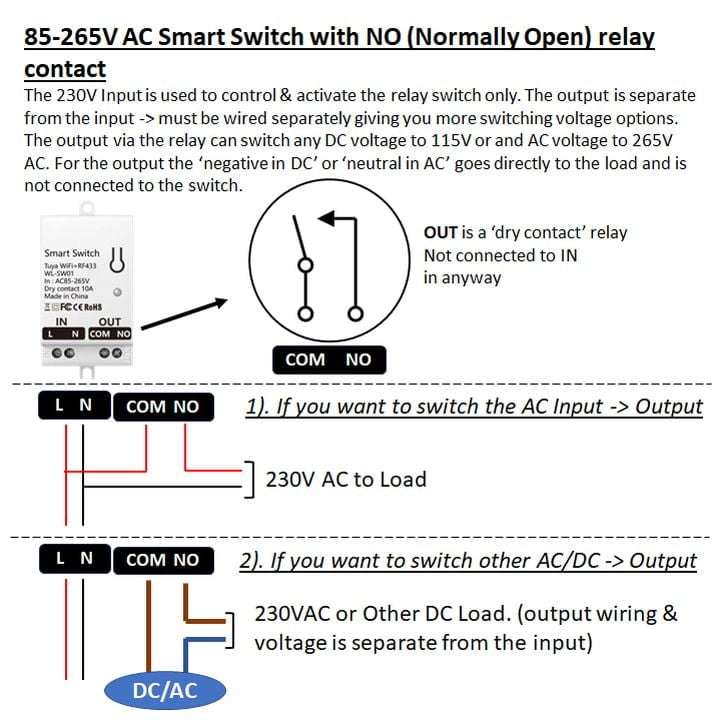

• Please see the installation diagram under alternate images.

Simply, 'Wire, Configure and Play'.

Home Automation is made Smart, Simple, and Affordable via the Tuya, Smart Life App installed on your Cell Phone (Android or IOS) offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home, and IFTTT.

IMPORTANT NOTE: This smart switch is also capable of switching via a long-range 433Mhz remote control (purchased separately). The Switch and Remote are sold separately since 1 Remote can control up to 4x individual switches, so you have the option to purchase a maximum of 4 switches per 1x 4Ch remote. Switch and/or Remote must be purchased separately as 2 items. You need only purchase 1 remote for every 4 switches.

To Buy Remote controls [click here]

The Smart Home Switch 10A is a great way to make any appliance or device, 'Smart'.

'HOW TO' YOUTUBE VIDEO [click here]

What devices can presently be Smart Automated with Tuya - To View our Range of Smart Products? [click here]

Product Features

• Small and Compact design - high current. Wire, Configure, and Play.
• Activation dates, days of the week, start time and duration can all be pre-configured via the Smart Life application giving you complete remote control and ON/Off overwrite.
• Supports Voice Commands and AI units such as Amazon Alexa Echo and Google Home solutions.
• All your Smart Devices are connected via a Single stable Platform been the Smart Life app from Tuya.
• The entire Smart Life system performance relies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of our range of WIFI Extender products [click here]

Enclosures / Housing

• Need an Enclosure or Housing for the switch? [click here]

Specifications

• Input Electrical: 85-2650V AC
• Output Electrical: any DC (max 115V) or AC (max 265V)
• Power Rating (output): 10A max, 2200W via NO (Normally Open) relay contact
• Product dimensions74 x 37 x 24 (L x W x H) in mm
• Material: White ABS (Fire-retardant)
• Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
• Operating Temperature: -10C - 50C

What is in the Box?

1x Tuya Smart AC Switch
1x Instruction Manual

FAQ's

• Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
• How do I get started? [click here]
• What devices can presently be Smart Automated? [click here]
