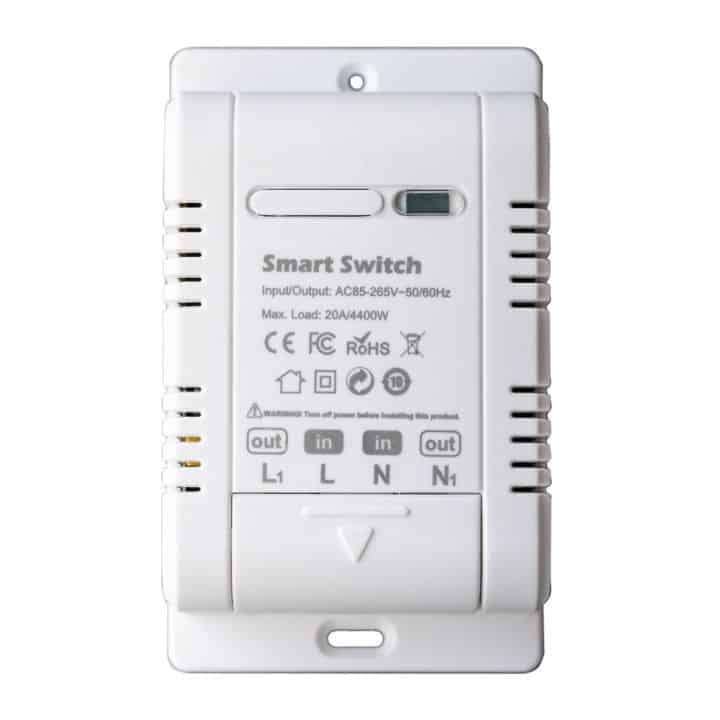

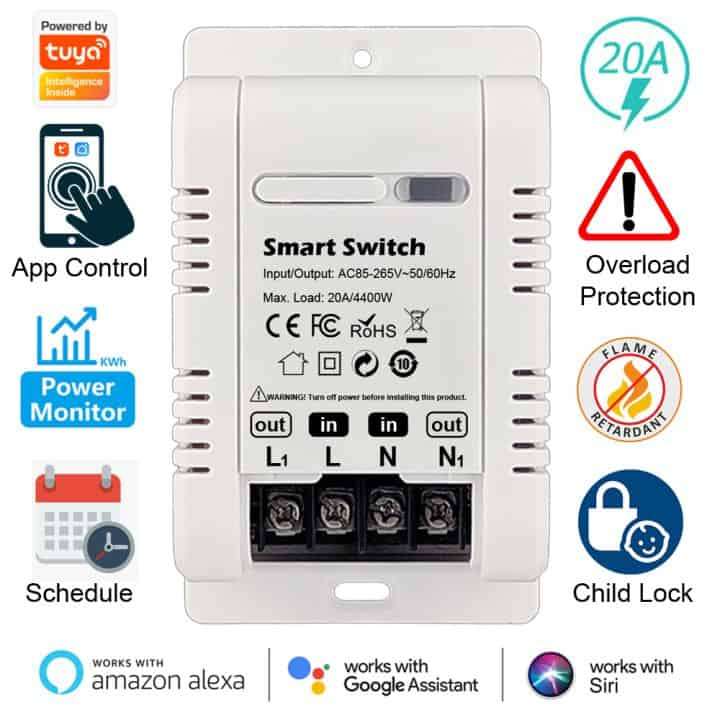

Smart WIFI switch 20A 4,4kW with Energy Monitor / Electrical Power Consumption.
- Current Overload Protection
- Voltage (Over / Under) protection
Used to make any device or appliance that uses a mains input of 230V Smart. Simply, 'Wire, Configure and Play'. Smart home switch 20A or 4,400 watts.
NOTICE! There is a miss printing on the enclosure of the 20A Energy Monitoring Switches and the Live and Neutral should be reversed. We apologize for the inconvenience and recommend our 30A energy monitoring switches as an alternative option.[Click Here for a visual example]
Typical Applications & Uses
Suitable for farms, small holdings, larger homes or any area where your WiFi range is limited.Irrigation, gate or access control, and alarm systems. The switch can be connected to a relay to switch even larger currents or even 3-phase pumps etc.
- Mounting the switch in a plastic waterproof housing [click here] is preferred. (a steel cabinet for example will reduce the range)
- Your standard garage door and gate remotes are most likely 'rolling code' remotes and are NOT compatible with this switch.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
'HOW TO' WIFI SMART YOUTUBE VIDEO [click here] - connect to your cell phone
Product Features
- Small and Compact design - high current. Wire, Configure and Play.
- Power consumption monitor - keep a check on your consumption - energy bills.
- Set a schedule with the multifunction timer: Countdown/Schedule/Circulate/Random/Inching. You can set 1 or more timers to make the boiler turn on/off automatically, or run for a while and then close automatically.
- The switch will be turned off automatically to keep safety when the one of following things happens:
a. Current overload protection >20A (including short circuit)
b. Voltage over or under protection >265V, or <85V - Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices are connected via a Single stable Platform the Smart Life app from Tuya.
- The entire SmartLife system performance relies on an 'adequate WiFi' (2.4GHz only) signal. We recommend the use of our range of WiFi Extender products [click here]
Enclosures / Housing
- Need an IP66 Waterproof Enclosure or Housing for the switch? [click here]
- If required, remove the PCB from the outer casing of the switch for a smaller footprint
Specifications
- Material: ABS Plastic
- Input: AC 85-265V~50/60Hz
- Maximum Load: 20A/4400W
- Internet Connection: IEEE 802.11 b/g/n 2.4GHz
- APP: Tuya Smart & Smart Life
- Certification: CE/FCC/RoHS
- Item Dimensions: 56*93*30mm
- Weight: 80g
What's in the Box?
- 1x Smart Switch Basic 20A
- 1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
