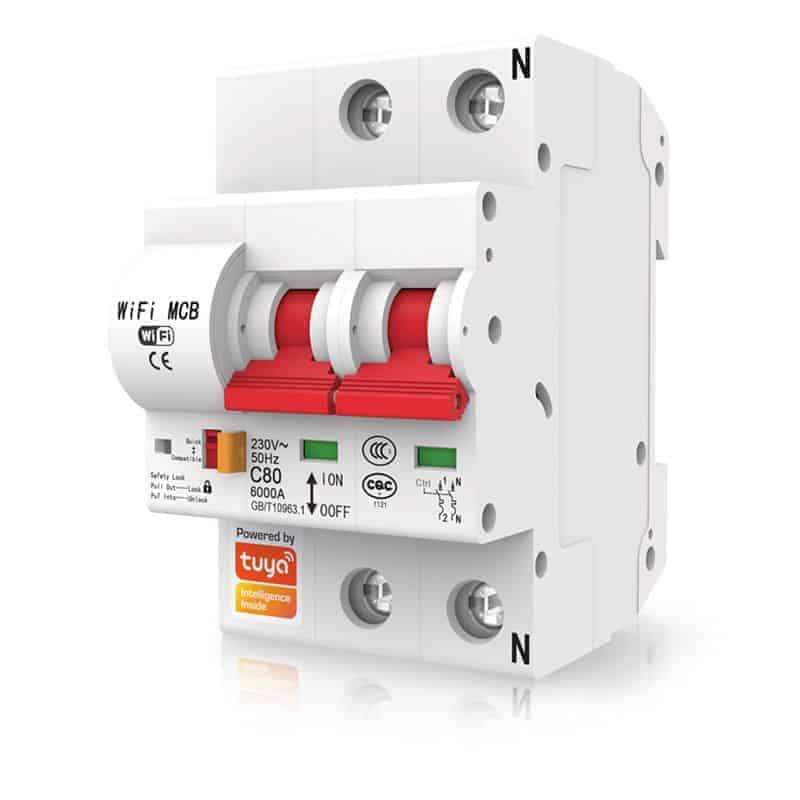

Smart Switch Circuit Breaker, 100A WiFi Wireless Smart 2 Pole Isolator. MCB can be used to make any home, office or factory 230V Smart. Control any high current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch. Available in the following ratings (all 2P 230VAC) 16A, 20A,
25A, 32A, 40A,
63A, 80A,
100A (this product) & 125A. if we don't have your requirement in stock please contact us, 14 day lead time -
[email protected] Simply, '*Wire, Configure and Play'.
Note: - This MCB supports DIN rail Mounting. For Samite Breaker connections you will need an adaptor [click here].
- This MCB does NOT support Power Consumption / Energy Monitoring. ( if this feature is required see our range of 'VAW breakers' or smart consumption switch [click here])
- Can be configured via the App's 'automation feature' to disconnect when certain smart sensors or detectors are activated such as Smoke, CO2, flood or intrusion etc.
- *qualified Electrician is required.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT. Great way to make any appliance or device, 'Smart'.
Product Features - Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal.
Typical Uses (but not limited too)
- Smart Switching of any home or a specific section of factory / office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications |
| Name | 2P Tuya Smart MCB Switch WIFI Circuit Breaker |
| Model | HT-MCB-2P |
| APP | TuyaSmart/SmartLife |
| Input Voltage | AC 230V |
| Output Voltage | AC 230V |
| Number of poles | 2 (two) |
| Rated current | 100A |
| Rated short-circuit breaking capacity | lcn=6kA lcs=6kA |
| Applicable places | 1P usually for home & shop etc use |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | 25C to +65C |
| Humidity | 5%--95% non-condensing |

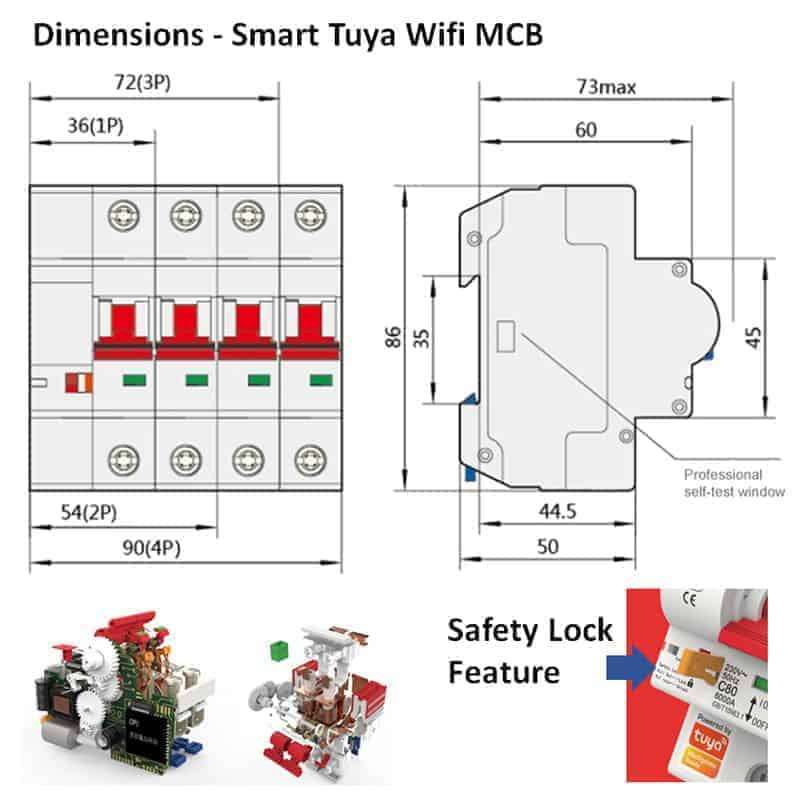

| Dimension | Box:10.5*12*11.6cm |
| Weight | 0.36kg |
What's in the Box? 1x Smart Switch 2 Pole Circuit Isolator 1x Instruction Manual
