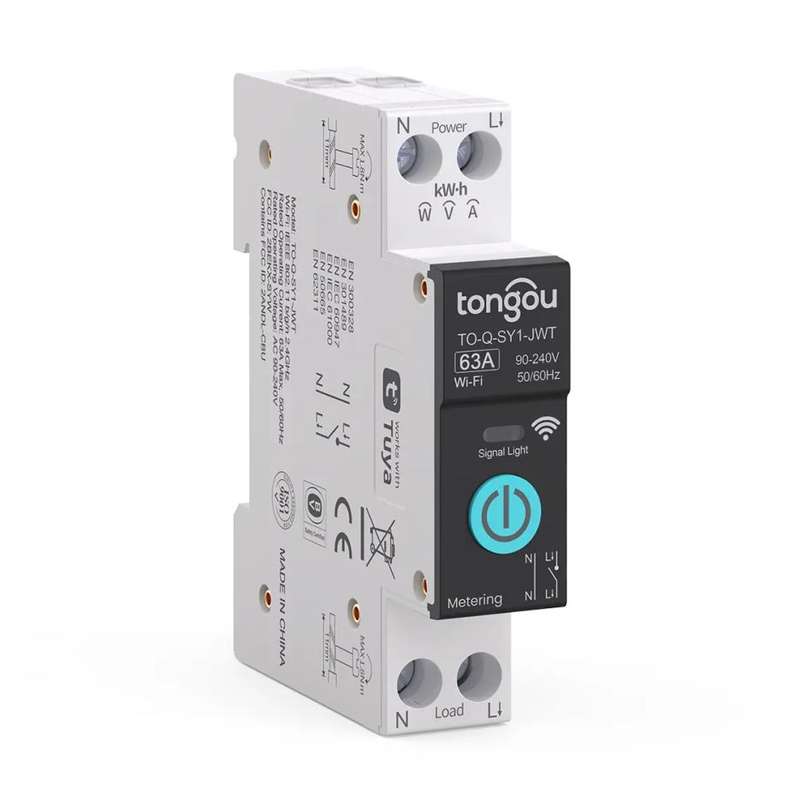

Smart Switch DIN rail mount 1 Pole Breaker 63A with Power metering (electrical energy consumption monitor). Breaker Switch can be used to make any home, office or factory 230V Smart. Control any high-current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch.
Simply, '*Wire, Configure and Play'.
Note:
- This MCB supports DIN rail Mounting. For Samite Breaker connections you will need an adaptor [click here].
- Can be configured via the App's 'automation feature' to disconnect when certain smart sensors or detectors are activated such as Smoke, CO2, flood or intrusion etc.
- *A qualified Electrician is required.

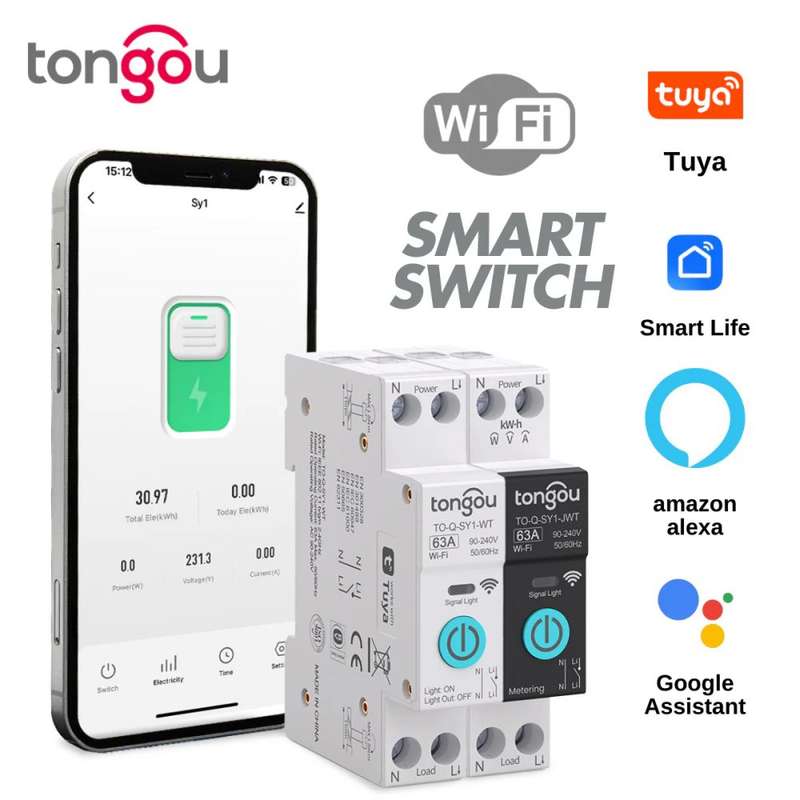

Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- It supports voice commands and AI units such as Amazon Alexa Echo and Google Home solutions.
- All your Smart Devices are connected via a Single stable Platform the Smart Life app from Tuya.
- The entire SmartLife system performance relies on an 'adequate WIFI' (2.4GHz only) signal.
- Note the N line does NOT switch only the L1 (not an isolator).
Typical Uses (but not limited to)
- Smart Switching of any home or a specific section of a factory/office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications
- Component type: 1 Pole Smart switch
- Mounting: DIN rail 35mm
- Accuracy - voltage, current power and active power: class 2.0
- Protocol: WiFi (2.412~2.484GHz); channel 1-14 IEEE 802.11b/g/n
- Phase line terminal: 1P 230V~ (N-L1switched)
- Max. current: 63A
- Power Meter: Yes
Downloads
- Specification Sheet [click here]
- User Manual [click here]
What's in the Box?
- 1x Smart Switch 1 Pole 63A
- 1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home IFTTT and more...
