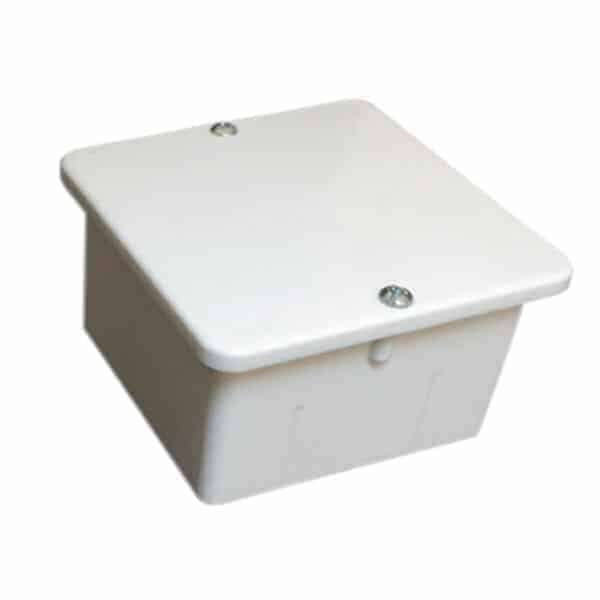

This IP65 Waterproof Switch Enclosure can be used with our 10A Basic Switch, 20A & 20A Basic Switch, Pool Pump Switch or the single, dual quad relay / Inching Relay PC Board. The environmental rating of the enclosure is IP66.
Note: This enclosure does NOT contain any pre-made holes for compression glands grommets etc.
Suitable for use with our 20A & 20A smart switches. In certain cases, you may need to remove the switch from its OEM casing.
Specification for IP65 Waterproof Case:
- Environmental rating: IP65
- Body Material: ABS V0
- Transparent Cover Material: PC V0
- Dimensions: 106 x 106 x 60mm (L x W x H)
- Weight: 125 g
Typical Uses (but not limited to)
- Connecting electrical wires and cables in walls and ceilings.
- They are protecting electrical connections in exposed areas like gardens or patios.
- Allow connection wiring for machinery and equipment in factories and warehouses.
- Protecting electrical connections in harsh environments with dust, moisture, or water splashes.
Understanding the enclosure ratings
The rating of an enclosure refers to its Ingress Protection. This system, defined by the international standard IEC 60529, classifies the degree of protection provided by enclosures against the intrusion of dust, water, and other foreign objects.
An IP rating is typically represented by two digits:
- First Digit: indicates the level of protection against solid objects like dust or dirt.
- Second Digit: Indicates the level of protection against water.
Note: the higher the number, the better protection it is in its environment.

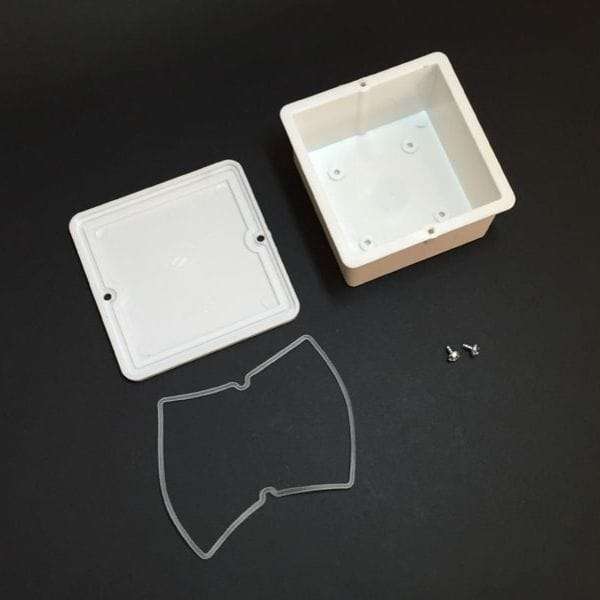

What's in the box?
- 1 x IP65 Waterproof Switch Enclosure
- 2 x Lid Screws
