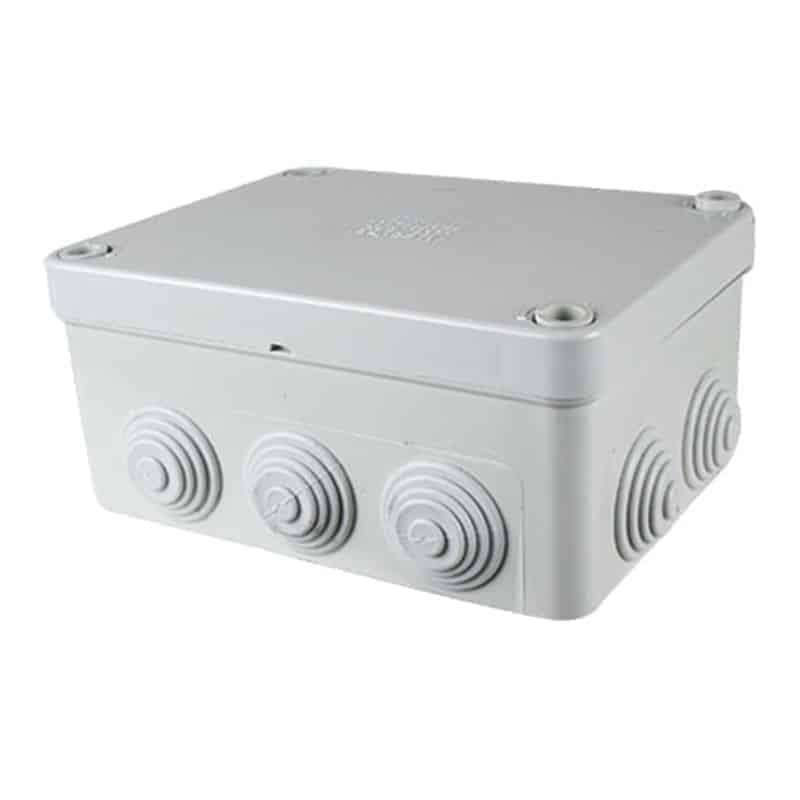

Large IP55 Waterproof Enclosure
A high-quality splashproof enclosure that can be used with our 10A Basic Switch, 16A Basic Switch, Pool Pump Switch or the single, dual or quad relay / Inching Relay PC Board. The environmental rating of the enclosure is IP56.
Note: This enclosure contains 10x stepped 'break out' points for electrical entry glands. (confirm your desired location and the size of your glands before removing).
Specification for IP56 Waterproof Case: (see additional Images for more detail)
- Environmental rating: IP56 - rainproof suitable for outdoor use
- Body Material: ABS V0
- Transparent Cover Material: PC V0
- Dimensions: 150 x 110 x 70 (L x W x H in mm)
- Weight: 175.0 g
Typical Uses (but not limited to)
- Connecting electrical wires and cables in walls and ceilings.
- They are protecting electrical connections in exposed areas like gardens or patios.
- Allow connection wiring for machinery and equipment in factories and warehouses.
- Protecting electrical connections in harsh environments with dust, moisture, or water splashes.
Overall, IP55 Waterproof enclosures are versatile and can be used in a wide range of applications to protect electrical connections and ensure safe and reliable operation.
Understanding the enclosure ratings
The rating of an enclosure refers to its Ingress Protection. This system, defined by the international standard IEC 60529, classifies the degree of protection provided by enclosures against the intrusion of dust, water, and other foreign objects.
An IP rating is typically represented by two digits:
- First Digit: indicates the level of protection against solid objects like dust or dirt.
- Second Digit: Indicates the level of protection against water.
Note: the higher the number, the better protection it is in its environment.
What's in the box?
- 1x Large IP55 Waterproof Enclosure
- 4x Lids Screws
