Smart Temperature & Humidity Switch 16A | Energy Monitor + 433Mhz | WiFi Tuya Smart Life
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

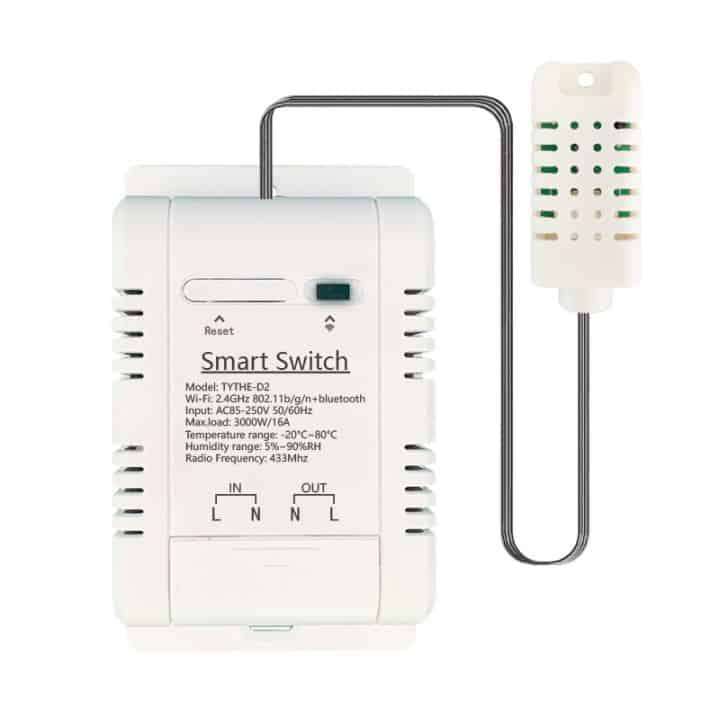

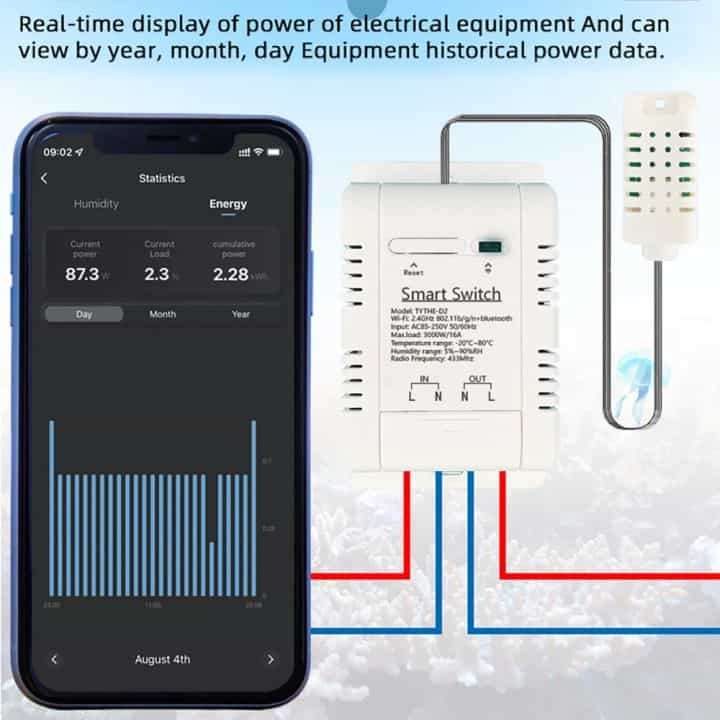

This Smart WiFi Temperature and Humidity Switch 16A 3Kw. Includes energy / power consumption monitor and remote control 433Mhz feature.

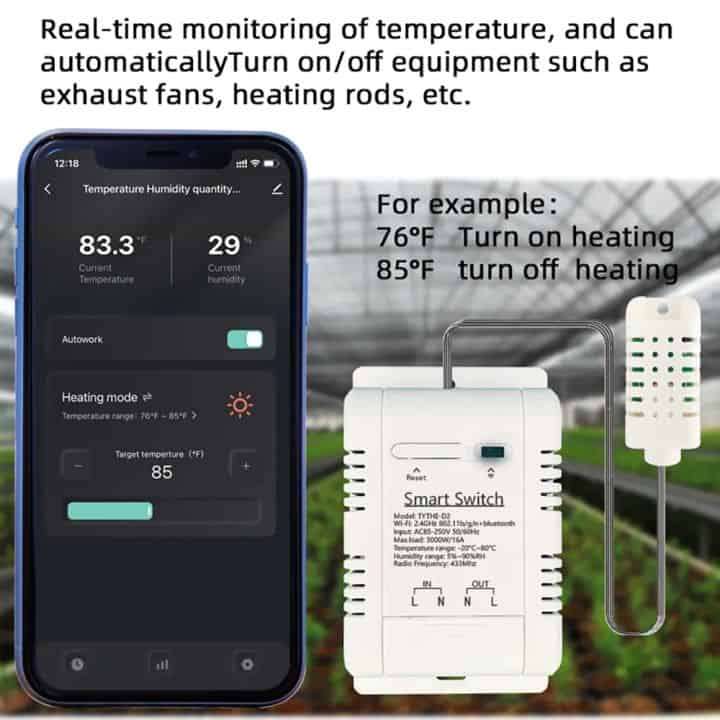

Smart Switch any device ON or OFF based on the high/low temperature or humidity readings. Perfect for Grow Tents and any environment where full automated control required.
Based on either of the two readings you can automated certain functions like switching ON and OFF such as Fans, Irrigation mist sprinkler systems when values go above or below certain pre-defined values. Optional: you can also have an additional manual control via a 4Ch remote.

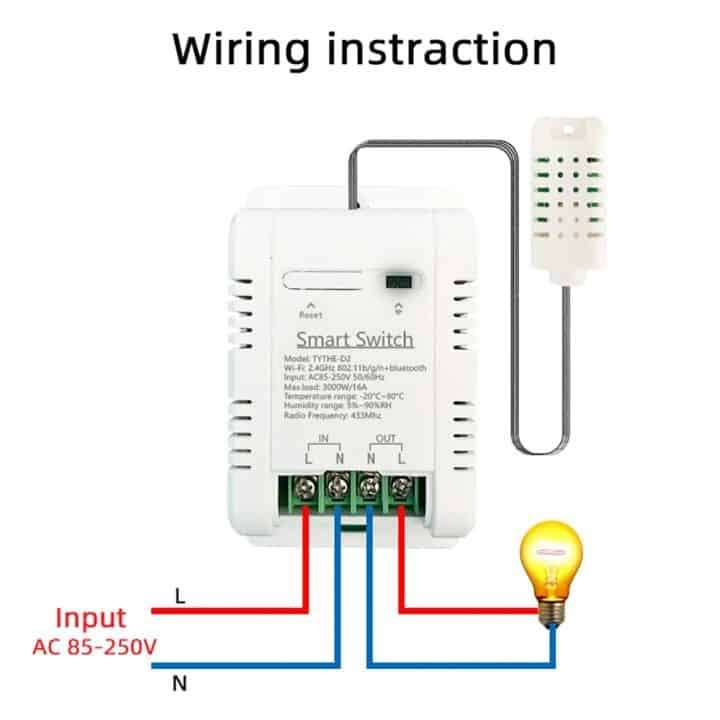

Simply, 'Wire, Configure and Play'.
Typical Applications:

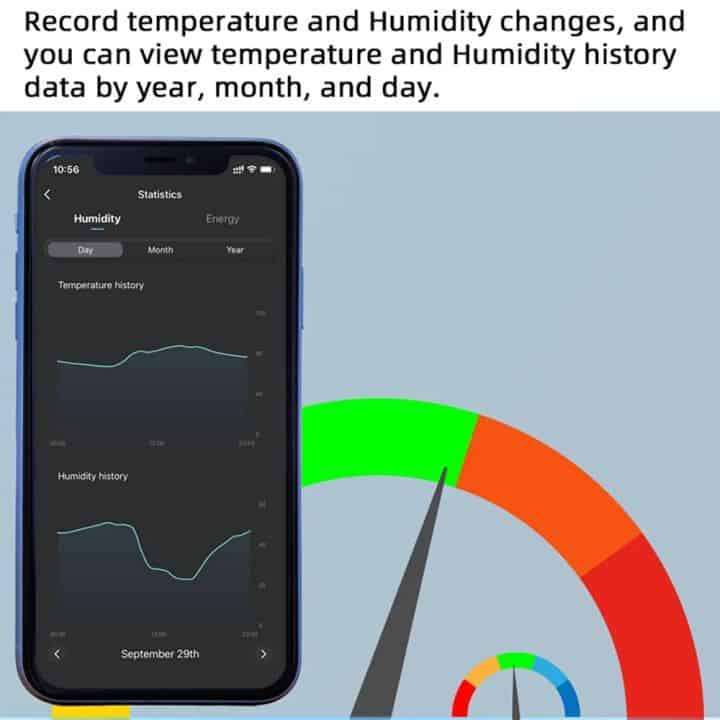

- Monitor temperature and automate certain ON/OFF actions such as Grow lamps etc.
- Monitor humidity and automate certain ON/OFF actions such as extractor fans, mist irrigation etc.

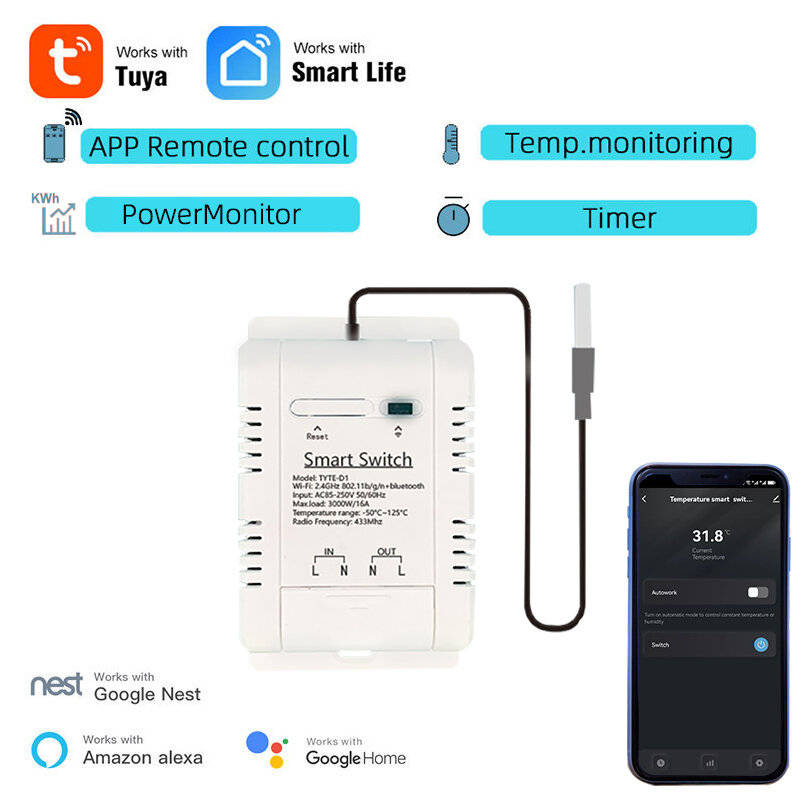

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Typical Applications & Uses
Suitable for farms, small holdings, larger homes or any area where your WiFi range is limited. irrigation, gate or access control, alarm systems. The switch can be connected to a relay to switch even larger currents or even 3 phase pumps etc.
- Mount the switch in a plastic waterproof housing [click here] is preferred. (a steel cabinet for example will reduce the range)
- Your standard garage door and gate remotes are most likely 'rolling code' remotes and are NOT compatible with this switch.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
'HOW TO' WIFI SMART YOUTUBE VIDEO [click here] - connect to your cell phone

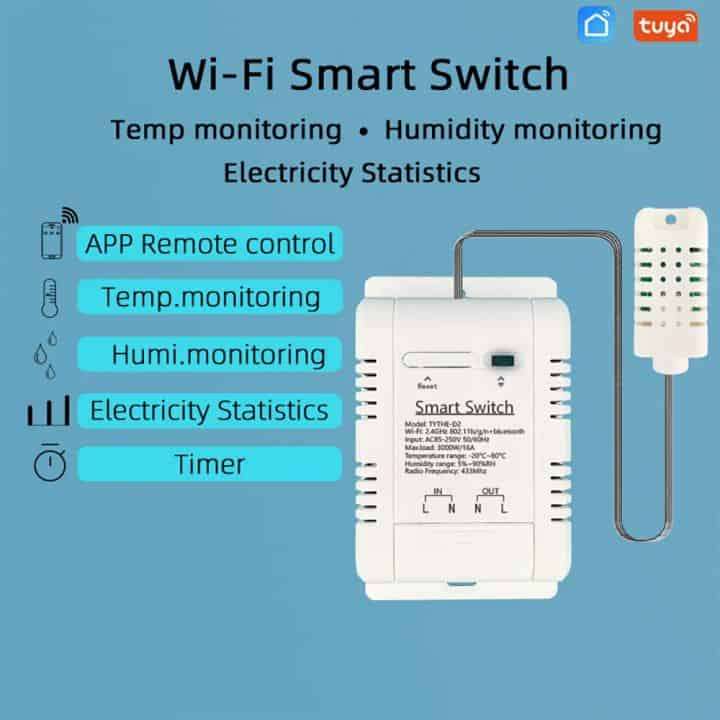

Product Features
- Small and Compact design - high current. Wire, Configure and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of our range WIFI Extender products [click here]
Enclosures / Housing
- Need an Enclosure, Housing or Junction Box for this switch
- Note: Only enclosures marked 'medium' are suitable for use with this switch [click here]
- If required, remove the PCB from outer casing of the switch for a smaller footprint
Specifications
- Electrical: 110-250V AC
- Power Rating : 20A max, 4400W
- Product dimensions96 x 58 x 35mm
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10C — 50C
How to pair a 433Mhz Remote Control
- Press and hold the button on the switch till the lights flashes blue (+/-3 seconds)
- Now press the required button on the remote - unit should now be paired.
What's in the Box?
1x Tuya Smart Switch 16A
1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
