This Smart WiFi Thermostat Controller (16A rating) can be used for new installation or as an upgrade to replace any existing unit. Simply, 'Wire, Configure and Play'.
Available with White or Black face plates.
Typical Applications:
- Power Saving: add Automated scheduling - turn down your heater or underfloor heating temperature during less used hours and increase an hour before bedtime. Full control via your Mobile Smart Phone via the Tuya SmartLife app.
- Adjust your underfloor heating from the comfort of your bed or simply adjust it prior to leaving work
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Features:
- WiFi and voice technology.
- High quality electric heating thermostat, with touch buttons for simple operation.
- LCD display with backlight to display data clearly, easy to read even in the dark.
- Weekly programmable and 5+2 six periods programmable to maximize comfort and economy, very flexible.
- 1°C accuracy, keeping the comfortable temperature within the level you set.
- Data memory function when power is off; thermostat locking function.
- Acrylic face plate to protect the LCD screen from collision and avoid the finger scratch.
- High-efficiency and energy-saving thermostat to help lower home energy costs.
- Made of flame retardant material, safe and reliable for daily use.
Specifications:
Type: White WIFI version (Black face plate available upon requested)
Shell Material: PC + ABS
Accuracy: 0.5/1
Display: LCD with Backlight
Power Supply: AC 95 ~ 240V, 50 ~ 60Hz
Current Load: 16A
Timing Error: <1%
Set Temp. Range: 1 ~ 70
Room Temp. Range: 5 ~ 99
Ambient Temperature: 0 ~ 45
Ambient Humidity: 5 ~ 95% RH (Non Condensing)
Storage Temperature: -5 ~ 55
Wire Terminals: Wire 2 x 1.5mm² or 1 x 2.5mm²
Button: Capacitive Touch Button
Features: Backlight, LCD Touch Screen, Electric Floor Heating, WiFi Voice, Temperature Controller
Size (outer dimensions): 82mm x 82mm x 14mm
Hole Saw cut-out: requires a 60mm hole saw (thermostat diameter is 58mm)
Download the Manual [click here]

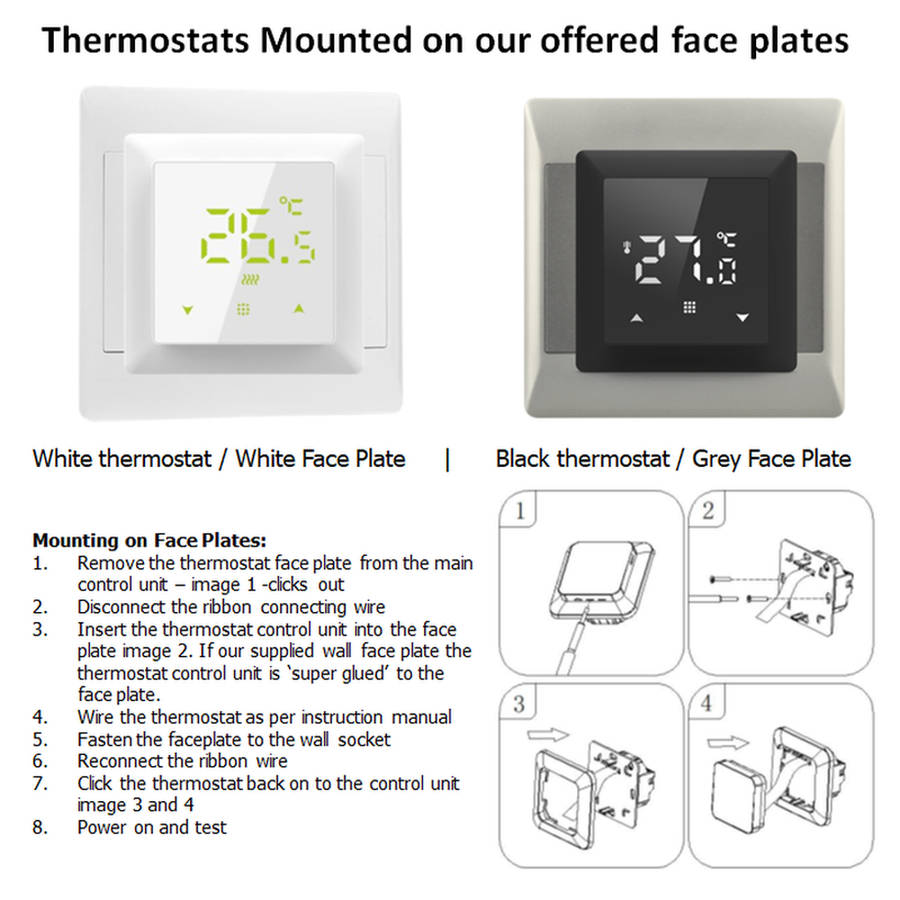

Installation, Mounting thermostat to a wall Plate:
- We now offer mounting face plates (4x4) with the required centre hole already drilled in both white and grey/brown. These will ensure ease of installation.
- The mounting face plates must be purchased separately. To buy [click here]

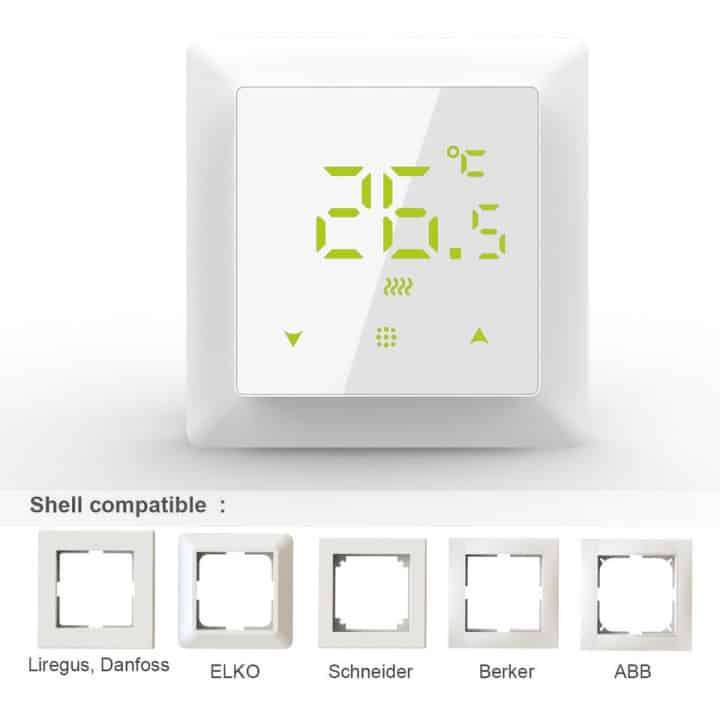

- Should you require our own matching face plate you can simply purchase a 4x4 (120x120) blank from your local hardware and cut out a hole 60mm in the centre to fit this thermostat. See alternate images for options
What's in the Box?
1 x Thermostat
1 x 2.5m External Sensor
2 x Mounting Screws
1 x User Manual(English)
