This Smart Thermostat Temperature Control (16A rating) can be used for new installation or as an upgrade to replace any existing unit. Simply, 'Wire, Configure and Play'.
Typical Applications
- Power Saving: add Automated scheduling - turn down your heater or underfloor heating temperature during less used hours and increase it an hour before bedtime. Full control via your Mobile Smart Phone via the Tuya SmartLife app.
- Adjust your underfloor heating from the comfort of your bed or simply adjust it before leaving work.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- WiFi and voice technology.
- High-quality electric heating thermostat, with touch buttons for simple operation.
- LCD with backlight to display data clearly, easy to read even in the dark.
- Weekly programmable and 5+2 six periods programmable to maximize comfort and economy, very flexible.
- 1°C accuracy, keeping the comfortable temperature within the level you set.
- Data memory function when power is off; thermostat locking function.
- Acrylic face plate to protect the LCD screen from collision and avoid finger scratches.
- High-efficiency and energy-saving thermostat to help lower home energy costs.
- Made of flame-retardant material, safe and reliable for daily use.
Specifications
- Type: White WIFI version (Black face plate available upon request)
- Shell Material: PC + ABS
- Accuracy: 0.5/1
- Display: LCD with Backlight
- Power Supply: AC 95 ~ 240V, 50 ~ 60Hz
- Current Load: 16A
- Timing Error: <1%
- Set Temp. Range: 5 ~ 35
- Room Temp. Range: 5 ~ 99
- Ambient Temperature: 0 ~ 45
- Ambient Humidity: 5 ~ 95% RH (Non-Condensing)
- Storage Temperature: -5 ~ 55

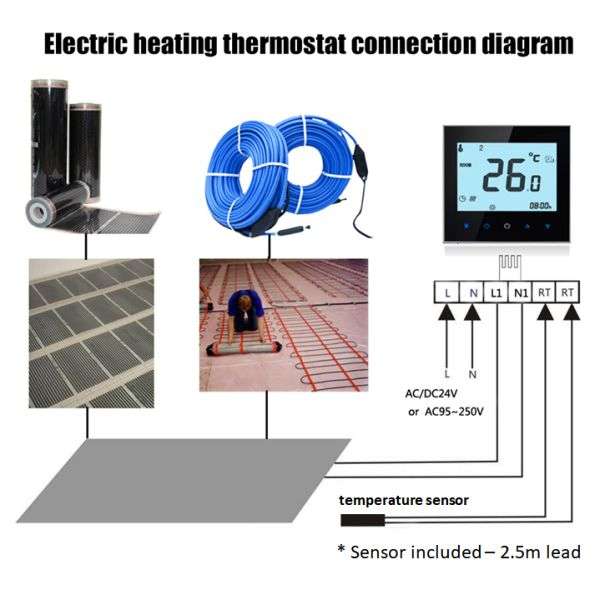

- Wire Terminals: Wire 2 x 1.5mm² or 1 x 2.5mm²
- Button: Capacitive Touch Button
- Features: Backlight, LCD Touch Screen, Electric Floor Heating, WiFi Voice, Temperature Controller
- Size: 8.6cm x 8.6cm x 1.32cm/3.38 x 3.38 x 0.52 (Approx.)

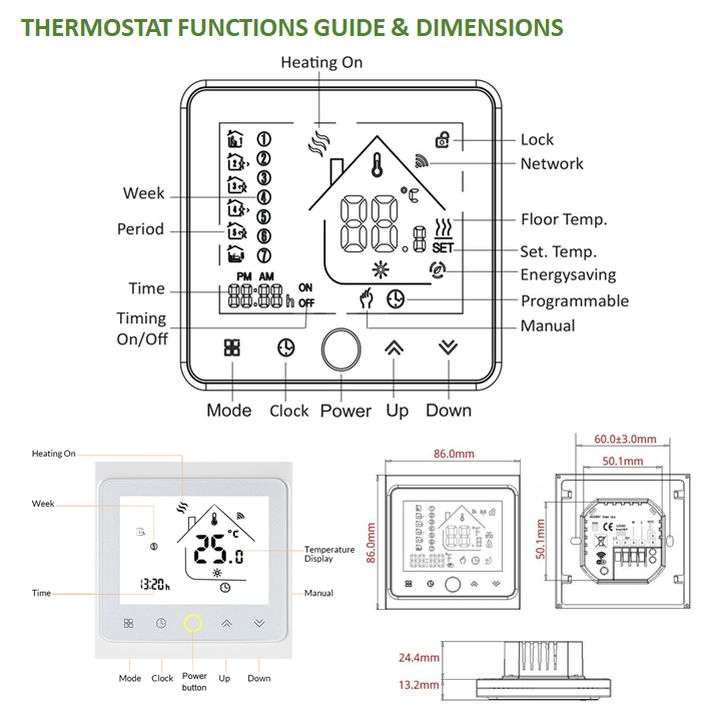

Installation to a wall Plate: see additional images for dimensions
Purchase a 4x4 (120x120) blank wall plate from your local hardware and cut out a hole 50 x 50mm in the centre to fit this thermostat.
What's in the Box?
- 1 x Smart Thermostat Temperature Control
- 1 x 2.5m External Sensor
- 2 x Mounting Screws
- 1 x User Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, IFTTT and more.
