Smart Wall Touch Socket | Energy meter | Tuya Smart Life

Smart Wall Touch Socket | Energy meter | Tuya Smart Life

The Smart Wall Touch Socket is a high-performance smart WiFi plug frequently utilized in the Tuya ecosystem. It is primarily designed to convert standard appliances into smart devices, allowing for remote control, scheduling, and energy management.

Product features

• High power handling: rated for 20A, making it suitable for high-wattage appliances like heaters, pumps, or kettles that standard 10A smart plugs might struggle with.
• Energy monitoring: equipped with real-time electricity statistics. You can monitor voltage, current, and total kilowatt-hour (kWh) consumption through the app, which is helpful for identifying energy-hungry appliances.
• 4-in-1 ports: the device is equipped with 4 different ports:
  • Normal South African 3-pin
  • 2-pin
  • Type-C port
  • USB port
• Touch panel: features a high-quality tempered glass panel that is scratch-resistant and easy to clean.
• Backlight indicator: has an LED backlight to help you locate the switch in the dark. The light typically changes color or intensity to indicate whether the switch is on or off.
• Manual control: operates with a light tap, similar to a smartphone screen.
• Remote access: connects to your home Wi-Fi (2.4GHz), allowing you to turn lights on or off from anywhere using the smart app.
• Voice control: Compatible with platforms like Amazon Alexa and Google Assistant.

Specifications

• Model: MG-SA01WP-XX
• Input voltage: 100240VAC, 50/60Hz
• Maximum load capacity: 20A
• QC+PD output: 5VDC @ 3A
• Wireless protocol: WiFi (2.4GHz)
• Material: PC/ABS Flame Retardant (V0 Rating)

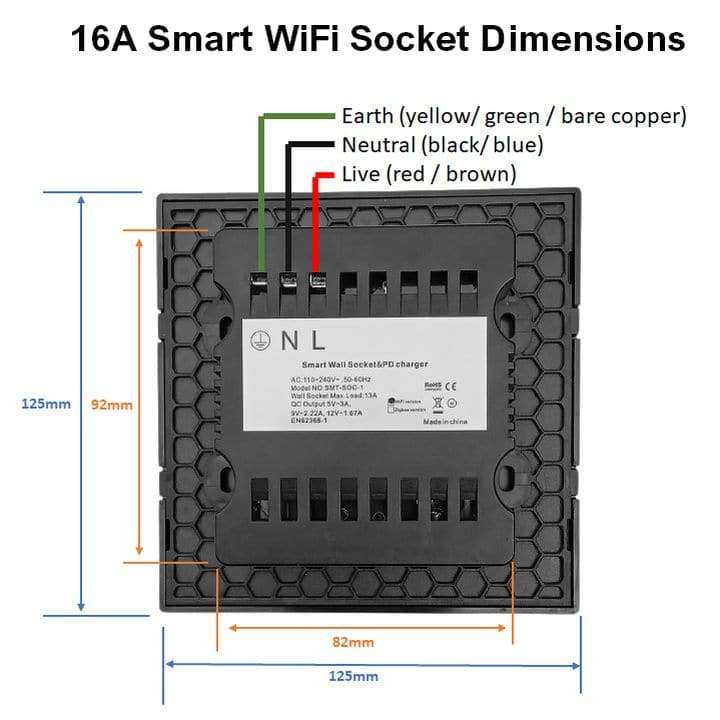

• Dimensions: 125 x 125 x 41 (L x W x H in mm)

Available in white or black.

If you need a frame for the smart plug [click here]

Typical applications (not limited to)

• Homes
• Offices
• Rental properties

What is in the box?

• 1 x Smart Wall Touch Socket
• 1 x screw set
• 1 x Instruction manual

FAQ's

• How long is the warranty period for the device? [click here]
• How do I get started? [click here]
• What devices can presently be Smart Automated? [click here]

Home Automation made Smart, Simple, and Affordable via the Tuya, Smart Life App (Android or IOS),  offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, and IFTTT, and more
