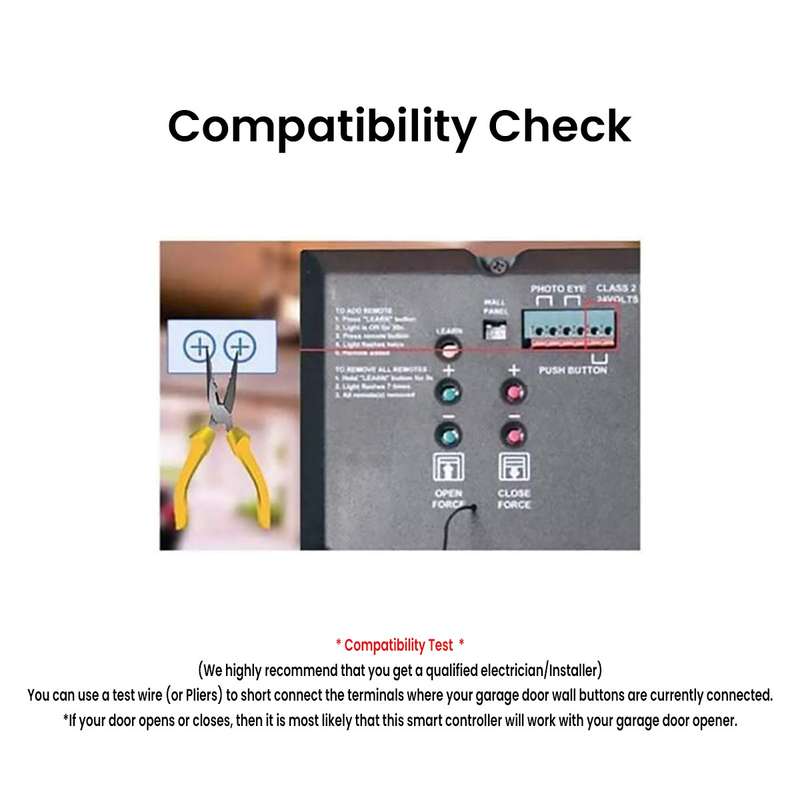

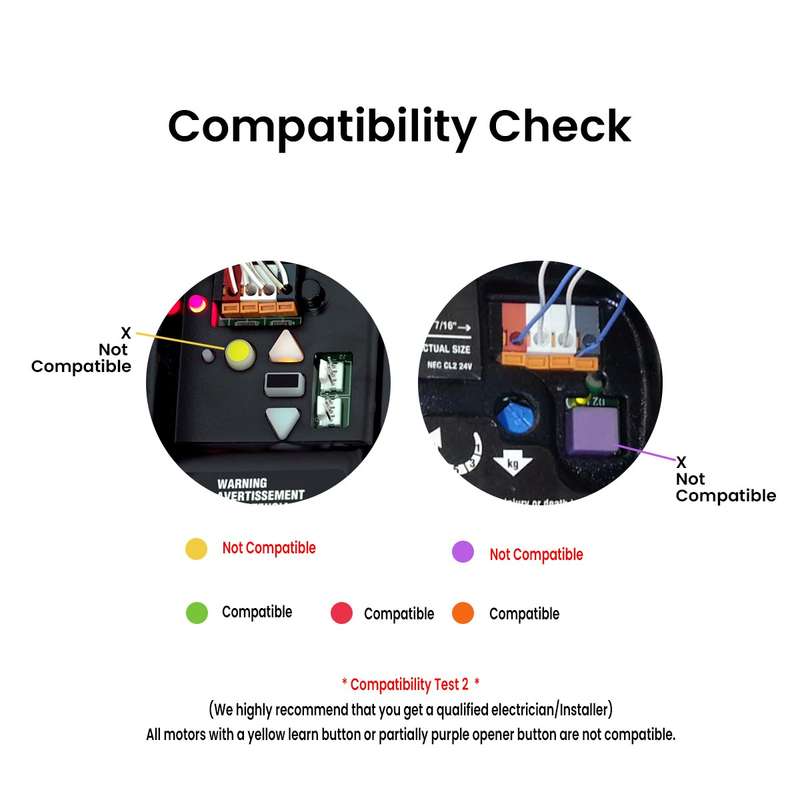

* Compatibility Test (We highly recommend that you get a qualified electrician/Installer)
* You can use a test wire (or Pliers) to short connect the terminals where your garage door wall buttons are currently connected.
* If your door opens or closes, then it is most likely that this smart controller will work with your garage door opener.
Features
You can authorize multiple people to access your garage.
Remote monitoring: Open or close the door through the APP. Check the garage door open or closed state in real time.
Easy to use: Instantly control the garage door by tapping the TUYA or SMART LIFE app on your smartphone. Simply connect the opener to the 2.4G WiFi network.
Voice control: You can activate your garage door opener by placing a voice command on your Alexa or Google Assistant device.
Wide compatibility: You can only use one controller per garage door opener. Compatible with most general garage door openers.
Timer function: You can set schedules to open and close your garage door.
Countdown function: You can set the countdown time to close or open the garage door.
When the garage door is opened or closed, you will receive a notification.

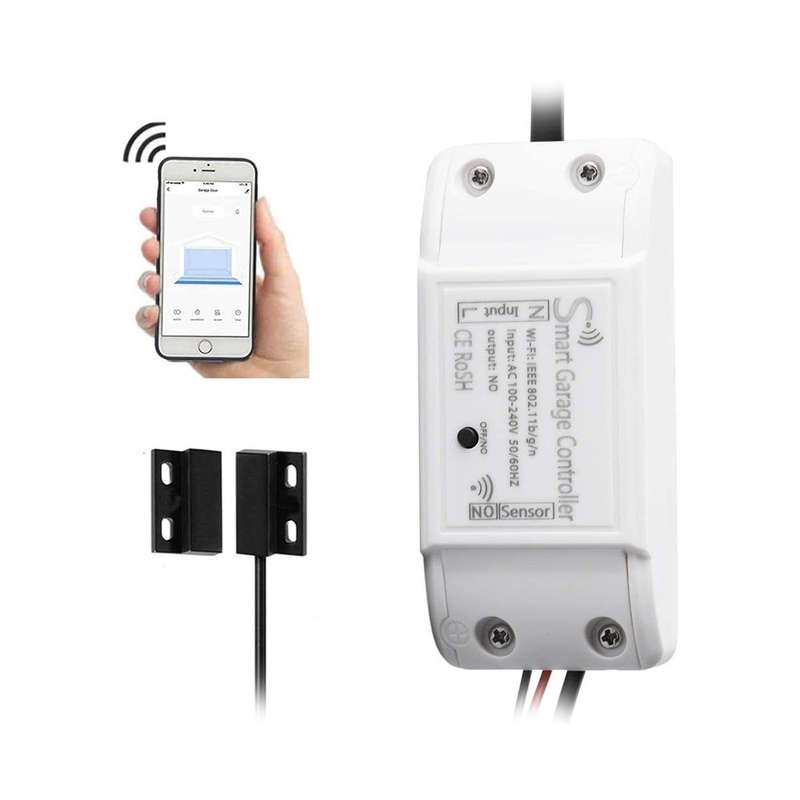

Specifications
- Material: ABS
- Color: white + black
- Current: 16A
- Input: AC 100-240V 50/60HZ
- MAX Power: 3000W
- Working frequency: 50Hz
- Operating temperature: -10~50℃
- WiFi standard: 2.4GHz 802.11 b/g/n
- Terminal platform: for Android
- Controller size: 87 x 40 x 23 mm / 3.4 x 1.6 x 0.9 inches
What's in the Box

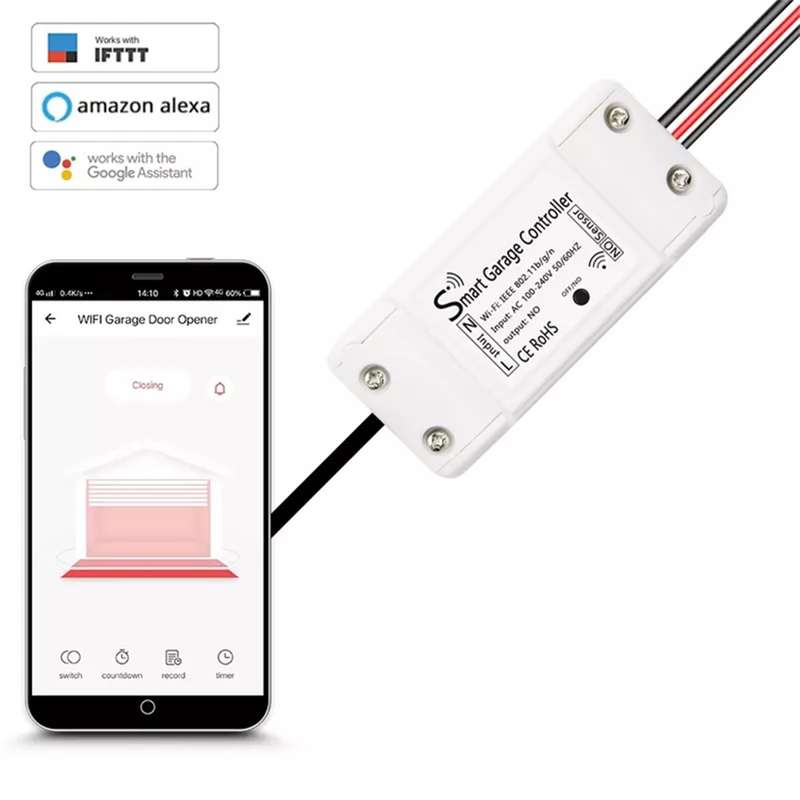

- Smart Garage Controller
- 3M Stickers
- Ties
- Line Holders
- Brackets
- Screws
- Instructions for Setting Up the Gate Controller

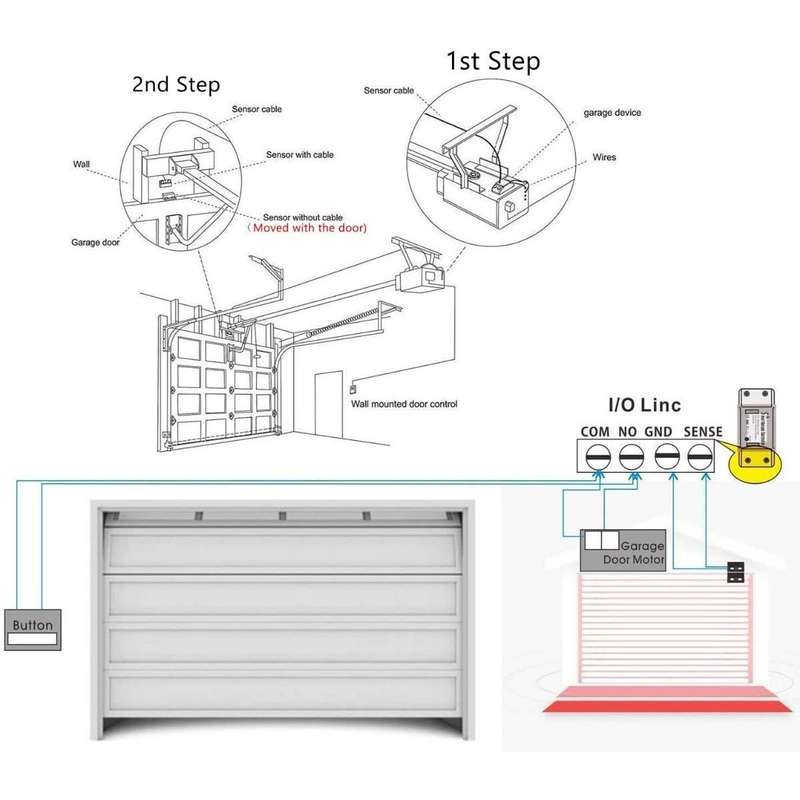

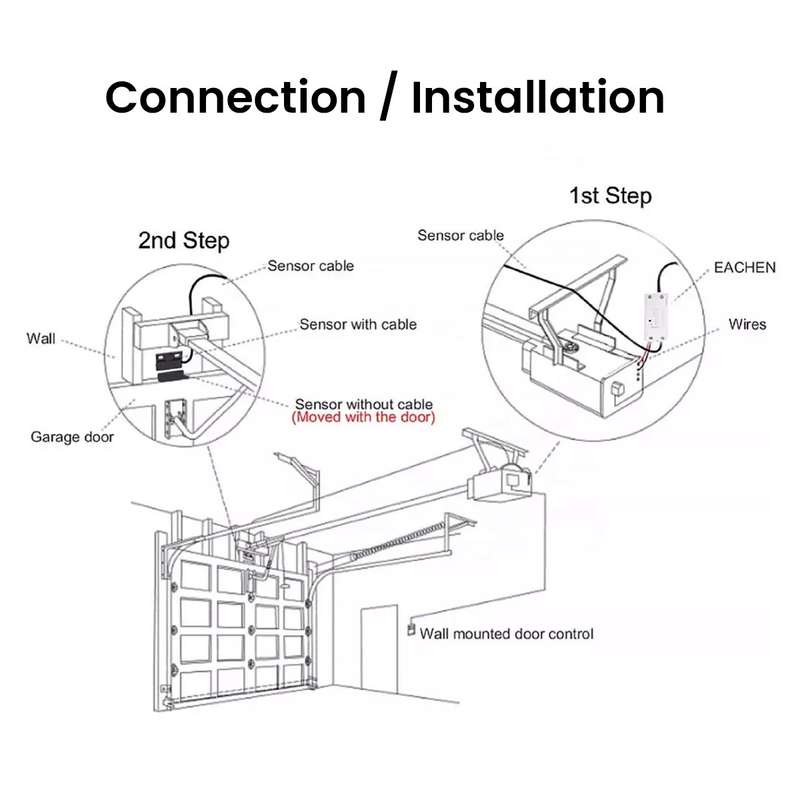

Installation (Wiring):

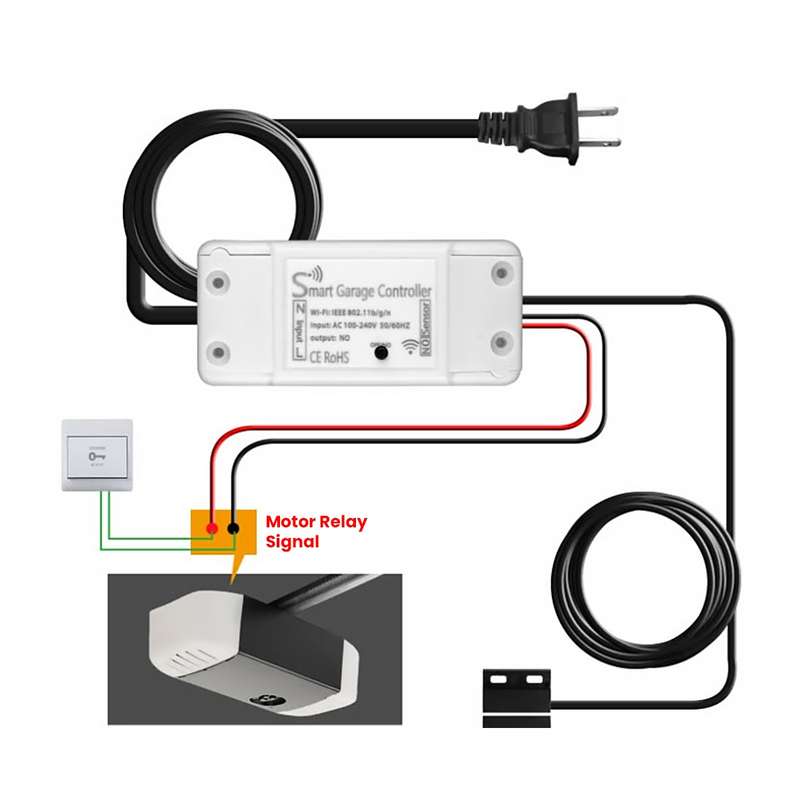

1. Connect the Red & Black wires to your garage door opener.
2. Put each end to the same terminals as the wall button wires are terminated.

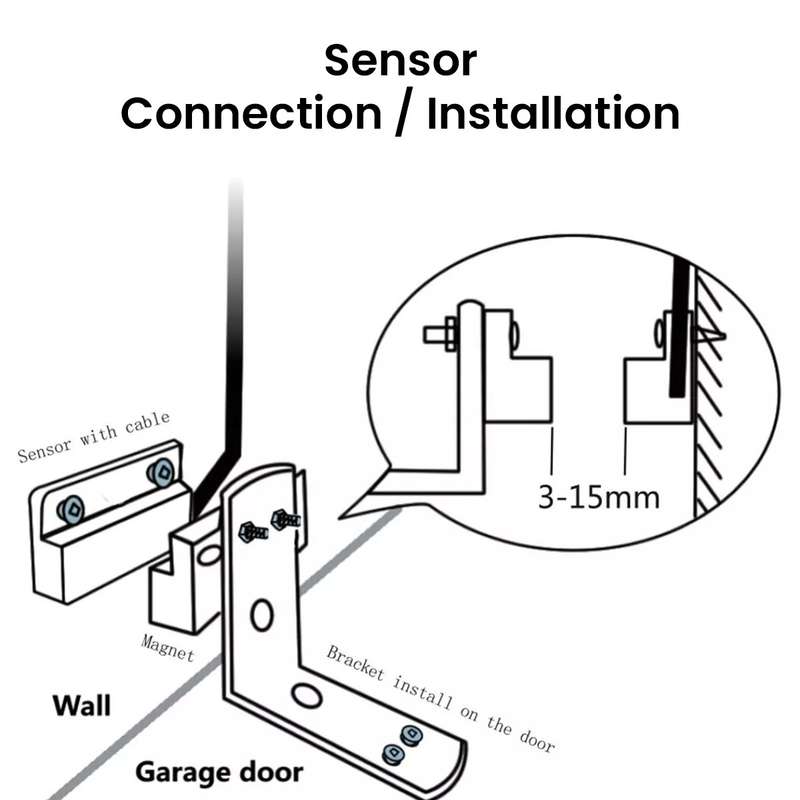

3. Connect the sensor and install it on the garage door
General Settings
1. Press the Black button for about 5 seconds. "10 SECONDS RESET" Make sure your device light is flashing quickly.
2. Launch the "Smart Life" or "Tuay Smart" APP. Press the icon '+' on the top right corner.
3. Select the "All Devices", then select the "Wi-Fi Connector" type.
4. Tap "Confirm indicator rapidly blink."
5. Input the correct 2.4G Wi-Fi passwords. Then, tap confirm.
6. It will auto-connect with the device. wait until the connection is successful.
Settings(AP MODE）
1. Press the Black button for about 5 seconds. Make sure your device light is flashing slowly.
2. Press the icon '+' on the top right corner. Select "others". Then, select the "Wi-Fi Connector" type.
3. Go to the upper right corner. Then, press "AP MODE".
4. Press"Confirm indicator slowly blink". Then select your home's 2.4GHz networks, and enter Wi-Fi password.
5. Then the screen will show "connect your mobile phone to the device's hotspot". Press "Go To Connect" and it will connect. The screen will jump to your phone's settings wifi connection, so enter the phone's "WI-FI".
6. You will see the There will be a connection option： "Smartlife-XXX". Select it. In the tab that your WIFI is already connected to, it will state, "Smartlife-XXX" on it. Now return to "Smartlife The APP" screen.
