Smart WiFi Irrigation Controller | 8 Zone | Tuya Smart Life

Smart 8Ch Wifi Irrigation Controller, Tuya SmartLife

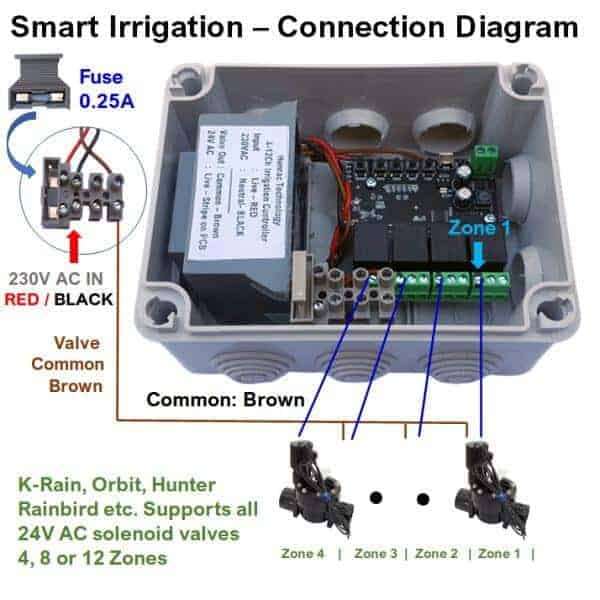

\nIf you can image it, you can probably 'Smart Switch' it with our versatile 1, 2 or 4 Channel Smart Relay boards. These units are especially well suited to creating 'smart irrigation systems' whether you are buying a completely new system or just upgrading the controllers of your existing system to be Smart.\n\nThis unit is 'pre-wired' within an IP56 enclosure and contains 2x 4Ch Smart relay board and 24V AC transformer (excludes solenoid valves). Our DIY 'smart irrigation system' is completely scalable with the options to select 1, 2 or 4 channel relay relay boards for any number watering zones. - please refer to the additional images for a connection diagram and recommended optional item descriptions.\n\nEnables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply ﾑWire, Configure and Playﾒ. Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT.\n\nWith so many smart home platforms available, WHY TUYAﾠ [click here]. Great way to make any appliance or device ﾑSmartﾒ.\n\nThis offer is 'prewired' and includes\n

\n
1. \n
   \n
   1. Enclosure IP55 'splash & dustproof'ﾠ Dimensions: 150L x 110W x 70H mm. For outdoor use, mount inside anﾠ IP68 enclosure
   \n
   2. Transformer 24VAC 1A.
   \n
   3. 1 x 4 channel smart relay board, for more details [click here]ﾠ
   \n
   4. Fused Terminal Block for 230V Input / Spare 0.25A fuse included (taped to the lid)
   \n
   \n
\n

\nOptional recommended items\n\nOutdoor UV protected CAT5e Cable (100m or 305m rolls) to connect the controller to the solenoid valves [click here]\n

\n
\n

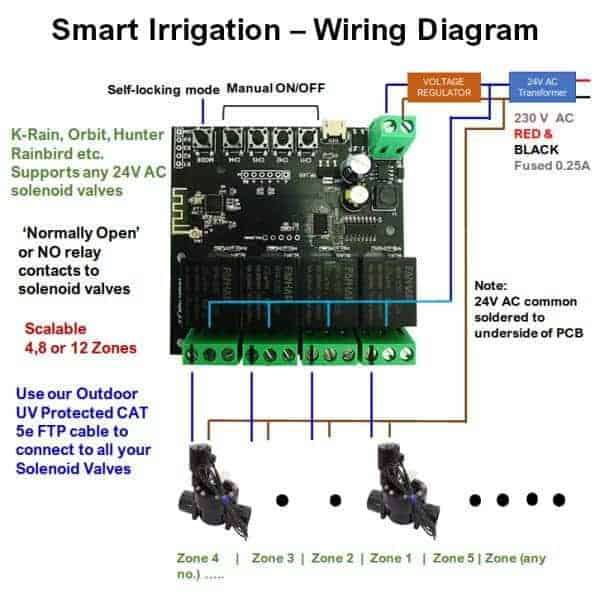

\nProduct Features (refer to additional images for connection & wiring diagrams)\n

\n
• 2 Working Modes: selectable via the mode button to switch\n
  \n
  • \n
    \n
    • self-locking mode: turn devices ON or OFF instantly.
    \n
    • ﾠinching mode: toggle devices ON then OFF by tapping the PWR button on you phone
    \n
    \n
  \n
  \n
\n
• Manual Switching option via 1-4Ch Buttons on the PCB
\n
• Switching voltage range: 230VAC or DC , 10A
\n
• Wide PCB Input voltage range: 7-32VDC, 5-24VAC or micro USB 5VDC
\n
• LED indication
\n
• Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control)Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
\n
• Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
\n
• All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
\n

\nAvailable in 1Ch, 2Ch and 4 Ch variants. You can combine boards to obtain any number of smart switching contacts\n\nTypical Uses\n

\n
• Unlimited Applications the 10A relay can be wired to either NC (normal closed) or NO (normal open) to switch any voltage up to AC250V/10A or DC30V/10A.
\n

\nSpecifications\n

\n
• \n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

  Work Voltage	7-32VDC or 5-24VAC Terminal Block or Micro USB Port 5VDC
  Relay Opening time	0.7 seconds
  Relay Load	AC250V/10A or DC30V/10A
  Switch mode	Switch/Mobile phone
  WiFi Standards	IEEE 802.11 b/n/g 2.4G Hz
  Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
  Operation Temp.	ﾖ10ﾰC to +60ﾰC
  Humidity	5%--95% non-condensing
  Dimension	PCBA: 6.7*4.1*1.7cm
  Weight	0.05kg

  \n
\n

\n \n\nOptional Items (recommended)\n\nNeed a suitable enclosure or housing ? [click here]\n

FAQﾒs

\n

\n
• Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
\n
• How do I get started? [click here]
\n
• What devices can presently be Smart Automated? [click here]
\n
• Facebook [click here] | Twitter [click here] | Instagram [click here] | Youtube [click here]
\n

\nHome Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), ﾠoffering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home and IFTTT and more....\n
