Smart WiFi Irrigation Controller | 8 Zone | Tuya Smart Life

Smart 8Ch WiFi Irrigation Controller, Tuya SmartLife

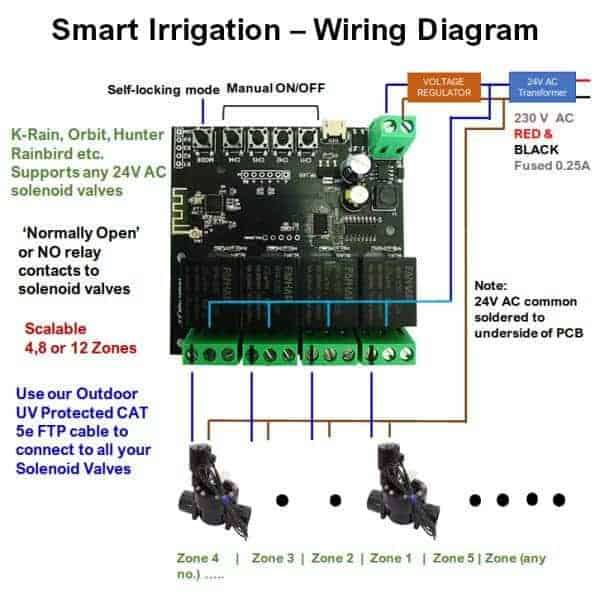

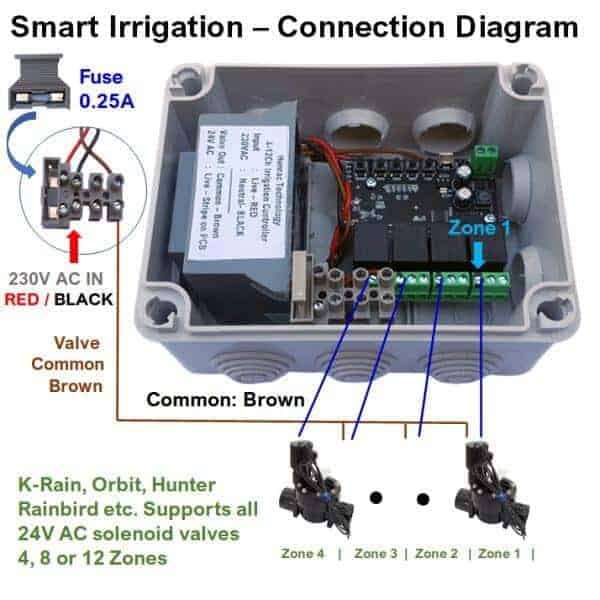

Make your Irrigation System completely hassle free and go 'Smart'. Suitable for any new irrigation installation or simply upgrading your current controllers. Smart systems will never 'lose' their programming and do not require any battery backup and can be controlled from pretty much anywhere on the 'planet'. Simply 'Connect, Configure Once, Wire and done'. This DIY unit is supplied 'pre-wired' within an IP55 enclosure and contains 2x 4Ch Smart relay board and a 24VAC transformer - please refer to the additional images for a connection diagram and recommended optional item descriptions. Offer excludes solenoid valves. Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT. Enables remote control of any number of devices or home appliances via the free Tuya SmartLife app installed on your phone or tablet (Android or IOS). With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device 'Smart'. All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here] This offer is 'prewired' and includes

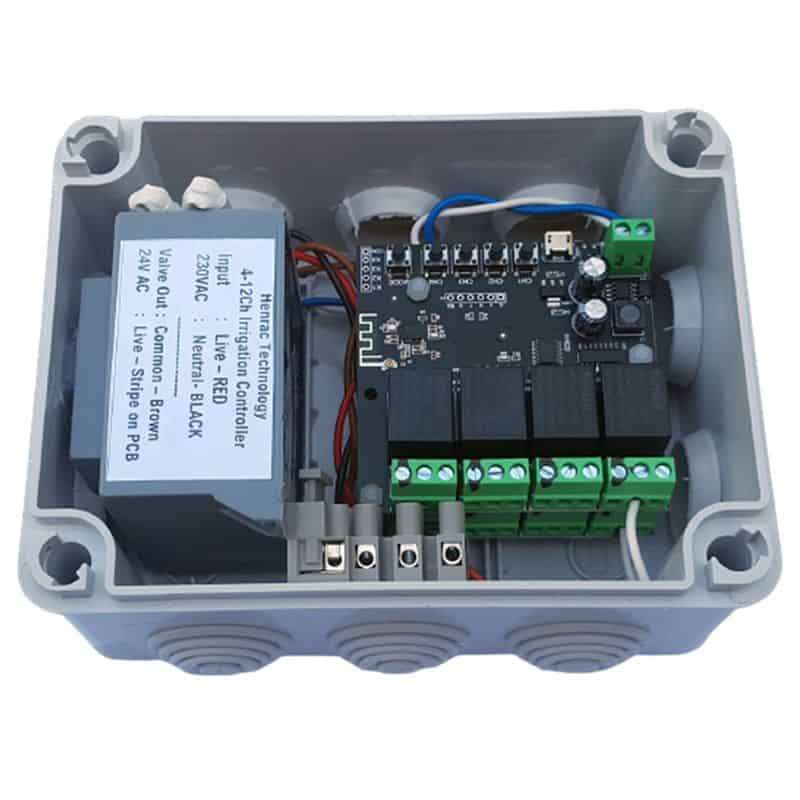

• Enclosure IP55 'splash & dustproof' Dimensions: 150L x 110W x 70H mm. For outdoor use, mount inside an IP68 enclosure
• Transformer 24VAC 1A, 25W
• 1 x 4channel smart relay board
• Fused Terminal Block for 230V Input / Spare 0.25A fuse included (taped to the lid)

Features on this System

• Via the free Tuya app you can pre-configure, activation dates, days of the week, start time and duration giving you complete remote control.
• Manual override ON/OFF via relay board
• Smart override ON/OFF via the SmartLife App (cell phone)
• The Smart system has numerous benefits over the conventional systems such as 'never loosing its programming' or requiring a 'backup battery'.
• Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
• Available in 4 Zone, 8 Zone and 12 Zone models, an unlimited number of units can be added as per your requirement.
• All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]

Typical Uses

• Smart Irrigation Controller for new or existing systems (retrofit upgrade). Suitable for use with any 24VAC Solenoid valves - such a Orbit, K-Rain, Rain Bird, Hunter etc.

Borehole? | Water Pump Smart Controller

• If you have a borehole with a pump we recommend our 20A Water Pump switch. To Buy [click here]
• This 20A Water pump Smart Switch is often used in conjunction with our Smart Irrigation systems. For control the pump for the duration of the all the irrigation zones.
• NOTE: via the Smart timing features always ensure at least one solenoid valve is open 1minute before the pump starts and that the last valve remains open 1 minutes after the pump switches off.

Optional recommended items

• Irrigation Valves - 24VAC Solenoid K-Rain (best price & quality - USA) to buy [click here]. Required for all new installations or simply to upgrade your current 'problematic' solenoid valves to better quality ones.
• Connect the controller to the solenoid valves via our Outdoor UV protected CAT5e Cable [click here]
• Rain Adjustment: you can add a Smart Water/Flood detector to indicate rain [click here]. The sprinklers can then be adjusted as required, for example reduce by 50% or switch OFF for next 3 days etc.

Specifications (Smart Relay Board)

Work Voltage	7-32VDC or 5-24VAC Terminal Block or Micro USB Port 5VDC
Relay Opening time	0.7 seconds
Relay Load	AC250V/10A or DC30V/10A
Switch mode	Switch/Mobile phone
WiFi Standards	IEEE 802.11 b/n/g 2.4G Hz
Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
Operation Temp.	10C to +60C
Humidity	5%--95% non-condensing
Dimension	PCBA: 6.7*4.1*1.7cm
Weight	0.05kg

What's in the Box?

• 1x 8Zone Smart Irrigation Controller
• 1x Tuya User Manual

FAQ's

• Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
• How do I get started? [click here]
• What devices can presently be Smart Automated? [click here]
• Facebook [click here] | Twitter [click here] | Instagram [click here] | Youtube [click here]

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home and IFTTT and more....
