Smart WiFi Irrigation Controller | 8 Zone | Tuya Smart Life

Smart 8Ch Wifi Irrigation Controller, Tuya SmartLife

If you can image it, you can probably 'Smart Switch' it with our versatile 1, 2 or 4 Channel Smart Relay boards. These units are especially well suited to creating 'smart irrigation systems' whether you are buying a completely new system or just upgrading the controllers of your existing system to be Smart.

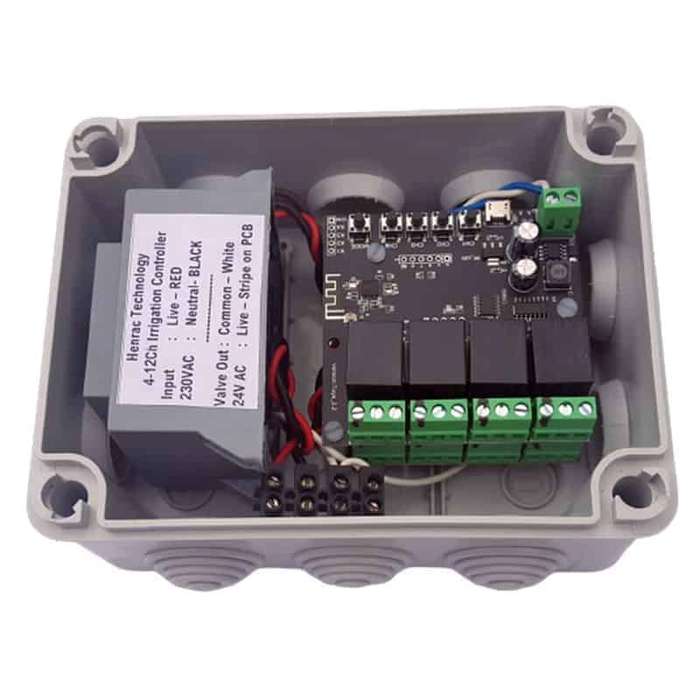

This unit is 'pre-wired' within an IP56 enclosure and contains 2x 4Ch Smart relay board and 24V AC transformer (excludes solenoid valves). Our DIY 'smart irrigation system' is completely scalable with the options to select 1, 2 or 4 channel relay relay boards for any number watering zones. - please refer to the additional images for a connection diagram and recommended optional item descriptions.

Enables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply 'Wire, Configure and Play'. Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT.

With so many smart home platforms available, WHY TUYA  [click here]. Great way to make any appliance or device 'Smart'.

This offer is 'prewired' and includes.

• • Enclosure Options (must select one or the other)
    • Enclosure IP55 'splash & dustproof': Dimensions: 150L x 110W x 70H mm. For indoor Use.
    • Enclosure IP65 'waterproof': Dimensions: 175L x 125W x 70H mm. For outdoor Use.
  • Transformer built-in, 24VAC 1A, 25W.
  • 2 x 4channel smart relay boards.
  • Fused Terminal Block for 230V Input / Spare 0.25A fuse included (taped to the lid).

Download: Manual for the 'Relay Boards' [click here]

Features on this System

• • • Via the free Tuya app you can pre-configure, activation dates, days of the week, start time and duration giving you complete remote control.
    • Manual override ON/OFF via relay board
    • Smart override ON/OFF via the SmartLife App (cell phone)
    • The Smart system has numerous benefits over the conventional systems such as 'never losing its programming' or requiring a 'backup battery'.
    • Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
    • Available in 4 Zone, 8 Zone and 12 Zone models, an unlimited number of units can be added as per your requirement.
    • All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]

Typical Uses

• • • Smart Irrigation Controller for new or existing systems (retrofit upgrade). Suitable for use with any 24VAC Solenoid valves - such as Orbit, K-Rain, Rain Bird, Hunter etc.

Borehole? | Water Pump Smart Controller

• • • If you have a borehole with a pump we recommend our 20A Water Pump switch. To Buy  [click here]
    • This 20A Water pump Smart Switch is often used in conjunction with our Smart Irrigation systems. For control the pump for the duration of the all the irrigation zones.
    • NOTE: via the Smart timing features always ensure at least one solenoid valve is open 1minute before the pump starts and that the last valve remains open 1 minutes after the pump switches off.

Optional recommended items

• • • Solenoid Valves: 24VAC Solenoid K-Rain (USA) to buy [click here]. Required for all new installations or simply to upgrade your current 'problematic' solenoid valves to better quality ones.
    • Sprinkler Pop-Up & Nozzle: K-Rain (USA)  NP4 + KVF10 | 6m Diameter Spray, 25cm height. To buy [click here].

    • Rain Adjustment: you can add a Smart Water/Flood detector to indicate rain level [click here]. The sprinklers can then be adjusted via the app Automation feature as required, for example reduce by 50% or switch OFF for next 3 days etc.

Specifications

• Work Voltage	7-32VDC or 5-24VAC Terminal Block or Micro USB Port 5VDC
  Relay Opening time	0.7 seconds
  Relay Load	AC250V/10A or DC30V/10A
  Switch mode	Switch/Mobile phone
  WiFi Standards	IEEE 802.11 b/n/g 2.4G Hz
  Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
  Operation Temp.	—10C to +60C
  Humidity	5%--95% non-condensing
  Dimension	PCBA: 6.7*4.1*1.7cm
  Weight	0.05kg

Optional Items (recommended)

Need a suitable enclosure or housing ? [click here]

• FAQ's

  • Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
  • How do I get started? [click here]
  • What devices can presently be Smart Automated? [click here]

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS),  offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home and IFTTT and more...
