Smart WIFI Light Switch | 1-4 Channels | NO NEUTRAL REQUIRED | Eachen | Smart Life | Tuya

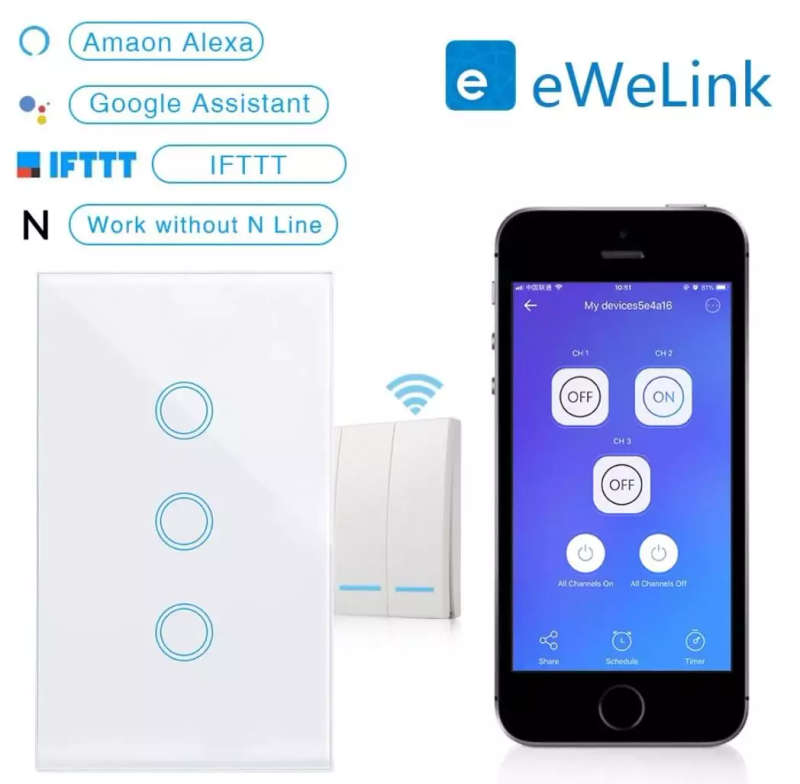

These Smart light switches can be controlled remotely using your phone. The light switches work with Amazon Alexa, Samsung Smart Things and Google Assistant which let you turn on or off your lights with voice commands, perfect for those who love to multi-task.
Compatible with IFTTT applets, the light switches can communicate with a slew of devices and services, to trigger them on or off or triggered with Zigbee Motion Sensors.
Please ensure all electrical wiring is done by someone who is qualified to do so or knows how to work safely with electricity. Please be safe when working with electricity and ensure correct procedures followed. We recommend installation by a qualified electrician for all electrical equipment.
Please note: NOT working on eWeLink APP, only works on TUYA/Smart Things APP.
Check on the selectable dropdown the following for this product to ensure the correct one is selected:

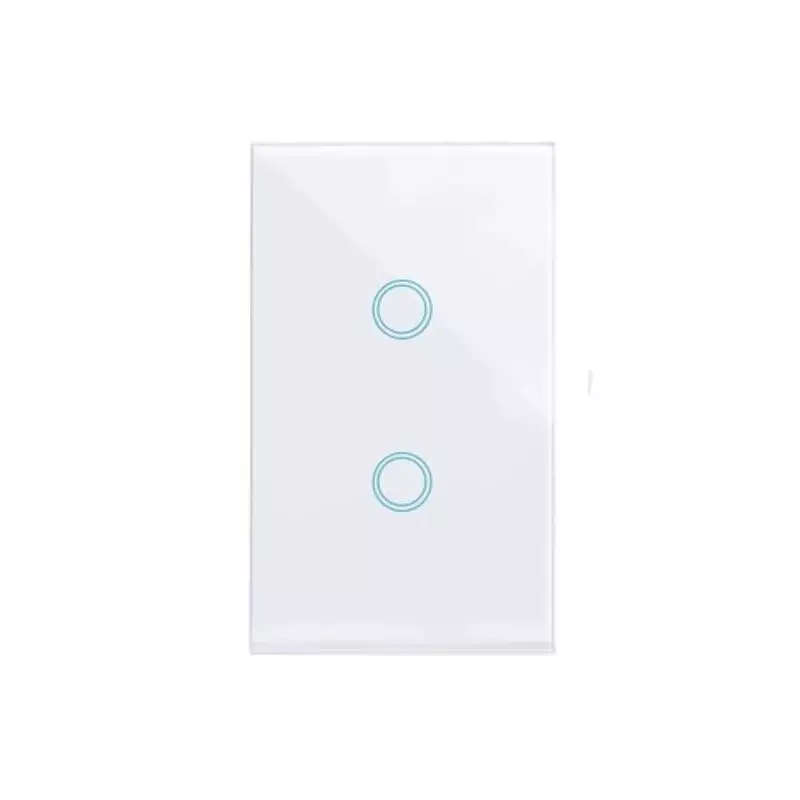

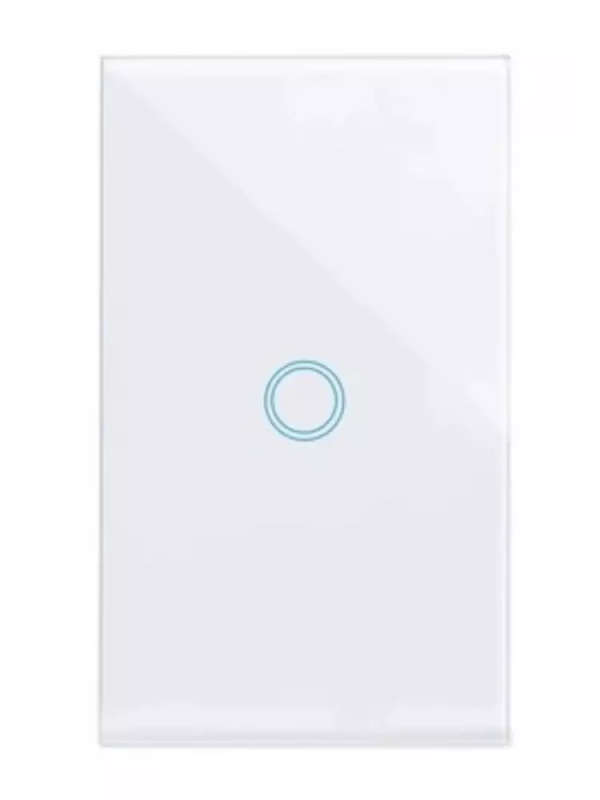

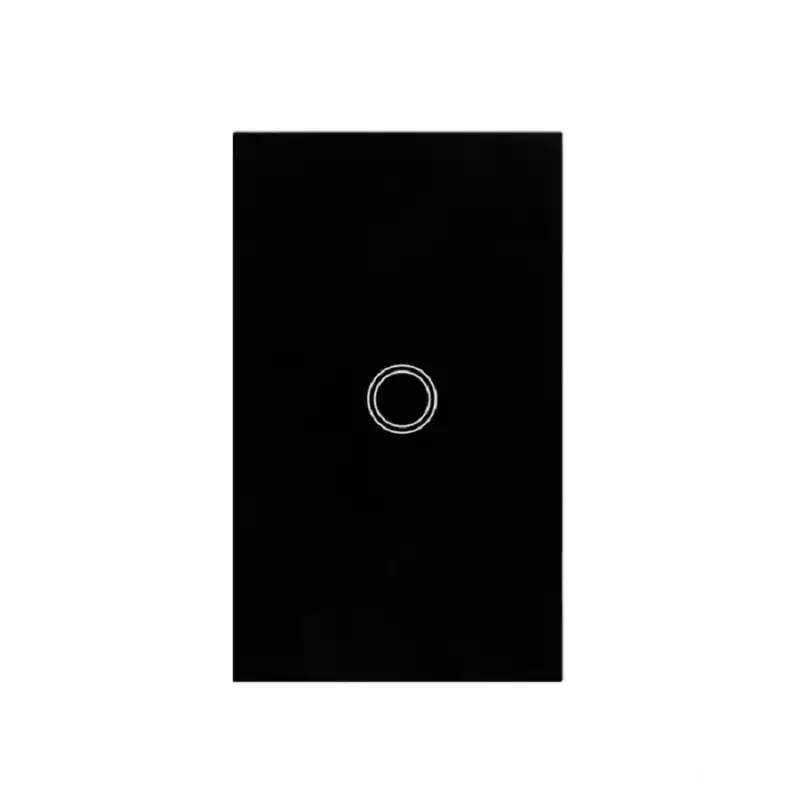

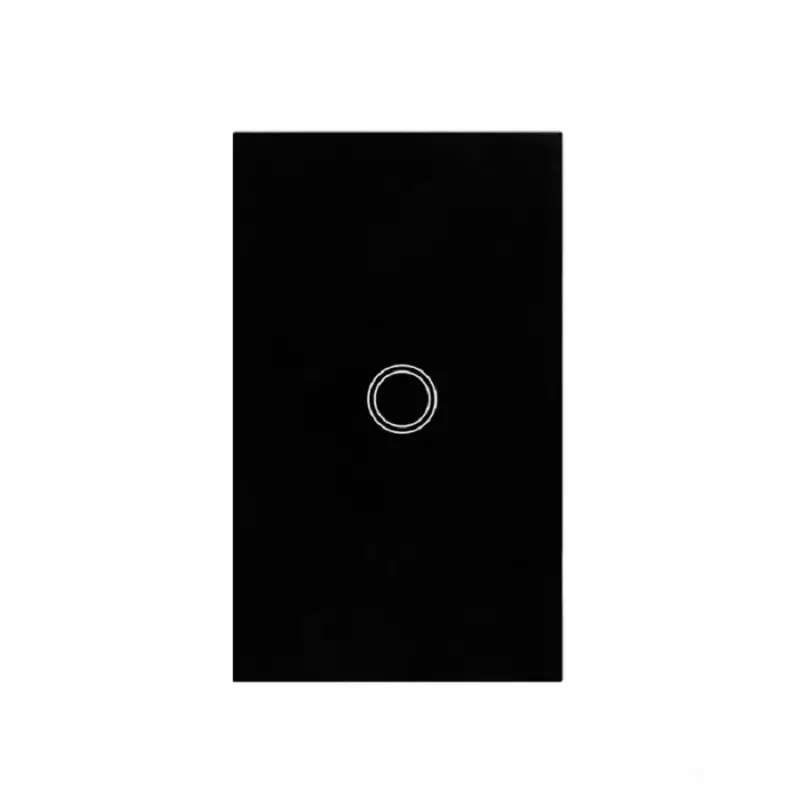

- BLACK or WHITE option
- Any "NO Neutral Required" Smart Wifi Light Switch will also work with a Neutral Wire if you have one installed on your electrical wiring to your light switch
- 1,2,3 or 4 Channel Light Switch Options
If you have pairing issues on the Tuya or Smartlife App please follow the instructions below:
- Turn of the Light Switch / Breaker at your Electrical DB Board
- After 15 Seconds turn on Light Switch / Breaker at DB Board
- Keep button Pressed for 5 Seconds on Wifi Light Switch to start paiting mode. Blue Light will start to Flicker on Wifi Light Switch
- Start Pairing Process again from Tuya or Smartlife App.
Control your entire home from a app on your smartphone or via voice on your smartphone via Google Home, Alexa, Siri or mostly any voice assistant.
These smart light switches requires NO Neutral Wiring (Live Wire only required as with traditional Manual On/OFF Switch)
Features:
- No Neutral wire required - Capacitor needs to be installed as per wiring diagram below
- Can be set using the timer function, auto scenes status based on other smart devices, on/off via motion sensors etc
- Compatible with 433MHz remote control
- Turn on/off devices with Amazon Alexa and Google Assistant with Voice Commands
- Tuya/Smart Things app available on iOS or Android
- Dimensions: US Size: 120*74*38mm
- Real time status visible on app
- Set smart scenes Turn a group of devices on or off with one tap
- IFTTT applets triggers a bunch of actions
- Control the device with your family together via device sharing

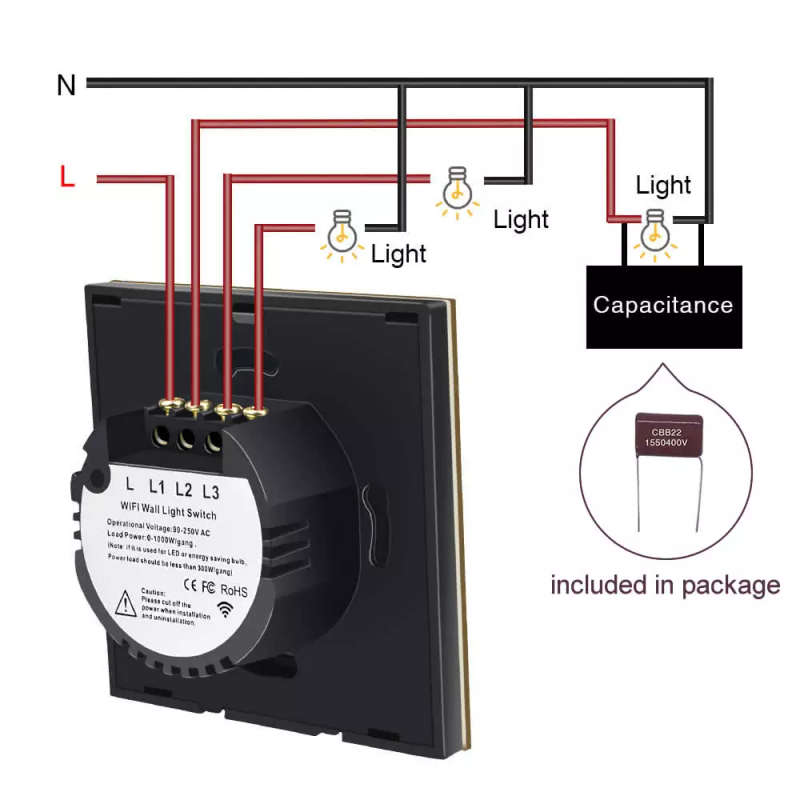

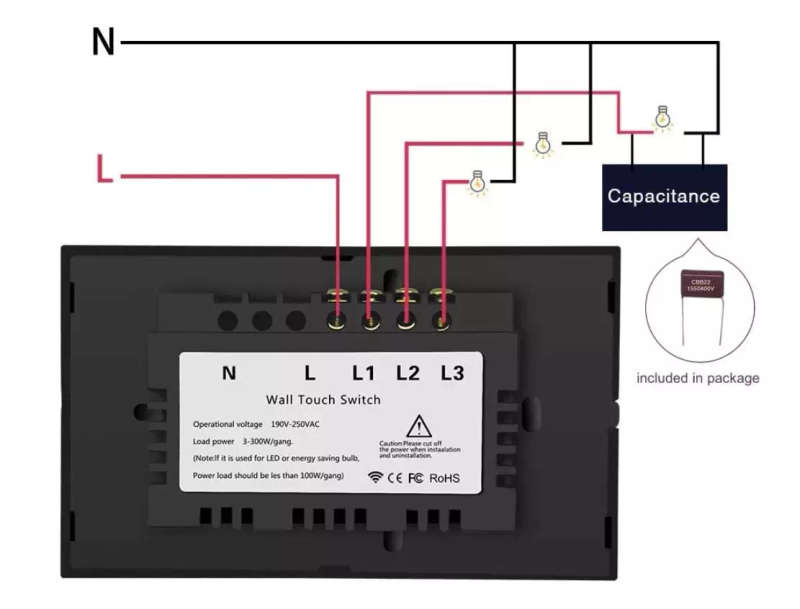

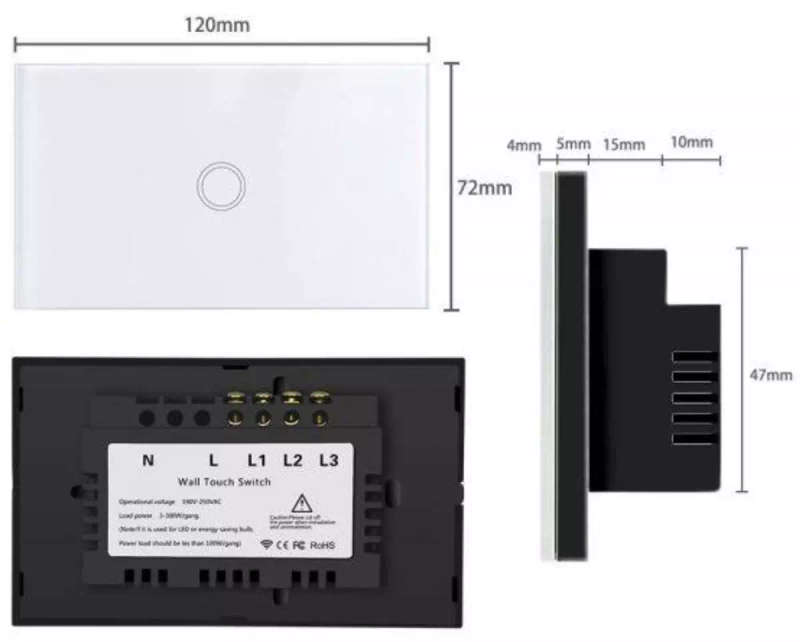

Wiring Layout (2 Different designs) & Dimensions (1-4 Channel Switches same dimensions):
The supplied Capacitor is installed between the "Live" and "Neutral" Wire going to your lights near the 220v light fittings or near downlights transformer if 220v to 12v transformer for downlights installed or easiest accessible location possible. No Neutral Wire is required where the Smart Light Switch is installed on the wall.
Easy to see switch at night with LED Lights
Example Installation Diagram (with Motion Control Sensors Added):
