Smart Water Tank Sensor with Automated Pump Controller. Wifi Tuya Smart Home.
Make your Water Level Monitoring system completely hassle-free and go 'Smart'. Suitable for any water storage applications irrespective of volume such as Eco/ JoJo bulk storage tanks, fish tanks or ponds. For use in new installations or simply upgrading your current pump and controllers to be smart. The system provides for 5 levels of water level detection 0%, 25%, 50%, 75% and 100%. Based on these readings and your settings selected the system will also control your pump. For example: at 25% switch ON / switch OFF at 100%.

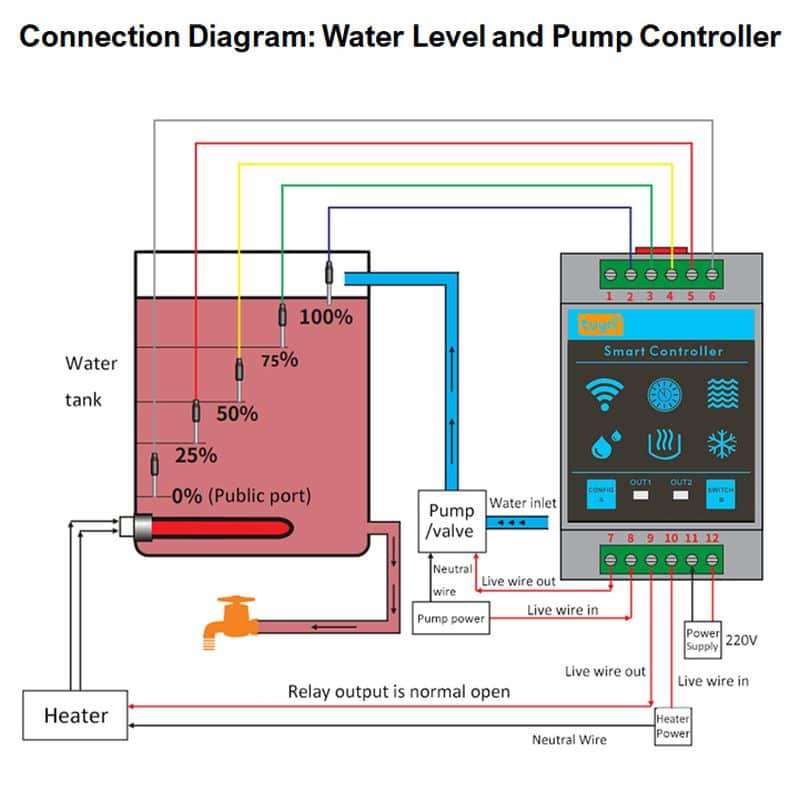

Working Modes: (see additional images)
- Fill the Water Tank (based on current water levels in the tank): select the Work Mode 'Add Water' function and select the low level to switch the pump ON and the high level to switch the pump OFF.
- Pump Water Out from Water Tank - irrigate (based on current water levels in the tank): select the Work Mode 'Pumping' function and select the high level to switch the pump ON and the low level to switch the pump OFF.
Note one unit cannot perform both the above functions as the pump to fill the tank and the pump out to irrigate are separate pumps. The default use of this unit is to manage the 'FILL TANK' pump. Should you require both functions 2 units are required.
NB: It is recommended that you first set this unit up in the comfort of your home using the probes and a glass of water.
25A Output Upgrade - Essential Addition for Pumps. Most pumps exceed the current rating of this controller's built-in relay switch. For this reason, a 25A contactor relay switch is highly recommended. The relay contactor has an input voltage of 230VAC (from this controller's output) and is available in | 25A single phase - 2pole or |400VAC three phase - 4pole. To Buy a Contactor [click here].
Smart systems will never 'lose' their programming do not require any battery backup and can be controlled from pretty much anywhere on the 'planet'. Simply 'Connect, Configure Once, Wire and done'.
Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever-growing Smart Products. Supports Alexa, Google Home and IFTTT. Enables remote control of any number of devices or home appliances via the free Tuya SmartLife app installed on your phone or tablet (Android or IOS).
With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device 'Smart'. All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Download User Manual: Smart Water Level Sensor and Pump Controller [click here]
Features of this System
- Via the free Tuya app, you can pre-configure, activation dates, days of the week, start and end levels giving you complete remote control.
- Fully Automated Water level replenishment based on any of five current levels. Replenishment can be via a Pump 230VAC (single phase). Use a suitable relay for 3phase pumps) or solenoid valves (24VAC).

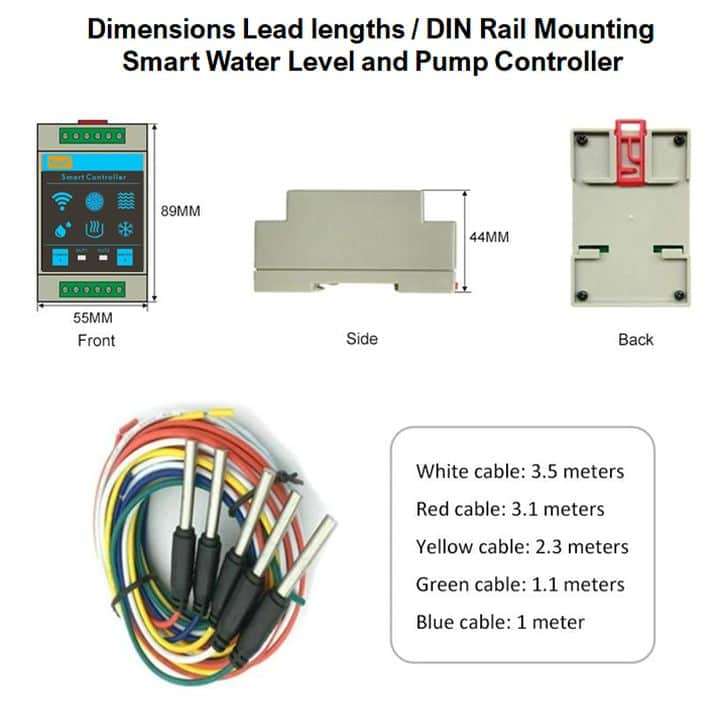

- The unit supports DIN rail mounting and can be mounted in a separate DB (Electrical Distribution Board). For Outdoor installations, a suitable +IP65 enclosure or DB is required. The unit is required to be mounted close to the tank, due to the probe lead lengths - see images.
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solutions.
- All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Typical Uses
- Any water level/storage applications irrespective of volume.
- Eco/ JoJo bulk storage tanks.
- Fish tanks or ponds.
- Swimming Pools
- Industrial Applications
Optional recommended items
- For Home storage and flow systems using 1" pipes (max), we recommend our irrigation Krain solenoid valves [click here], which can be connected to the municipal feed as opposed to a borehole or pump. Note that these will need a 24VAC transformer connected to this controller's output [click here].
- For high-current single-phase pumps consider the use of our 25A contactor switch.
- For high-current three-phase pumps, consider using our 25A contactor switch.
Specifications
- Product Name: Tuya Smart Home Water Level Sensor
- Probe Lengths:
- Blue - 102cm
- Green - 112cm
- Yellow - 231.7cm
- Red - 312.2cm
- White - 353cm
- Power Power: Supply 230VAC
- APP Tuya/Smart Life
- Material Plastic
- Size 89mm x 55mm x 44mm
- WiFi IEEE 802.11 b/n/g 2.4G Hz
What's in the Box?
- 1 x Smart Water Tank Level Sensor
- 5 x Detection Probes
- 1 x Instruction manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
