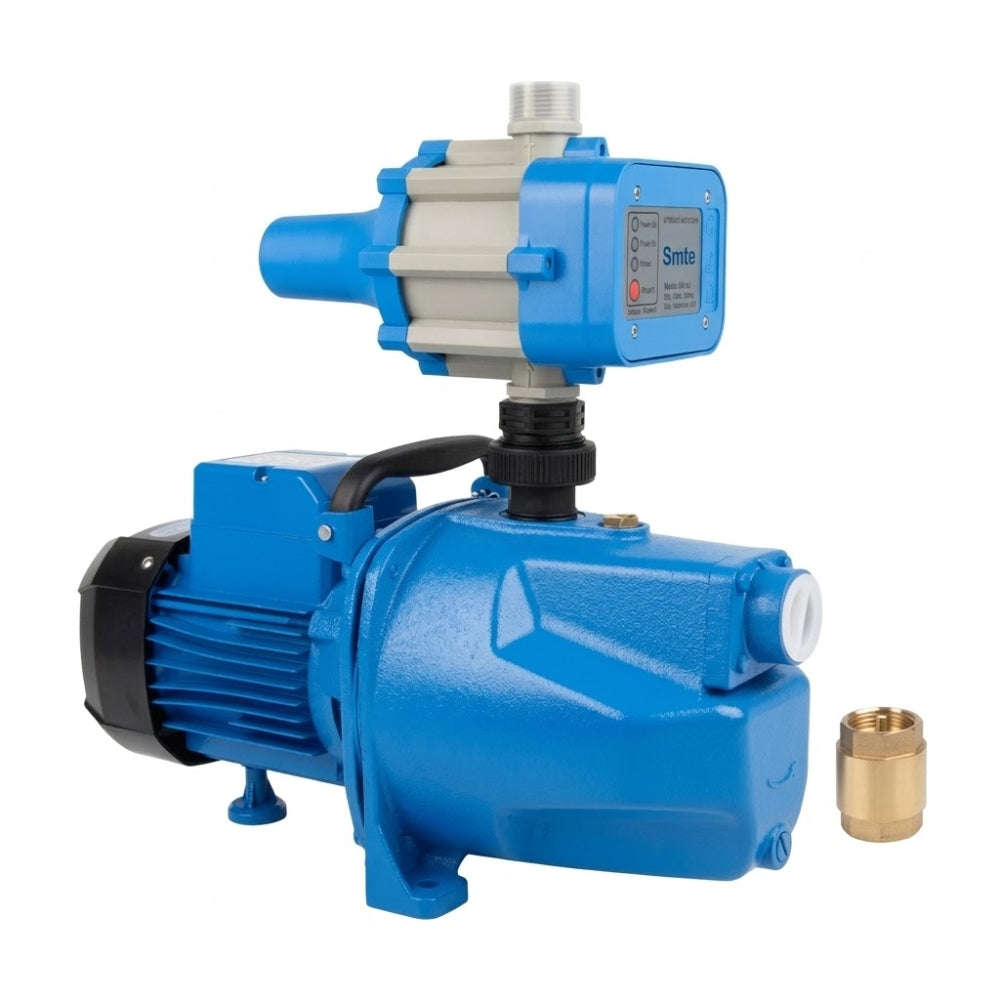

Experience reliable, high-capacity water pressure across your entire property with the Smte 0.75kW Self-Priming Jet Booster Pump System. Designed for residential water supply, garden watering networks, and medium pressure booster assemblies, this self-priming jet pump handles demanding lifting and transfer applications with ease.
Equipped with a powerful 0.75kW (1.0 HP) motor wound with 100% pure copper, the unit achieves a maximum delivery head of 42 meters (4.2 Bar) and a rapid flow rate of up to 4.3 m³/h (4,300 L/h). The integrated SK-10 electronic controller manages daily water flow automatically, activating the system the instant a faucet is turned on and powering down once lines are closed. Built-in dry-run protection prevents motor damage during water shortages, while the included heavy-duty brass non-return valve maintains prime for instant water delivery.
Key Features
Fully Automated Operation: Electronic flow switch senses line pressure and demand, eliminating the need for large pressure tanks.
Run-Dry Detection & Manual Reset: Automatically shuts down the motor if the water source is exhausted to prevent pump failure.
Superior Pressure & Volume: High-head jet mechanism produces 4.2 Bar of pressure and up to 4,300 L/h flow capacity.
Heavy-Duty Core Components: Built with 100% copper windings, a machined brass impeller, and thermal overload motor protection.
Brass Non-Return Valve Included: Prevents backflow and maintains system prime for immediate start-up response.
Universal 25mm Connections: Standard 1-inch (25mm) inlet and outlet ports ensure straightforward integration into standard pipework.
Specifications
Brand: Smte
Product Type: Automatic Self-Priming Jet Water Booster Pump
Model Number: JET100 + SK-10 (PASJETSK)
Motor Power: 0.75 kW (1.0 HP)
Wattage: 750W
Voltage / Frequency: 220230V AC (50 Hz, Single Phase)
Maximum Head (Hmax): 42 m (4.2 Bar)
Maximum Flow Rate (Qmax): 4.3 m³/h (71.7 L/min / 4,300 L/h)
Suction Lift: Up to 9 m (Self-priming)
Inlet / Outlet Size: 25 mm (1 Inch) BSP
Ingress Protection: IP44
Impeller Material: Solid Brass
Motor Winding: 100% Pure Copper
Motor Safety: Thermal Overload Cut-Off
Check Valve: Brass Non-Return Valve Included
Water Suitability: Clean water / non-abrasive fluids
What's Included
1 × Smte 0.75kW Self-Priming Jet Water Pump
1 × SK-10 Automatic Electronic Flow Controller
1 × Heavy-Duty Brass Non-Return Valve
1 × Power Cable with Plug & Pre-Wired Connector
