SMTE 16kW Hybrid Inverter Single Phase – 48V 3 MPPT IP65

SMTE 16kW Hybrid Inverter Single Phase 48V Pure Sine Wave Solar Inverter (3 MPPTs, 290A Charge/Discharge, IP65)

Power large residential estates, multi-appliance properties, or light commercial facilities with the 16kW Hybrid Single-Phase Solar Inverter. Delivering an impressive 16,000W continuous output, triple MPPT tracking with high PV input capacity, and an industry-leading 290A charge/discharge capability, this pure sine wave inverter offers exceptional single-phase performance. Designed for low-voltage 48V battery systems with full IP65 weatherproof protection, ultra-fast 4ms5ms backup switching, and smart AC-coupling retrofitting, it maximizes self-consumption and guarantees continuous power security during outages.

Key Features & Benefits

• Record-Breaking 16,000W Single-Phase Output: Delivers 16kW continuous pure sine wave power (17,600VA max apparent power) with 2x peak surge handling for heavy residential and commercial loads.

• Massive 290A Battery Flow: Delivers up to 290A continuous charging and discharging current, ensuring rapid replenishment and high-load support for 48V Lithium-ion and Lead-Acid battery banks.

• Triple MPPT Trackers (3 MPPTs / 2+2+2 Strings): Features 3 independent MPPT trackers with a high PV input range to maximize solar energy harvest from complex multi-angle roofs and bifacial modules.

• Ultra-Fast UPS-Level Switching: Transitions seamlessly from on-grid to off-grid mode in under 5ms, protecting sensitive electronics, servers, and household appliances from disruption.

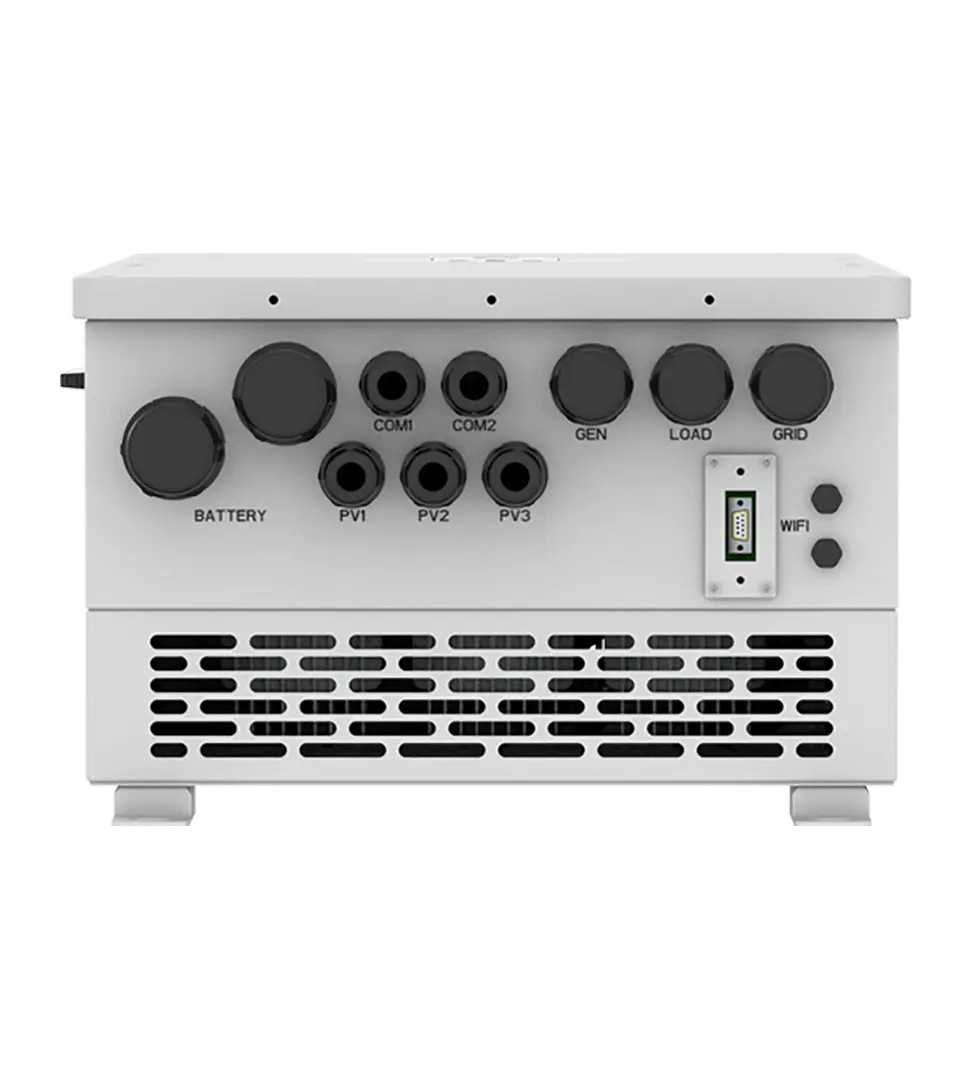

• Smart Load & Multi-Source Management: Includes dedicated ports for grid, backup essential load, and auxiliary diesel generators to ensure 24/7 continuous operation.

• AC-Coupled Retrofit Ready: Seamlessly integrates into existing grid-tied solar setups to convert them into complete energy storage solutions without major infrastructure overhaul.

• Fast Zero-Export Control: Features an ultra-responsive zero-export mode reacting within 200ms to meet local grid regulations.

• Massive Parallel Scalability: Supports parallel operation of up to 16 units for expandable single-phase on-grid and off-grid configurations.

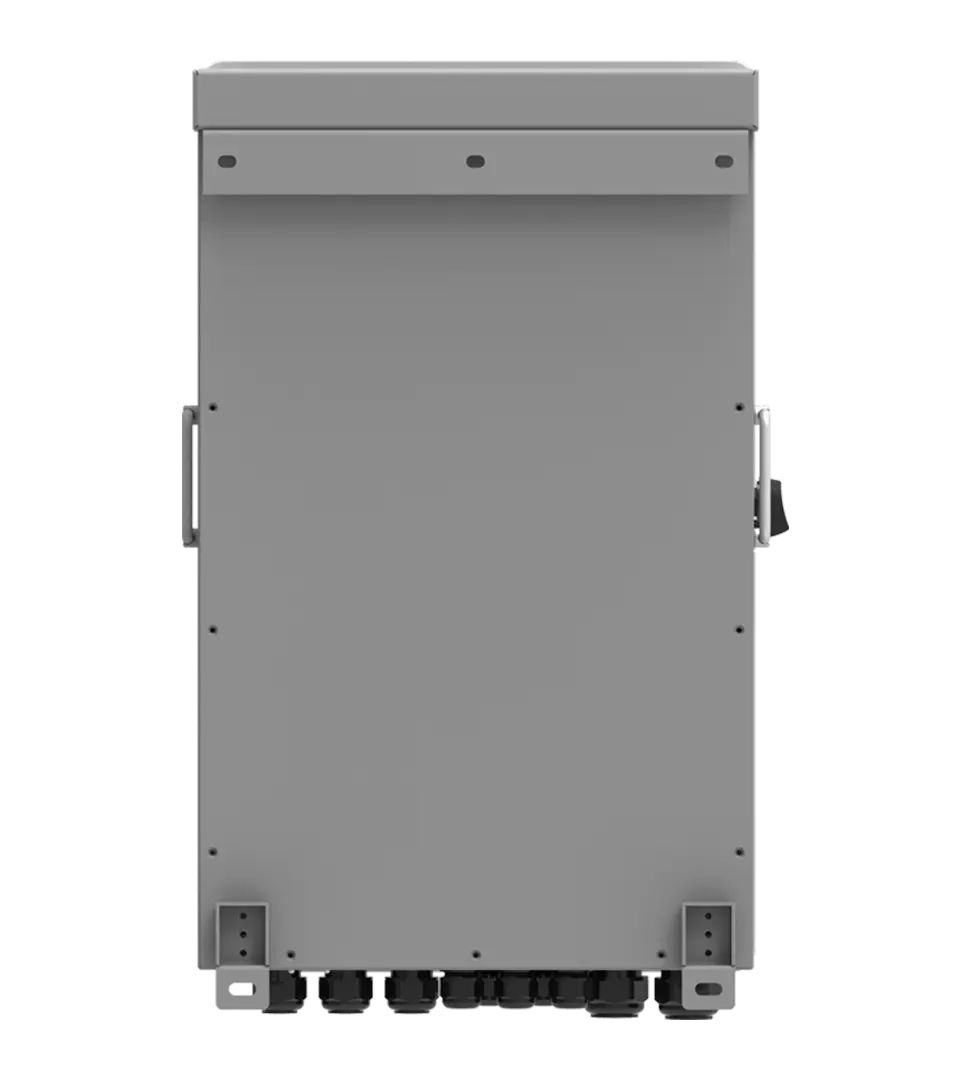

• Rugged IP65 Weatherproof Housing: Built for durable indoor or outdoor wall mounting with intelligent fan cooling.

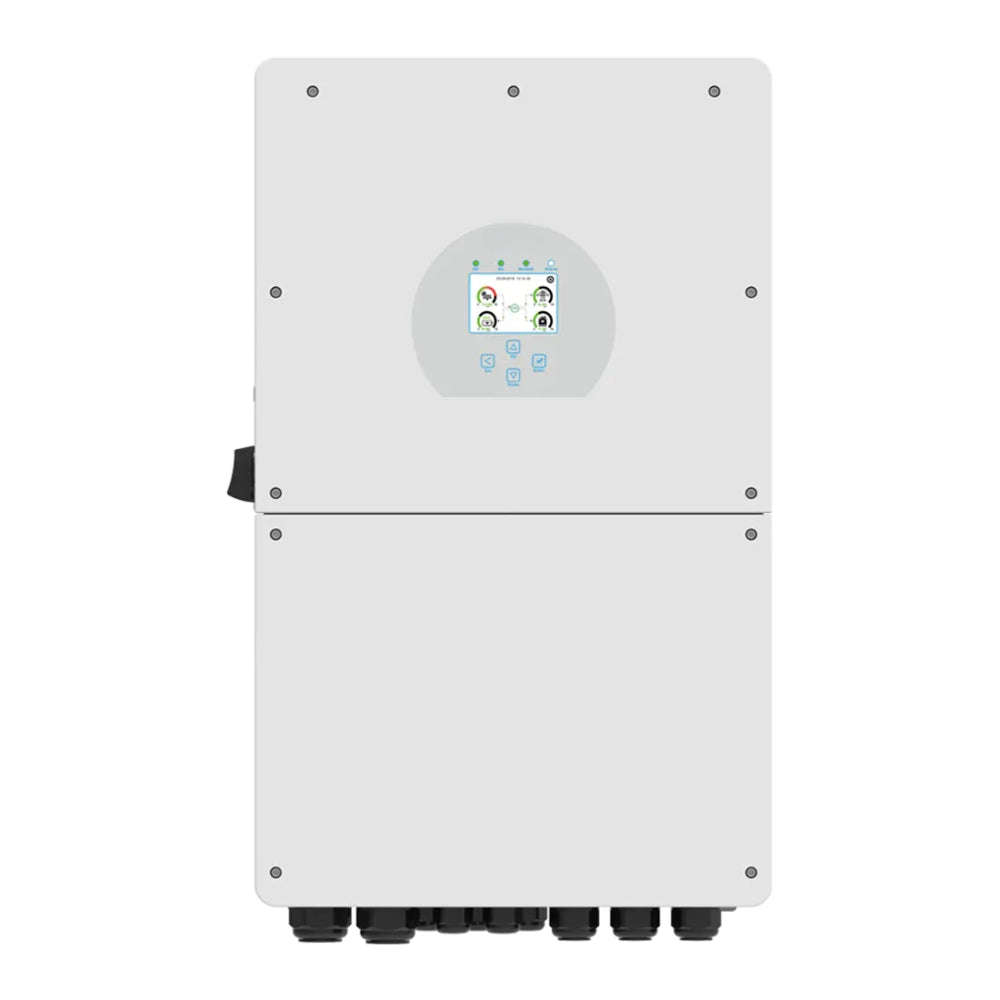

• Complete Smart Monitoring Kit: Comes standard with a plug-and-play Wi-Fi dongle, BMS communication cable, and a full-color LCD touchscreen with tactile navigation buttons.

Technical Specifications

PV String Input Data

• Inverter Topology: Single-Phase Low-Voltage Hybrid (Transformerless Solar, Isolated Battery)

• Max. PV Access Power: Up to 32,000W (Max. PV Input: 20,800W 25,600W)

• Max. DC Input Voltage: 500V (Start-up: 125V | Rated: 370V)

• MPPT Operating Voltage Range: 150V 425V

• Number of MPPT Trackers / Strings: 3 MPPTs / (2 + 2 + 2) Strings

• MPPT Efficiency: > 99%

Battery Input Data (48V Low Voltage)

• Battery Chemistry: Lithium-Ion / LiFePO4 / Lead-Acid

• Battery Voltage Range: 40V 60V DC

• Max. Charging / Discharging Current: 290A / 290A

• Lithium Strategy: Self-adaptation to BMS (RS485 / CAN Cables Included)

• Time-of-Use Scheduling: 6 Programmable Charge / Discharge Time Periods

AC Output & Backup Data

• Rated AC Output Active Power: 16,000W (16kW)

• Max. AC Output Apparent Power: 17,600VA

• Rated AC Current: 72.7A / 69.6A (Max: 80A / 76.5A)

• Max. Continuous AC Passthrough: 100A

• Switchover Transfer Time: 4ms 5ms (UPS-Class Switching)

• Nominal Grid Voltage & Frequency: 220V / 230VAC (L+N+PE Single-Phase) | 50/60Hz

• Max. Efficiency: 97.6% (Euro Efficiency: 96.5%)

• Current Harmonic Distortion (THD): < 3%

General & Mechanical Data

• Cabinet Dimensions (W × H × D): 464 mm × 763 mm × 282 mm

• Net Weight: ~48.5 kg 54 kg

• Ingress Protection Rating: IP65 (Wall-Mounted)

• Cooling: Intelligent Air Cooling (Noise: 3055 dB)

• Operating Temperature Range: -40°C to +60°C (> 45°C Derating)

• Protection Devices: Type II (DC) / Type II (AC) Surge Protection, DC Switch, Islanding, Reverse Polarity

• Warranty: 5-Year Warranty
