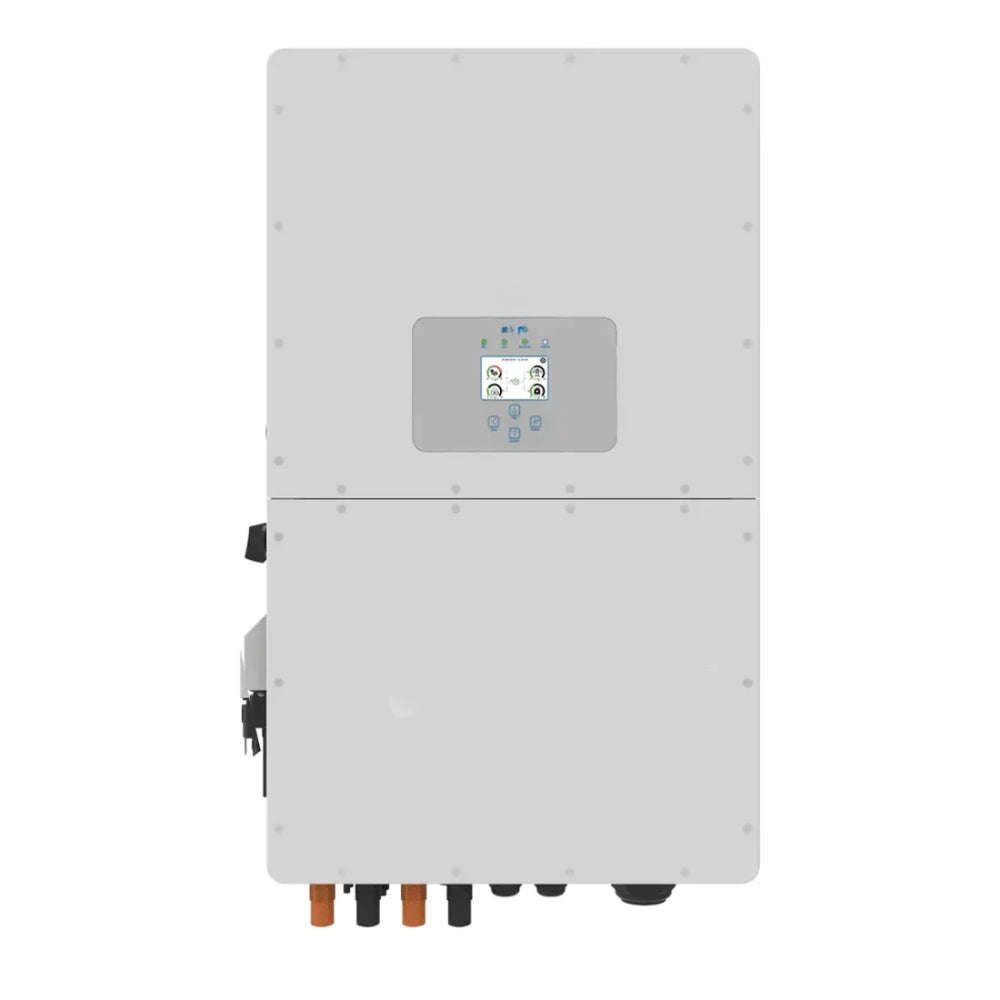

Power commercial enterprises, industrial plants, and agricultural facilities with the 30kW High-Voltage Three-Phase Hybrid Solar Inverter. Engineered for high-efficiency energy management and lower thermal dissipation, this three-phase inverter interfaces with 160V800V high-voltage lithium battery systems. Featuring 3 MPPT trackers supporting up to 39,000W PV input, 100% unbalanced three-phase output, smart remote parameter settings, and parallel scalability up to 10 units, it delivers continuous energy security and optimal self-consumption.
Key Features & Benefits
Ultra-High 39,000W PV Input: Equipped with 3 MPPT controllers and 6 strings (2 strings per tracker) supporting up to 1000V max DC input to maximize daily energy harvesting.
High-Voltage Battery Efficiency (160V800V): Dual high-voltage battery inputs (50A + 50A charge/discharge) reduce current losses and heat dissipation for superior round-trip efficiency.
100% Unbalanced Three-Phase Output: Delivers up to 50% rated power on each individual phase, effortlessly handling uneven electrical loads across commercial circuits.
Smart Monitoring & Remote Shutdown: Features remote system shutdown, remote parameter setting, and cloud firmware updates for simple operation and maintenance (O&M).
AC Coupling & System Retrofit: Seamlessly integrates into existing grid-tied setups to upgrade legacy installations into complete energy storage systems.
Diesel Generator & Smart Load Management: Fully compatible with diesel backup generators and multi-function smart load / AC couple configurations.
Scalable Commercial Parallel Mode: Supports parallel connection of up to 10 units for on-grid and off-grid multi-megawatt-hour installations, along with multi-battery parallel setups.
Comprehensive Multi-Layer Protection: Built-in DC Type II and AC Type III surge protection, anti-islanding, reverse polarity detection, and short-circuit protection.
Technical Specifications
PV String Input Data
Max. DC Input Power: 39,000W (39kW)
Max. DC Input Voltage: 1000V
Start-Up Voltage: 180V
MPPT Operating Range: 150V 850V (Full Load: 500V 850V)
Rated DC Input Voltage: 600V
PV Input Current: 36A + 36A + 36A (Max. ISC: 55A + 55A + 55A)
MPPT Trackers / Strings per Tracker: 3 MPPTs / 2 Strings per Tracker
MPPT Efficiency: 99.90%
Battery Input Data (High Voltage)
Battery Chemistry: High-Voltage Lithium-Ion
Battery Voltage Range: 160V 800V
Max. Charge / Discharge Current: 50A + 50A
Number of Battery Inputs: 2 Inputs
BMS Strategy: Self-adaptation to BMS via CAN / RS485
AC Output & UPS Data
Rated AC Output & UPS Power: 30,000W (30kW)
Max. AC Output Power: 33,000W
Peak Power (Off-Grid): 1.5x Rated Power (10 Seconds)
AC Output Rated Current: 45.5A / 43.5A (Max. AC Current: 60A)
Max. Continuous AC Passthrough: 150A
Nominal Grid Voltage & Frequency: 220/380V, 230/400Vac (3L/N/PE Three-Phase) | 50/60Hz
Max. Efficiency: 97.60% (Euro Efficiency: 97.00%)
General & Mechanical Data
Dimensions (W × H × D): 527 mm × 894 mm × 294 mm
Net Weight: 75 kg
Ingress Protection Rating: IP65 (Wall-Mounted)
Cooling: Smart Cooling (< 45 dB Noise Level)
Operating Temperature: -40°C to +60°C (> 45°C Derating)
Certifications: NRS 097, COCT, EN50549, AS4777.2, IEC61727, VDEN4105, G99, IEC/EN 62109-1/2
Warranty: 5-Year Warranty
