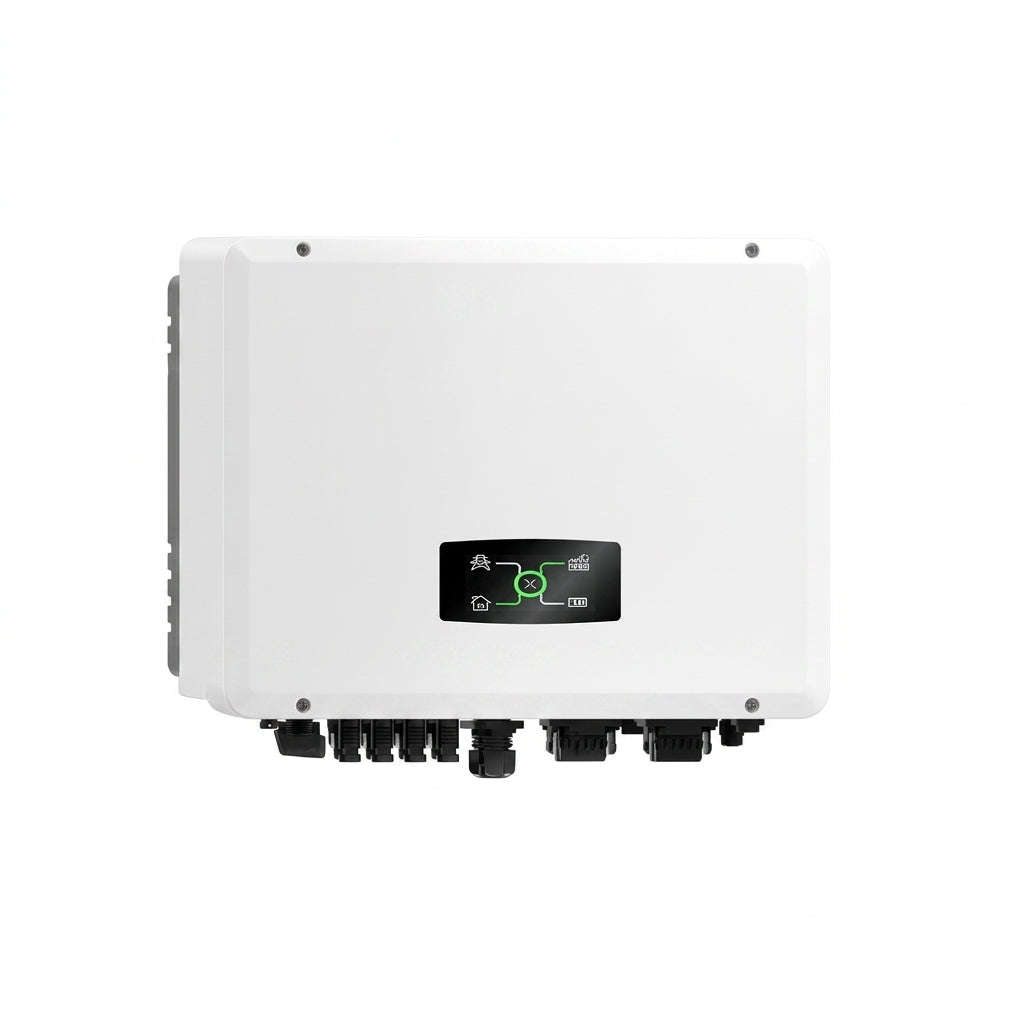

SMTE 30kW Three-Phase Hybrid Inverter High Voltage Commercial Solar Inverter (3 MPPTs, IP65)
Scale your commercial facility, agricultural site, or large residential property with the 30kW Three-Phase High Voltage Hybrid Solar Inverter. Engineered as the central powerhouse for modern energy storage solutions, this inverter pairs with scalable high-voltage battery systems to deliver powerful backup power and optimize self-consumption. Featuring 3 independent MPPT trackers supporting massive PV input, 100% unbalanced three-phase output, fast <10ms UPS transfer, and an optimized built-in Energy Management System (EMS), it drastically cuts operational energy costs and guarantees continuous power security.
Key Features & Benefits
High-Capacity PV Oversizing: Features 3 independent MPPT trackers (2+2+2 string design) supporting up to 200% DC oversizing to maximize daily energy yields across complex roof layouts.
High-Voltage Battery Storage: Compatible with high-voltage Lithium battery banks (100V700V/800V range) for superior round-trip efficiency, reduced current losses, and scalable capacity.
Optimized Built-in EMS: Intelligent energy management with Peak Shaving mode customizes energy usage schedules to lower electricity tariffs and improve ROI.
100% Unbalanced Three-Phase Output: Delivers complete flexibility across three-phase electrical networks by seamlessly managing unequal phase load distributions.
Seamless Backup & UPS Transfer: Provides rapid <10ms on-grid to off-grid switching with up to 200% overload capacity to start heavy equipment and protect sensitive loads.
Generator & Microgrid Compatible: Fully compatible with auxiliary diesel generators for 24/7 backup reliability and off-grid microgrid operations.
Parallel Scalability: Connect up to 10 units in parallel for on-grid and off-grid multi-megawatt-hour commercial expansion.
Rugged IP65 & Comprehensive Protection: Weatherproof IP65 wall-mountable enclosure equipped with integrated Type II AC/DC Surge Protection Devices (SPD) and smart cooling.
Technical Specifications
PV String Input Data
Inverter Topology: Three-Phase High Voltage Hybrid
Rated AC Output Power: 30,000W (30kW)
Max. PV Input Voltage: 1000V
MPPT Operating Voltage Range: 150V 950V
Number of MPPT Trackers / Strings: 3 MPPTs / (2 + 2 + 2) Strings
Max. Input Current per MPPT: 32A / 32A / 32A
Battery & Storage Parameters
Battery Architecture: High-Voltage Lithium Battery System
Battery Voltage Range: 100V 700V / 800V
Max. Charge / Discharge Current: 50A / 50A
BMS Communication: CAN / RS485
AC Output & UPS Backup
Nominal AC Output Voltage: 220/380V, 230/400V, 240/415V (3L+N+PE Three-Phase)
Max. AC Output Current: 45.5A
Switching Time (UPS Mode): < 10ms
Max. Inverter Efficiency: Up to 98.4% (Euro Efficiency: 97.8%)
Unbalanced Output: 100% Unbalanced Three-Phase Output Supported
General & Mechanical Data
Dimensions (W × H × D): 595 mm × 485 mm × 235 mm
Net Weight: ~39 kg
Ingress Protection Rating: IP65 (Wall-Mounted)
Cooling Method: Intelligent Fan Cooling
Surge Protection: Integrated Type II AC & DC SPDs
Monitoring: Mobile App & Web Cloud Remote Monitoring (Wi-Fi / RS485)
