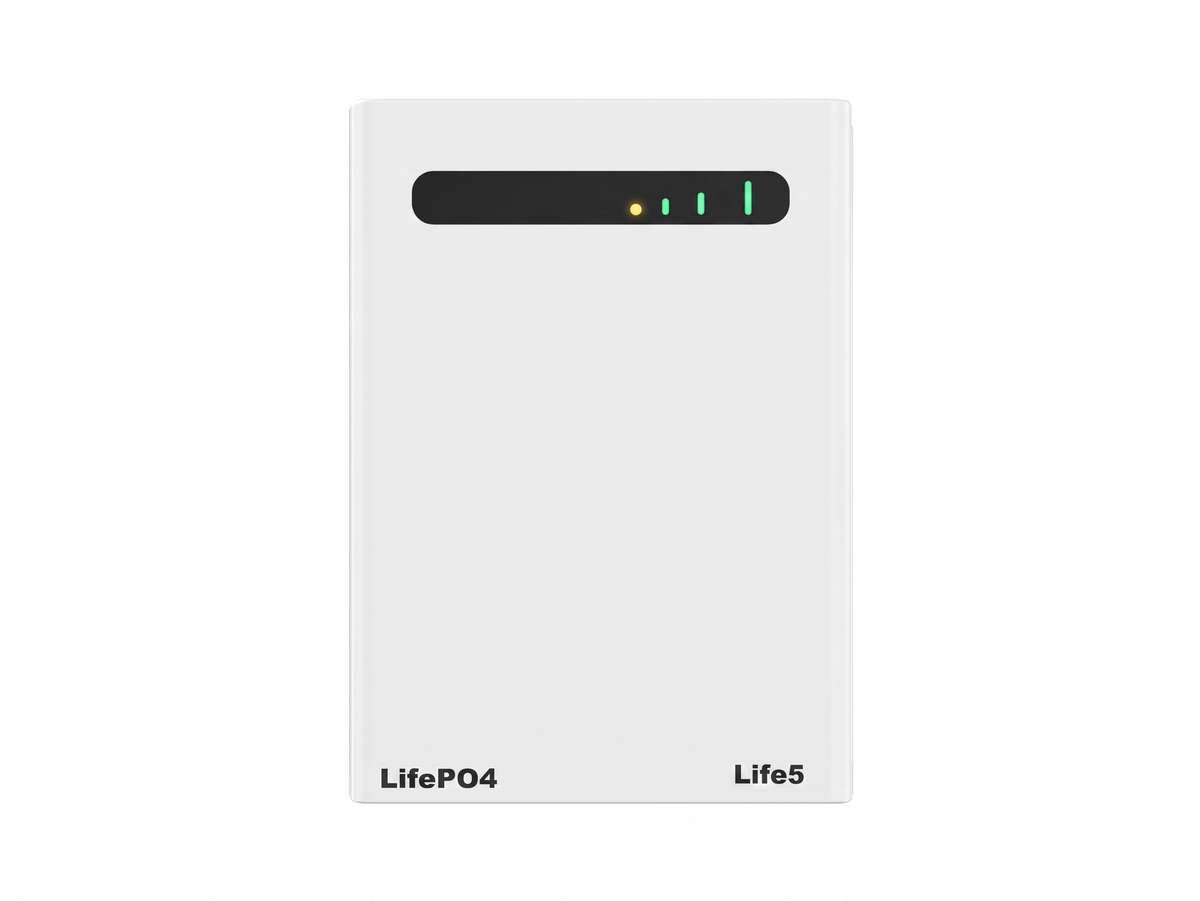

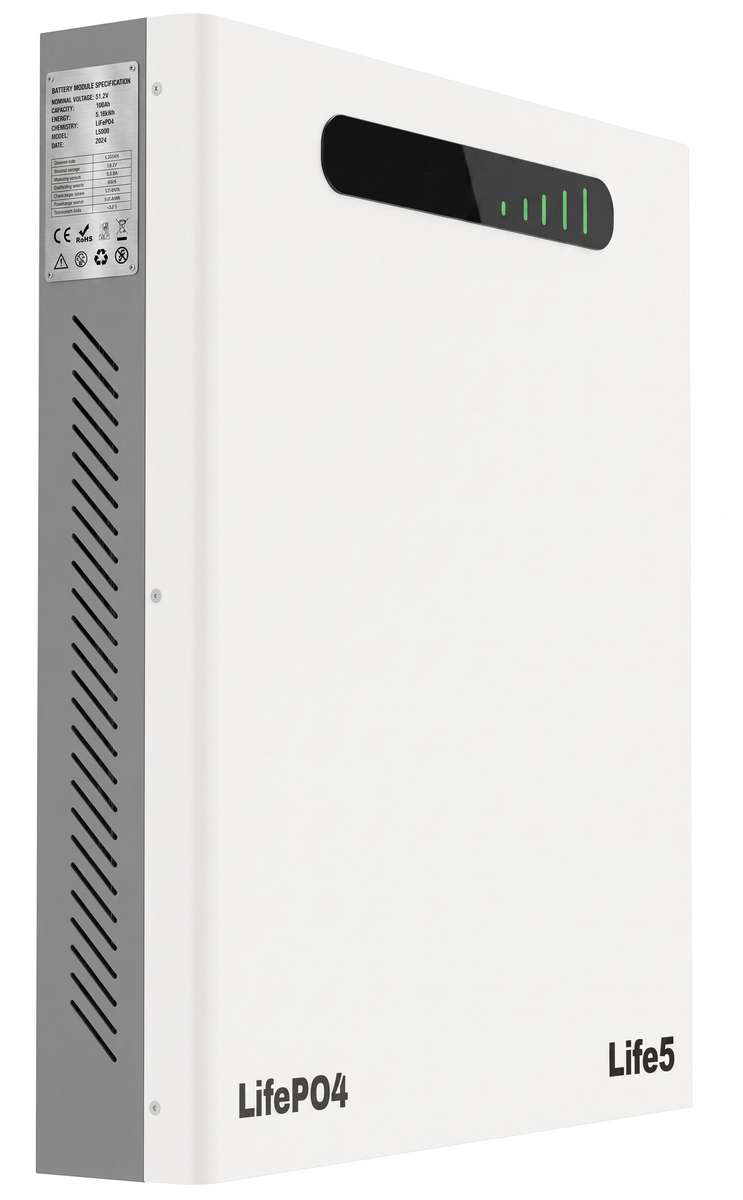

SMTE 5.12kWh 51.2V 100Ah Slim-Line LiFePO4 Battery – Wall Mount

SMTE 5.12kWh 51.2V 100Ah Slim-Line LiFePO4 Lithium Battery Wall-Mounted Solar Energy Storage (6000 Cycles)

Maximize your indoor space and secure reliable energy backup with the 5.12kWh 51.2V 100Ah Slim-Line LiFePO4 Lithium Battery. Engineered with an ultra-thin wall-mountable profile, premium Grade-A Lithium Iron Phosphate cells, and an integrated smart Battery Management System (BMS), this high-efficiency battery delivers dependable power for residential and light commercial solar setups. Featuring a long lifespan of $\ge 6000$ cycles (15+ years calendar life), safe low-voltage operation, and parallel scalability up to 15 units, it provides seamless energy security against load shedding.

Key Features & Benefits

• High-Density 5.12kWh Storage: Delivers 51.2V 100Ah continuous power to reliably run household appliances, lighting, and critical backup circuits.

• Ultra-Thin Space-Saving Design: Slim wall-mounted enclosure optimizes floor space while maintaining a sleek, modern aesthetic suitable for home and office environments.

• Long-Lasting $\ge 6000$ Cycle Life: Premium LiFePO4 chemistry ensures over 6,000 charge/discharge cycles at 80% DOD, offering a 15+ year calendar life.

• 100A Continuous Charge & Discharge: High current capability enables fast replenishment and provides robust surge power during heavy load demands.

• Scalable Parallel Expansion: Easily connect up to 15 units in parallel to scale total energy storage capacity up to 76.8kWh.

• Multi-Protocol Smart BMS: Built-in RS485, CAN, and RS232 communication interfaces ensure seamless plug-and-play synchronization with leading hybrid inverters.

• Smart Front-Panel LED Indicator: Top-mounted multi-segment LED status bar provides instant visual tracking of state-of-charge (SOC), run status, and alarms.

Technical Specifications

Battery Performance & Capacity

• Model: Life5 / L5000

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)

• Nominal Energy: 5.12kWh

• Nominal Voltage: 51.2V

• Nominal Capacity: 100Ah

• Cycle Life: $\ge 6000$ Cycles @ 80% DOD (25°C)

• Calendar Life: 15+ Years

Electrical & Operating Parameters

• Standard Charge Voltage: 58.4V

• Discharge Cut-Off Voltage: 40.0V

• Max. Continuous Charge Current: 100A

• Max. Continuous Discharge Current: 100A

• Charge Temperature Range: 0°C to +65°C

• Discharge Temperature Range: -20°C to +65°C

• Parallel Capability: Up to 15 Units in Parallel

General & Mechanical Data

• Communication Ports: RS485 / CAN / RS232

• Display Interface: Multi-Segment LED State of Charge (SOC) Bar & Status Indicator

• Mounting Style: Wall-Mounted Slim-Line Enclosure

• Safety Certifications: UL1642, IEC62619, CE, RoHS, MSDS, UN38.3
