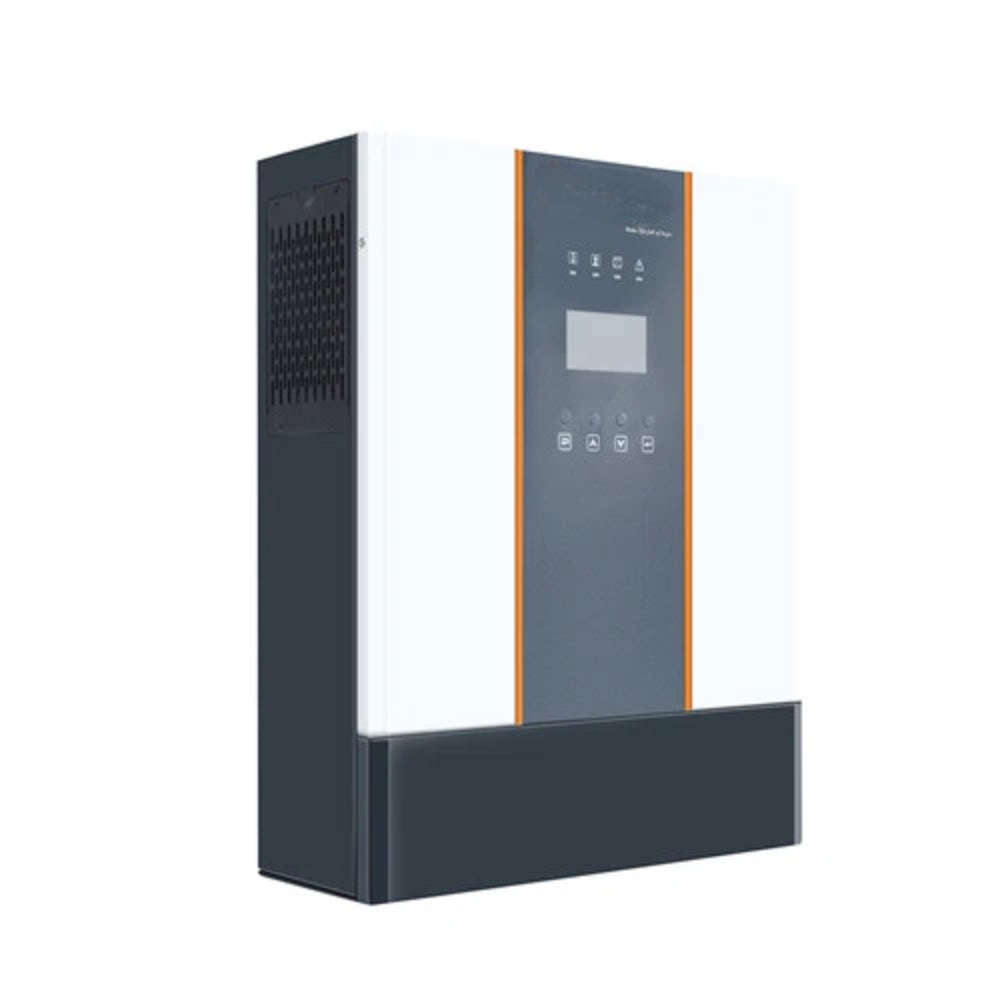

SMTE 5kW 48V Off-Grid Solar Inverter Pure Sine Wave Inverter with High-Performance AC Charger
Ensure seamless, dependable power for your home, office, or remote setup with the 5kW 48V Off-Grid Solar Inverter. Engineered for high efficiency and robust off-grid backup, this pure sine wave inverter delivers 5000W continuous AC output with clean, stable power for sensitive electronics and household appliances. Featuring an integrated high-capacity AC utility charger (up to 54VDC output) and intelligent 48V DC battery management, it provides reliable protection against load-shedding and power grid instability.
Key Features & Benefits
True 5000W Continuous Output: Provides 5000VA / 5000W rated continuous output with a clean pure sine wave to safely run sensitive appliances, IT equipment, and home essentials.
Efficient 48V Battery Interface: Operates smoothly with 48V DC battery banks at up to 119A DC input, maximizing energy conversion efficiency from storage.
Integrated High-Power AC Charger: Features an onboard 40A AC input charger supplying up to 54VDC charging power for rapid, dependable battery replenishment from the grid or generator.
Stable Single-Phase Output: Delivers standard 230VAC (21.7A) at 50/60Hz, ensuring wide compatibility with standard electrical circuits and loads.
Smart Digital Display & Control Panel: Equipped with a front-panel LCD screen, system status LED indicators, and intuitive navigation buttons for quick parameter adjustments and status monitoring.
Durable Wall-Mounted Form Factor: Designed with a sturdy enclosure and integrated side ventilation for optimal heat dissipation and long-lasting durability.
Technical Specifications
Inverter Mode (Output)
Model: IVEM5048
Inverter Topology: Pure Sine Wave Off-Grid
Rated AC Output Power: 5000VA / 5000W
Nominal Output Voltage: 230VAC
Output Frequency: 50Hz / 60Hz (Auto-sensing)
Rated Output Current: 21.7A
DC Battery Input: 48VDC, 119A
AC Charger Mode
AC Input Voltage: 230VAC (50Hz / 60Hz)
AC Input Current: 40A
DC Output Voltage: 54VDC
Compatible Battery Chemistry: Lithium-ion / LiFePO4 / Lead-Acid (48V Systems)
Mechanical & Display Data
Display Interface: LCD Screen with LED Status Indicators (AC Mode, Inverter, Fault)
Navigation: Push-Button Control Panel
Cooling: Smart Air Flow Side Ventilation
Installation Style: Wall-Mounted
