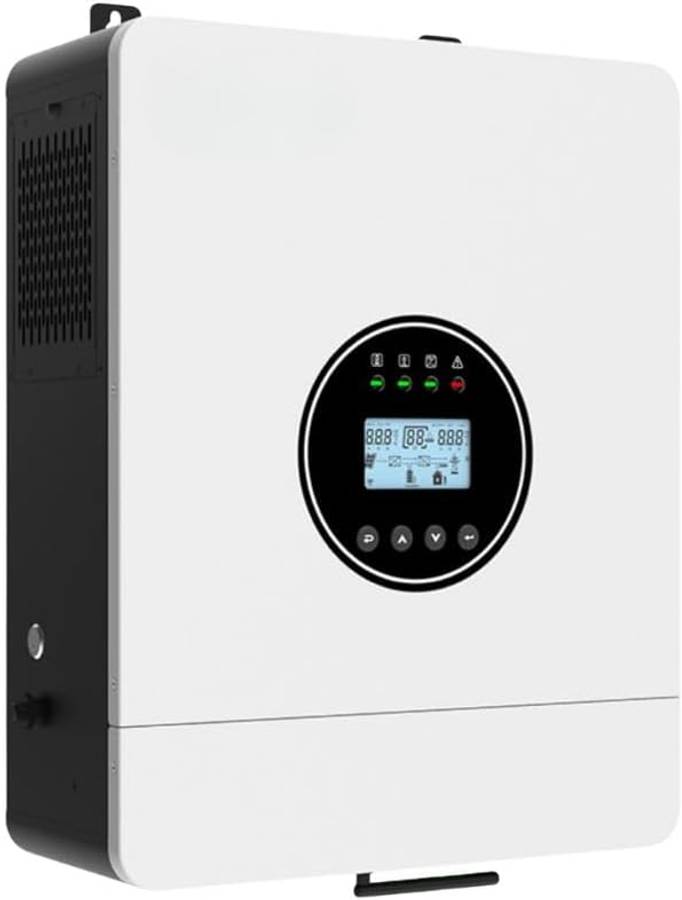

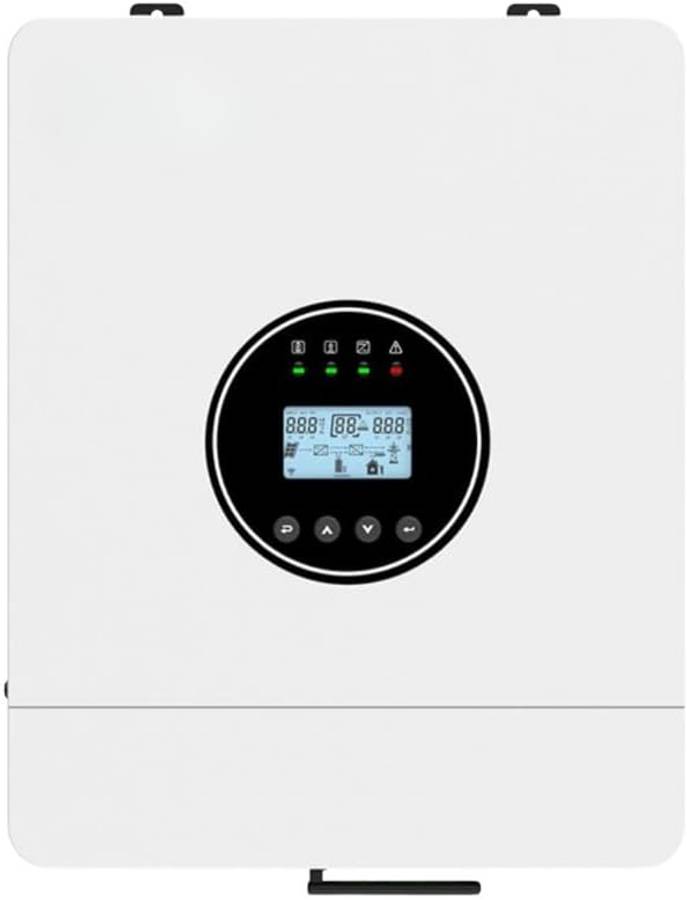

Power your home, workshop, or off-grid setup with this high-performance 6kW 48V Off-Grid Pure Sine Wave Solar Inverter. Engineered for ultimate energy reliability, this unit combines a powerful 6000W continuous output inverter, a high-voltage MPPT solar charge controller, and a smart utility/grid battery charger into a single sleek, wall-mounted unit. Designed to handle heavy household loads and motor starts, this inverter features a massive 2x Surge Rating for 5 seconds (up to 12,000W) to effortlessly start demanding appliances like air conditioners, water pumps, and power tools. With support for up to 7000W7500W of PV solar input, high 500V open-circuit voltage tolerance, and battery-less pass-through operation, it provides smooth power conversion for off-grid living, backup power systems, and energy cost optimization. Key Features True 6000W Continuous Output: Delivers clean, stable Pure Sine Wave power (230Vac ±5%) to protect sensitive electronics, home appliances, and heavy motorized machinery. High PV Solar Capacity: Supports up to 500V Max PV Input Voltage with an efficient MPPT working range of 90V450V, allowing for flexible and high-efficiency solar panel string setups. Parallel Capability Up to 12 Units: Expandable system capacity designed for easy scaling up to multi-unit single-phase or three-phase configurations. Smart Dual Charging (120A Max Solar / 100A120A Utility): Fast and intelligent battery charging management from both solar power and AC grid/generator supply. Pass-Through Without Battery: Capable of operating directly from solar energy during daylight hours, even without a connected battery bank. Comprehensive Built-In Protections: Over-load protection, output short-circuit protection, over-charge protection, and smart thermal cooling safeguards. Interactive LCD Display: Built-in circular display with LED indicators and touch control buttons for real-time monitoring of power flow, battery status, and voltage levels. Product Specifications Line Mode & Inverter Specifications Rated Output Power: 6000VA / 6000W Output Voltage Waveform: Pure Sine Wave Nominal Output Voltage: 230Vac ±5% Nominal DC Input Voltage: 48V Nominal Output Frequency: 50Hz / 60Hz (Auto-Detection / Adjustable) Surge Rating: 2 * Rated Power for 5 seconds Peak Efficiency: 93% Pass Through Without Battery: Yes Parallel Capability: Yes, Up to 12 Units Solar Charging & Grid Charging Specifications Max. PV Open Circuit Voltage: 500V PV Voltage Working Range: 90V 450V Min. Startup Voltage: 95V Max. Input Power: 7000W / 7500W Max. Solar Charging Current: 120A Max. Utility Charge Current: 100A / 120A AC Input Voltage Range: 90Vac 280Vac (230Vac Nominal, 280Vac Max) General Specifications Dimensions (MM): 420 * 335 * 142 MM Package Dimensions (MM): 512 * 417 * 216 MM Net Weight: 11.5 KG / 12.5 KG Operating Temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C Certifications: CE-EMC, IEC 62109-1/2, IEC 63027
