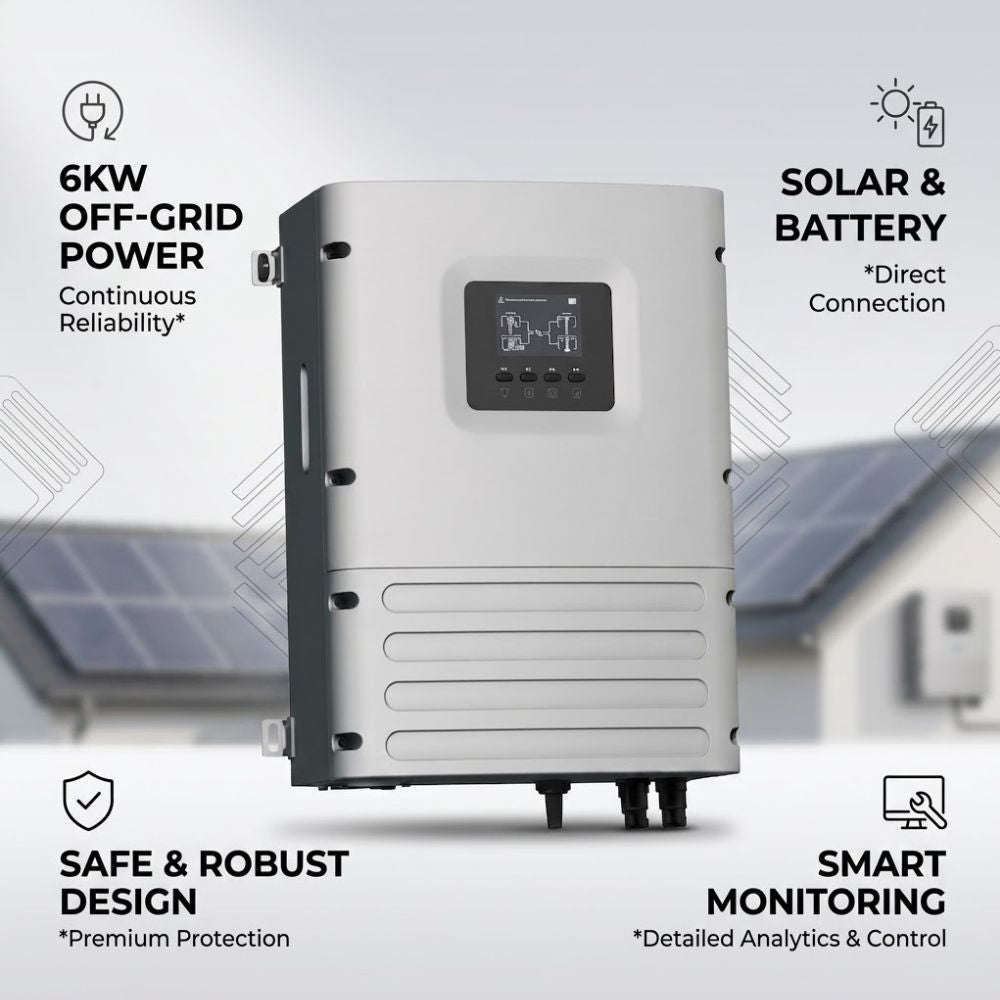

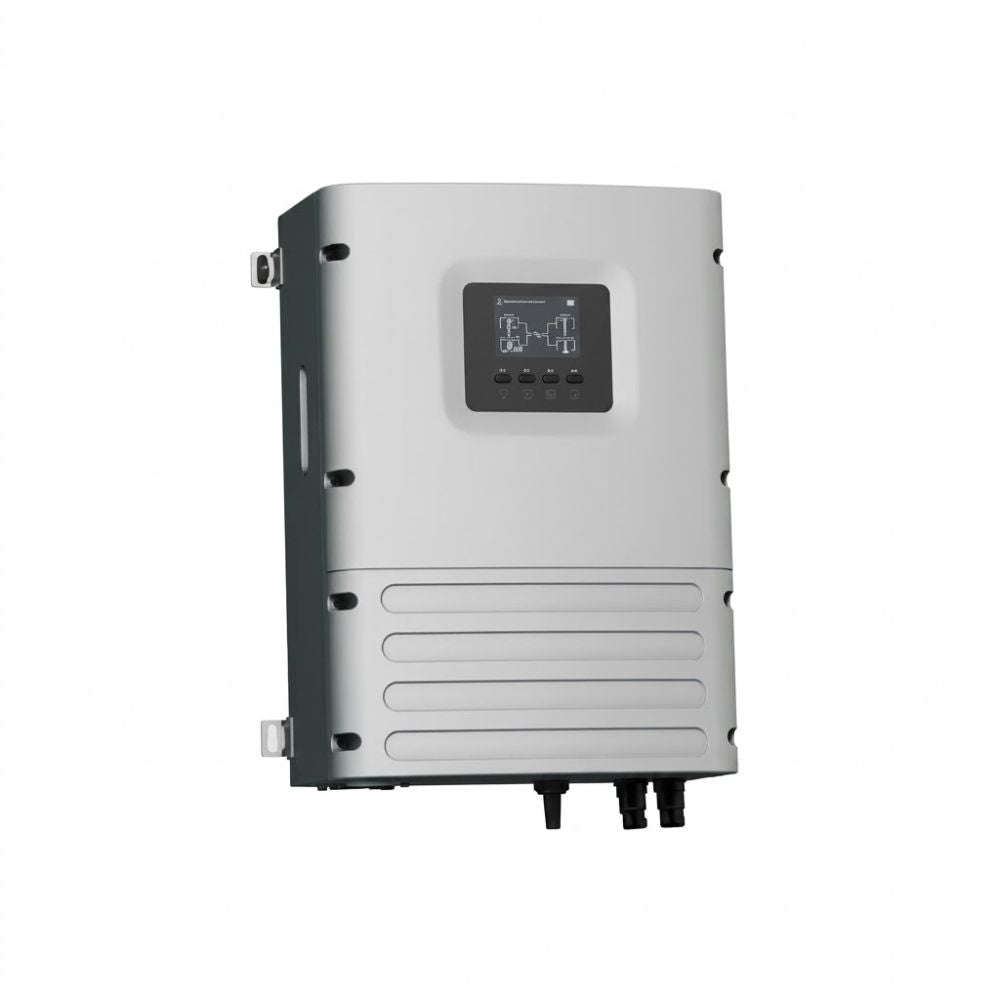

Take control of your energy independence with the 6KW Single-Phase Off-Grid Solar Inverter. Built for demanding environments and remote locations, this high-performance inverter features dual MPPT controllers, an ultra-fast 4ms transfer time, and an innovative isolated cooling duct design. Whether you are running a complete off-grid setup or safeguarding your property against grid instability, it delivers seamless, reliable power when you need it most.
Key Features & Benefits
Ultra-Fast 4ms Transfer Time: Seamlessly transitions between power sources to prevent downtime and keep sensitive electronics running smoothly.
Dual MPPT Trackers: Maximizes daily solar energy harvesting across different roof orientations and shading conditions.
Heavy-Duty Peak Output: Capable of delivering up to 2x rated power peak surge for 10 seconds to effortlessly start high-draw appliances and motors.
135A High-Current Battery Support: Compatible with high-capacity 48V battery banks for rapid charging and extended backup runtime.
Innovative Isolated Cooling Duct: Isolates the electrical components from the airflow path, drastically reducing dust ingress and extending hardware lifespan in challenging environments.
Rugged IP65 Weatherproof Enclosure: Engineered with superior water and dust resistance for dependable indoor or protected outdoor installations.
Built-in Wi-Fi & Smart Color Touchscreen: Easy-to-use LCD interface and mobile app support for real-time performance tracking and system management.
Generator Integration: Fully compatible with diesel backup generators for reliable hybrid operation during prolonged bad weather.
Technical Specifications
AC Output & Power Performance
Rated Output Power: 6000W (6kW)
Peak Surge Output: 2x Rated Power (10 Seconds)
Phase Configuration: Single-Phase
Transfer Time: 4ms (UPS-Class)
Max. Efficiency: 94.7% (Charge/Discharge Efficiency)
Solar / PV & Battery Interface
MPPT Trackers: 2 Independent MPPT Channels
Nominal Battery Voltage: 48V
Max. Battery Current: 135A
Supported Battery Types: Lithium-ion / LiFePO4 / Lead-Acid
Generator Support: Diesel / Auxiliary Generator Integration
General & Mechanical Data
Ingress Protection Rating: IP65
Cooling Method: Isolated Air Duct Intelligent Cooling
Interface / Display: Color Touchscreen LCD
Connectivity: Built-in Wi-Fi Monitoring
Warranty: 5-Year Warranty
