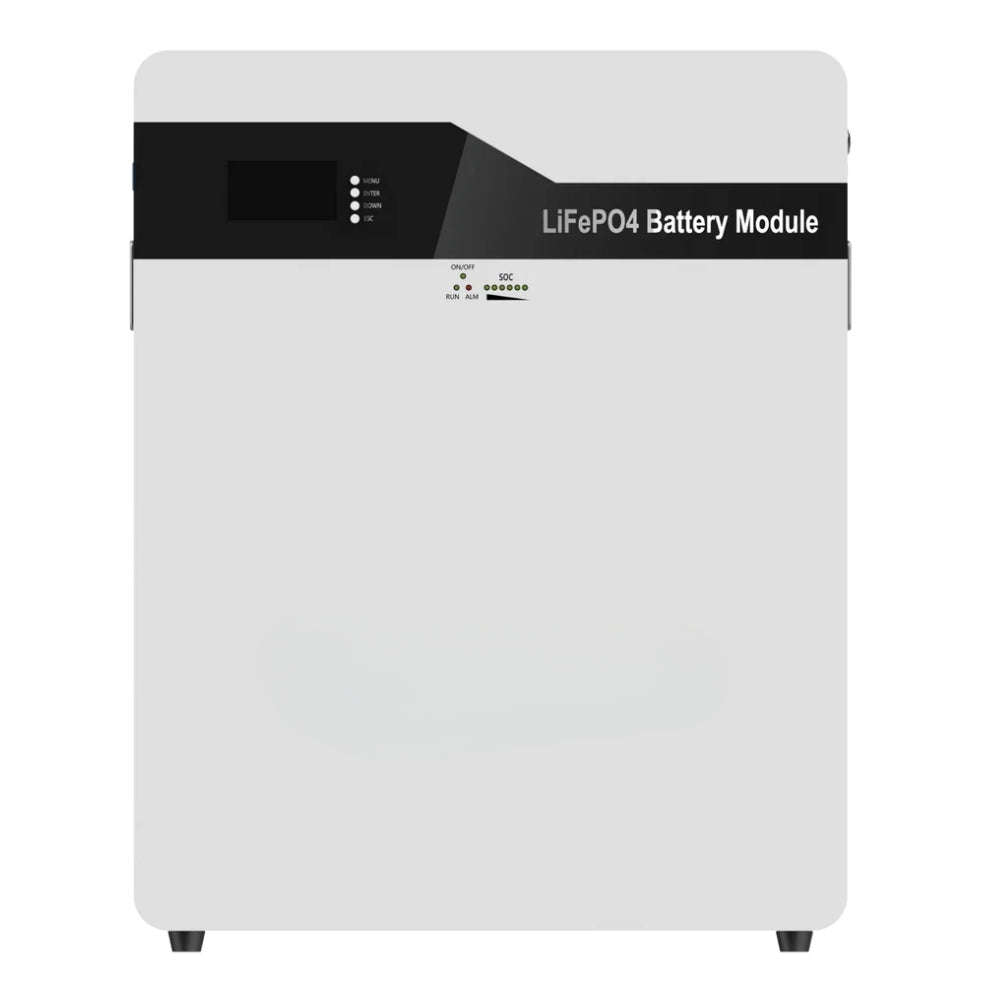

SMTE Esener 5.12kWh 51.2V 100Ah LiFePO4 Lithium Battery

SMTE Esener 5.12kWh 51.2V 100Ah LiFePO4 Lithium Battery Wall-Mount Solar Energy Storage (1C Rating, Max 15 Parallel)

Power your home, office, or light commercial setup with the Esener 5.12kWh 51.2V 100Ah LiFePO4 Lithium Battery. Engineered with premium Grade-A Lithium Iron Phosphate prismatic cells, this high-performance energy storage unit delivers a robust 1C continuous charge/discharge capability (100A) and an extended cycle life of over 6,000 cycles at 80% DoD. Featuring an advanced intelligent BMS with multi-inverter CAN/RS485 communication, full parallel scalability up to 15 packs, and a front digital LCD interface with multi-stage SOC monitoring, it provides dependable, long-term power independence against load shedding.

Key Features & Benefits

• High-Density 5.12kWh / 100Ah Storage: Supplies 51.2V nominal energy to reliably power essential household circuits, heavy appliances, and commercial backup systems.

• Full 1C High-Performance Output: Supports 100A continuous charge and 100A continuous discharge current for rapid replenishment and robust power response during heavy load surges.

• Long-Term $\ge 6000$ Cycle Life: Premium prismatic LiFePO4 cell chemistry ensures superior thermal stability, low self-discharge, and a design life of 1015 years backed by a 5-year warranty.

• Multi-Brand Inverter Compatibility: Integrated CAN Bus and RS-485 interfaces communicate seamlessly with leading inverter brands, including Deye, Sunsynk, Growatt, Luxpower, Victron, MUST, Solax, and Voltronic.

• Scalable Parallel Expansion: Easily connect up to 15 packs in parallel with full communication to expand total energy storage capacity up to 76.8kWh.

• Smart LCD Display & SOC Meter: Digital LCD control panel with navigation buttons (Menu, Enter, Down, ESC), power switch, status lights (RUN/ALM), and a 6-stage SOC capacity bar for clear operational feedback.

• Robust White Lacquer Enclosure: Built with a durable white bake lacquer steel casing, heavy-duty side lifting handles, and versatile wall-mounting or shelf-rack installation options.

• Multi-Layer BMS Protection: Electronic circuit breaker, intelligent voltage balancing, current limiting, and real-time overcharge, overdischarge, and thermal safeguards.

Technical Specifications

Battery Performance & Capacity

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / Prismatic Cells)

• Nominal Energy: 5.12 kWh

• Rated Capacity: 100 Ah

• Nominal Voltage: 51.2 V

• C-Rating: 1.0C

• Cycle Life: $\ge 6000$ Cycles @ 25°C, 0.5C, 80% DOD

• Design Life: 10 to 15 Years

• Scalability: Up to 15 Units in Parallel with Full Communications

Charging & Discharging Parameters

• Equalised Charge Voltage: 57.6 V

• Discharge Cut-Off Voltage: 45.0 V

• Max. Continuous Charging Current: 100 A

• Max. Continuous Discharging Current: 100 A

Physical, Environmental & Mechanical Data

• Dimensions (W × D × H): 470 mm × 180 mm × 580 mm

• Net Weight: Approx. 45 kg

• Enclosure Material: White Bake Lacquer Steel Case

• Installation Style: Wall-Mounted or Shelf/Rack Installation

• Handles: Heavy-Duty Side Lifting Handles

• Communication & Ports: 1 × CAN Bus, 1 × RS-485 Battery Link Port, 2 × Parallel Instruction Ports

• Display Interface: Digital LCD Screen + 6-Segment LED SOC Bar + RUN/ALM Indicators

• Operating Temperature: Charge: 0°C to 50°C | Discharge: -10°C to 50°C | Storage: -10°C to 50°C

• Certifications: CE, UN38.3, IEC, MSDS

• Warranty: 5-Year Warranty
