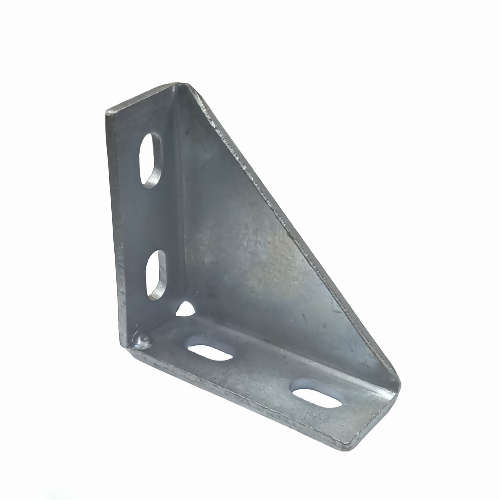

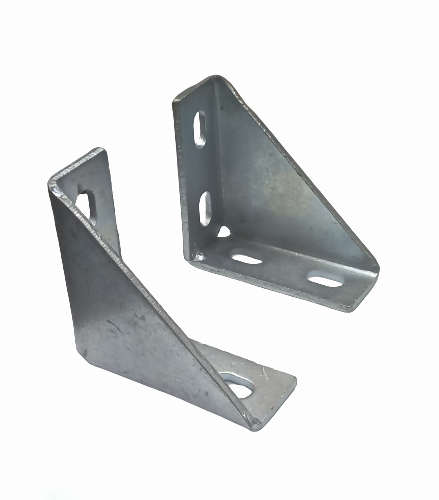

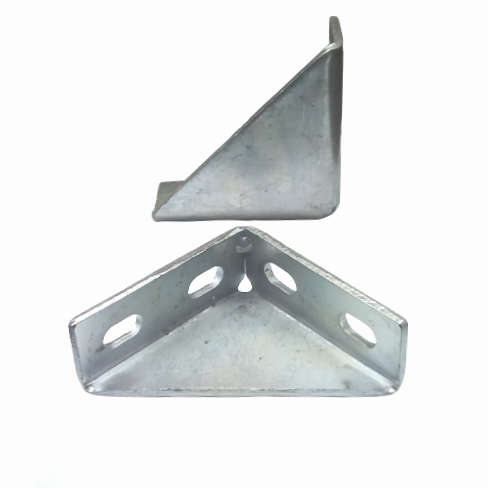

SN018D - PV Mounting Rail 90 Degree Angle Bracket .

Horizontal Bracket: Primarily utilized to reinforce horizontally mounted support rails positioned between two vertically mounted rails. This type of bracket excels in supporting heavy electrical equipment like large transformers and contactors.

Vertical Bracket: Featuring a reinforced corner web, this bracket is ideal for frame construction applications. It provides robust support and stability.

Features and Benefits:

• Compatible with support rail systems.
• Horizontal brackets bolster horizontally positioned support rails between vertical rails.
• Vertical brackets, equipped with a reinforcing corner web, are designed for frame construction projects.

Applications: DIN rail mounting brackets are essential components for DIN rail installations, significantly enhancing the functionality of terminal blocks and terminals. They ensure the secure and safe installation of DIN rails in various environments, optimizing space utilization. These brackets are commonly employed in the installation of a wide array of electrical components and devices, including but not limited to:

• Power supplies
• Circuit breakers
• Terminal blocks
• Solenoids
