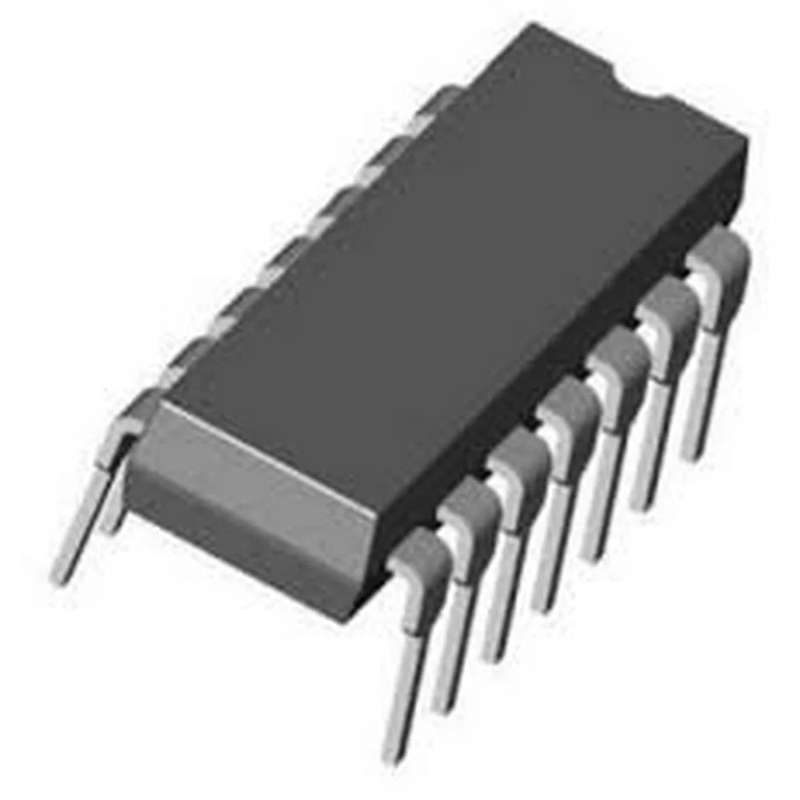

SN74F08N QUAD 2-input and gates

SN74F08N QUAD 2-input and gates

New 46 available
R29.56
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EC-278
Bob Shop ID
614718528

SN74F08N QUAD 2-INPUT AND GATES

If you are working on a digital logic level circuit, AND gates are of absolute importance. Especially when it comes to bigger circuits, it is important to have these gates to reduce the complexity and size of your circuit. Even though AND gates can be built making use of a combination of other logic gates, adding this IC to your circuit, will reduce the size and the complexity of your circuit.

Technical specifications:

Min supply voltage

4.5V

Ma supply voltage

5.5V

Min high level input voltage

2V

Max low level input voltage

0.7V

Max output current

100mA

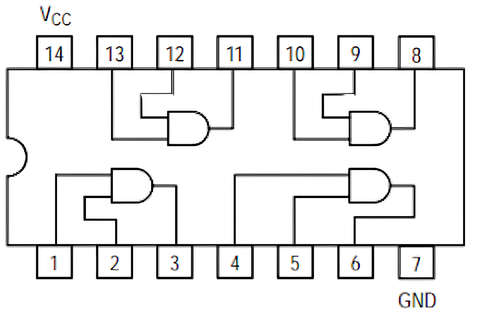

 Pin layout:



SN74LS08N pin layout

Extra resources:

Data sheet for SN74F08N
