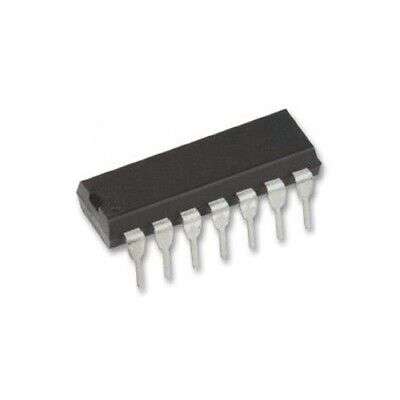

SN74HCT164N 8-bit serial-in, parallel-out shift register DIP-14

The SN74HCT164N devices contain an 8-bit serial in, a parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered. If both clocks are connected together, the shift register always is one clock pulse ahead of the storage register.

Technical specifications:

Supply voltage

2 - 6V

High level input voltage

1.5 - 4.2V

Low level input voltage

0.5 - 1.8V

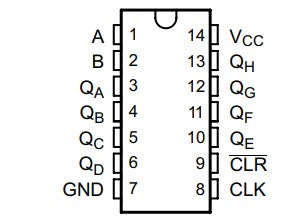

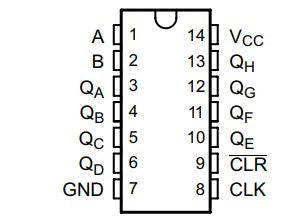

Pin layout:

SN74HCT164N pin layout

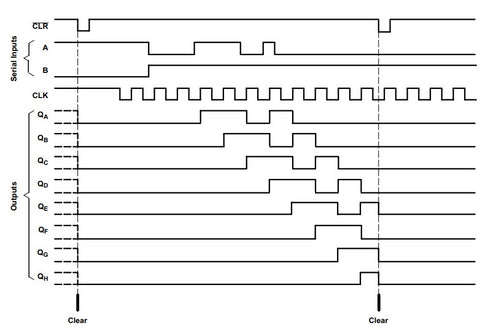

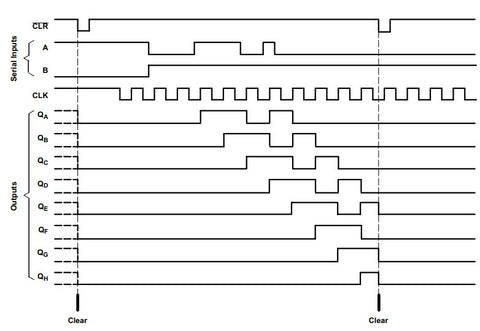

Typical time diagram:

SN74HCT164N time diagram
