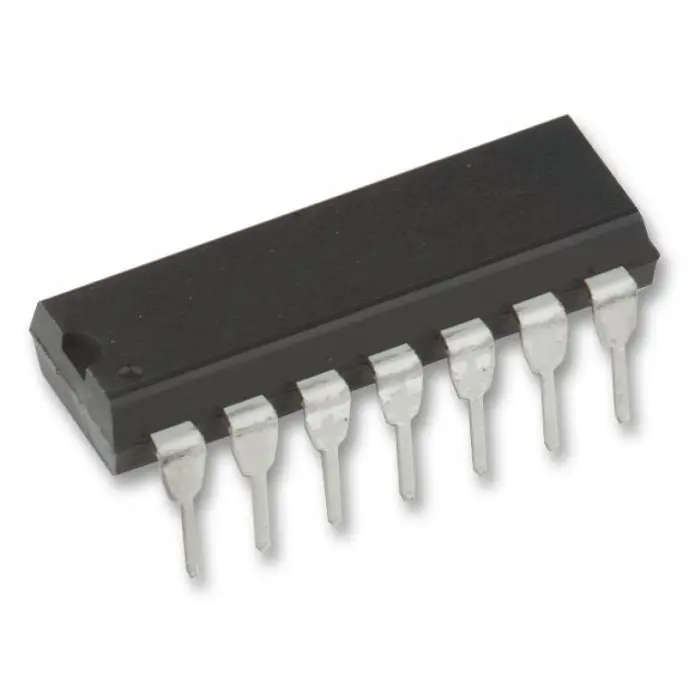

SN74LS20N DUAL, 4-INPUT NAND GATE DIP-14

Nand gates are quite a useful gate to have in your digital level project since they are made up by an AND gate and an inverter gate. Because this gate already has 2 gates connected as one, it will possibly reduce the size and the complexity of your circuit a lot and also make it easier to debug your circuit if you some across any errors.

Technical specifications:

Supply voltage

4.5V ~ 5.5V

Min high level input voltage2V
Max low level output voltage0.8V
Delay time15ns

Pin layout:

Extra resources:

Datasheet for SN74LS20
