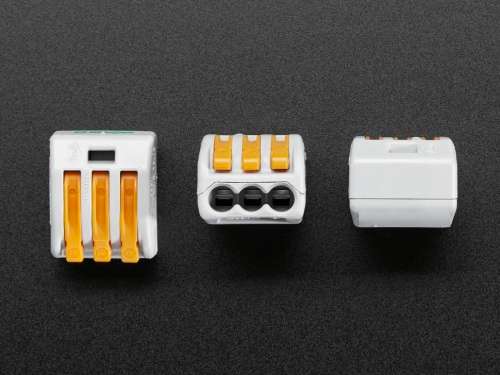

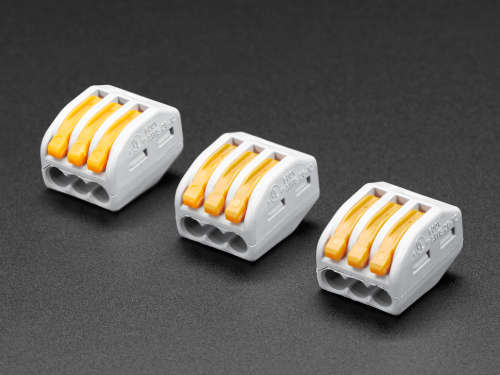

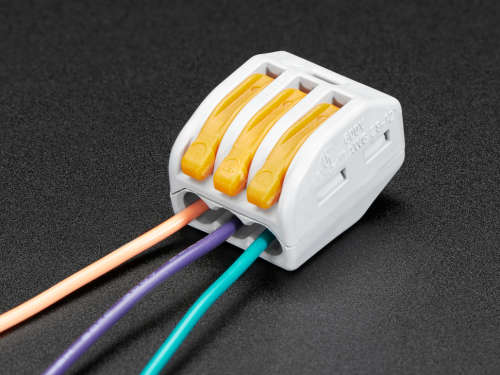

Snap-action 3-Wire Block Connector (12-28 AWG)

These are like the fancy electronics equivalent of the wire nuts electricians use to bind wires

together. They are a lot easier to use as well! Each block connector has a metal block inside

and three levers that snap open and close to bind stranded/solid-core wire. No screwdrivers

required! They're super handy for free wiring and can handle up to 20A at 300V with UL listing

so you can also use them for mains wiring. Use any wires from 12 AWG down to 28 AWG.

Specification:

• Cross section [mm²] - 0.08 - 4 mm²
• Cross section [AWG] - 28 - 12 AWG
• Measured voltage EN - 400 V
• Measured shock voltage - 4 kV
• Pollution degree - 2
• Current intensity EN - 32 A
• Weight - 4.153 g
• Color - gray
• Wiring type - Side-entry
• No. of connection Points - 3
• No. of potentials - 1
• Height - 14.5 mm

• Width - 17 mm

• Depth - 20.5 mm

• Strip length from - 9 mm
• Strip length to - 10 mm
