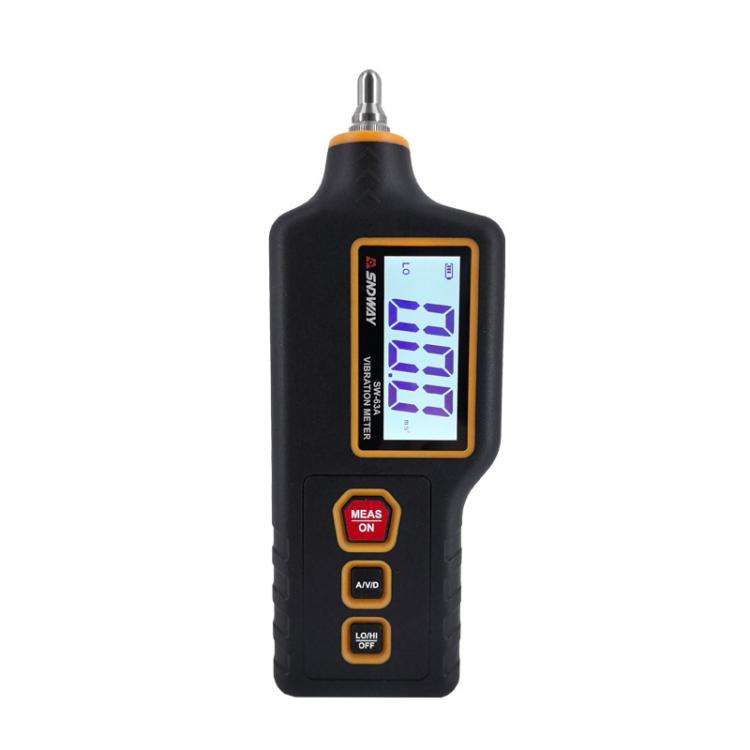

SNDWAY SW-63A Digital Vibrometer Motor Fault Detector Mechanical Vibration Measurement

1. Sensor: piezoelectric accelerometer
2. Acceleration measurement range: 0.1-199.9m/s2 (peak value)
3. Velocity measurement range: 0.1-199.9mm/s (true effective value)
4. Displacement measurement range: 0.001-1.999mm (peak-to-peak value)
5. Measurement error: +/-(5%+2dgts)
6. Low-frequency acceleration measurement frequency range: 10Hz-1KHz
7. High-frequency acceleration measurement frequency range: 1z-10z
8. Velocity measurement frequency range: 10Hz-1KHz
9. Displacement measurement frequency range: 10Hz-500Hz
10. Data refresh time: 500ms
11. Automatic shutdown time: 5 minutes
12. Working temperature: 0 - 50 degrees Celsius
13. Working humidity: 20%RH - 80%RH
14. Storage temperature: -20 - 60 degrees Celsius
15. Storage humidity: 20%RH - 80%RH
16. Battery life: about 12 hours of continuous use
17. Power supply: 2 x 1.5V AAA batteries (not included)
18. Altitude: less than 2000m

Features:

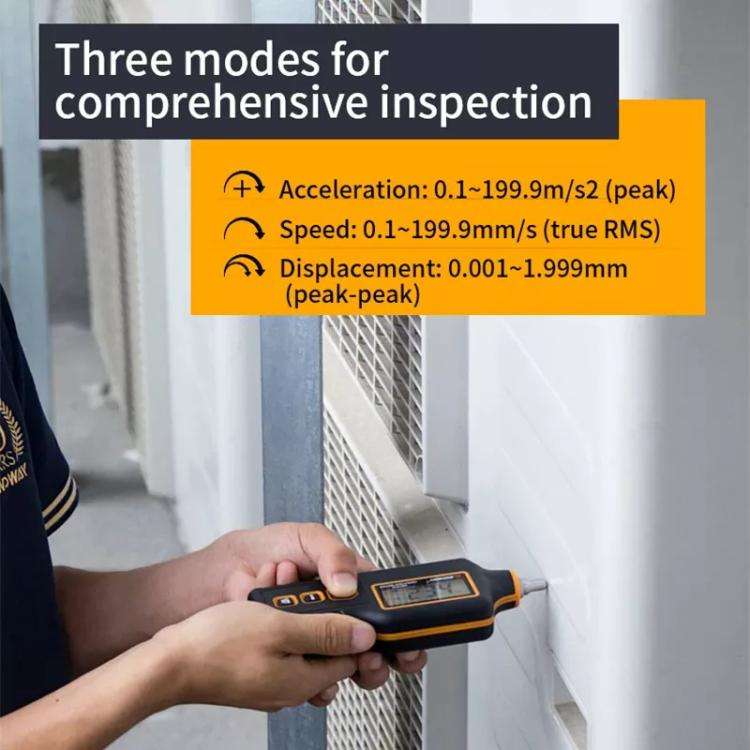

1. Three modes, comprehensive detection

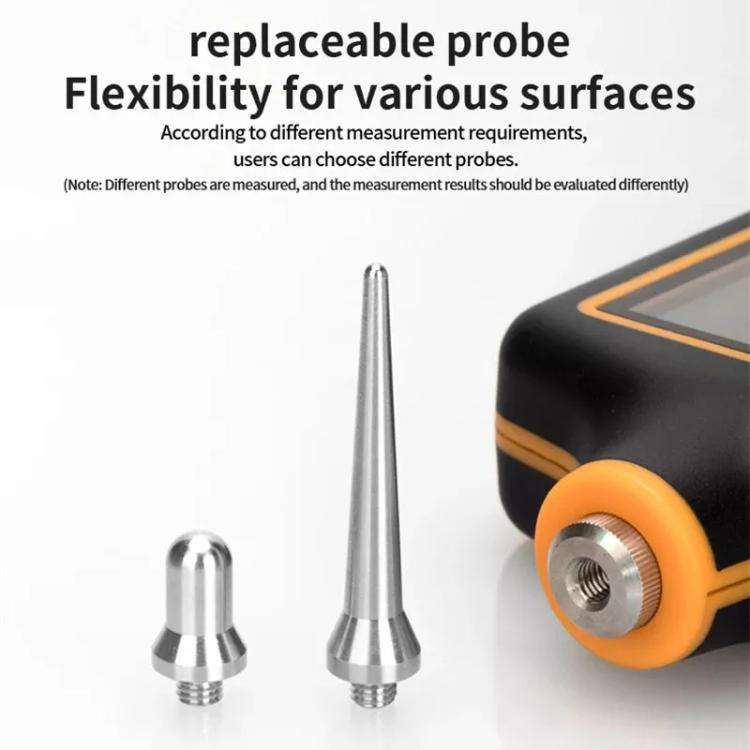

2. Replaceable probes, flexible to various surfaces

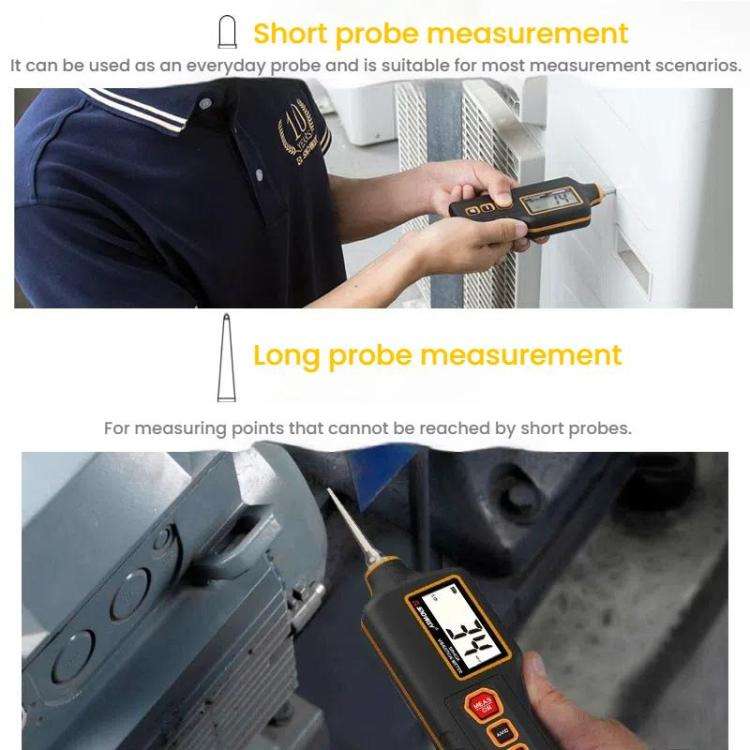

3. Short probe measurement: can be used as a daily probe, suitable for most measurement scenarios
4. Long probe measurement: used to measure measurement points that short probes cannot reach

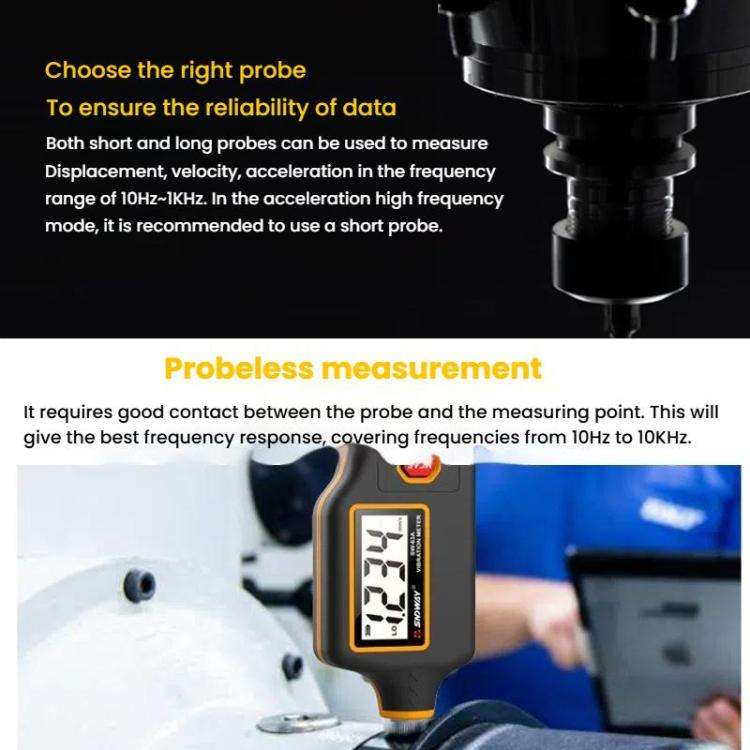

5. Probeless measurement: requires a good contact surface between the probe and the measurement point, so that the best frequency response effect can be obtained, and the frequency can cover 10Hz-10KHz

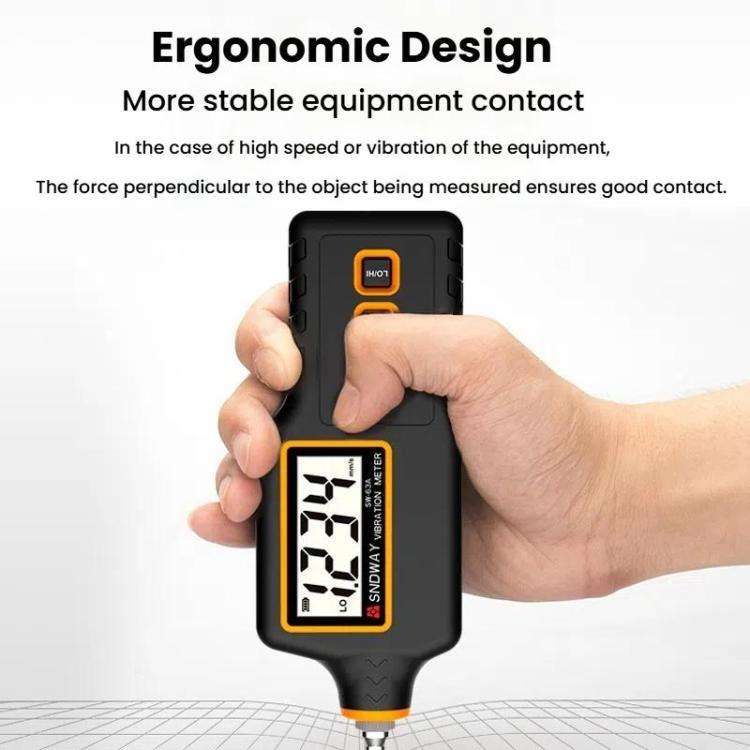

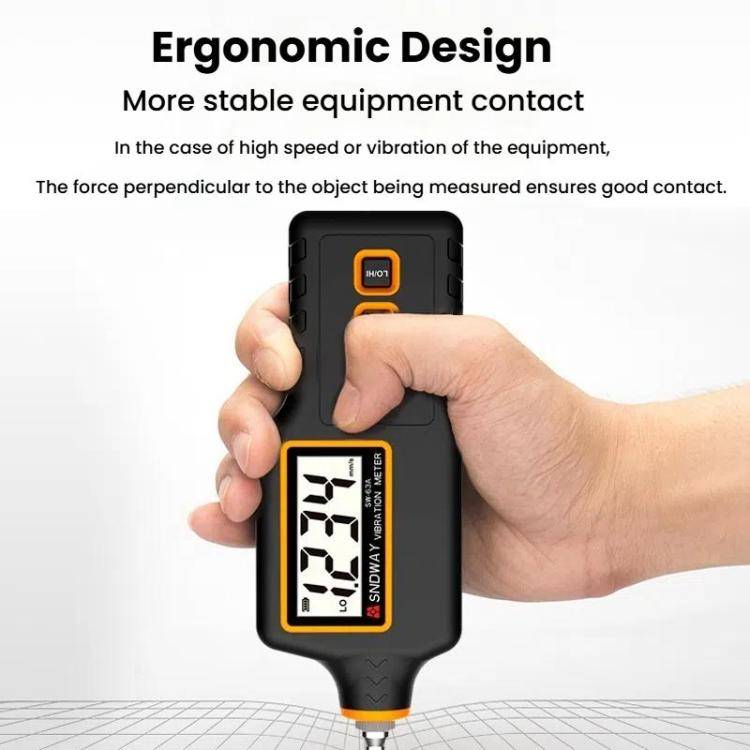

6. Ergonomic design, more stable equipment contact

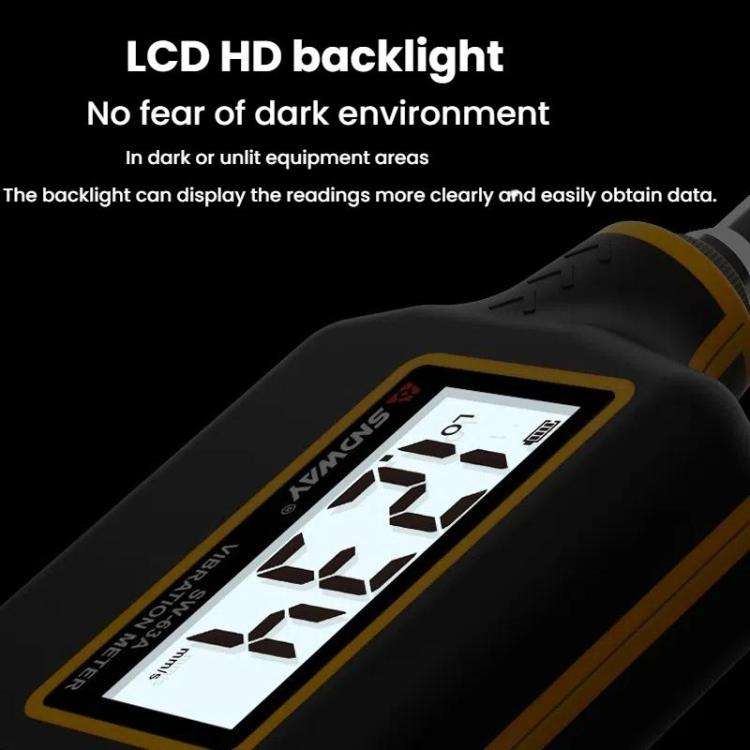

7. LCD high-definition backlight, in the dark or without light source equipment parts, the backlight can display the reading more clearly, and easily obtain data

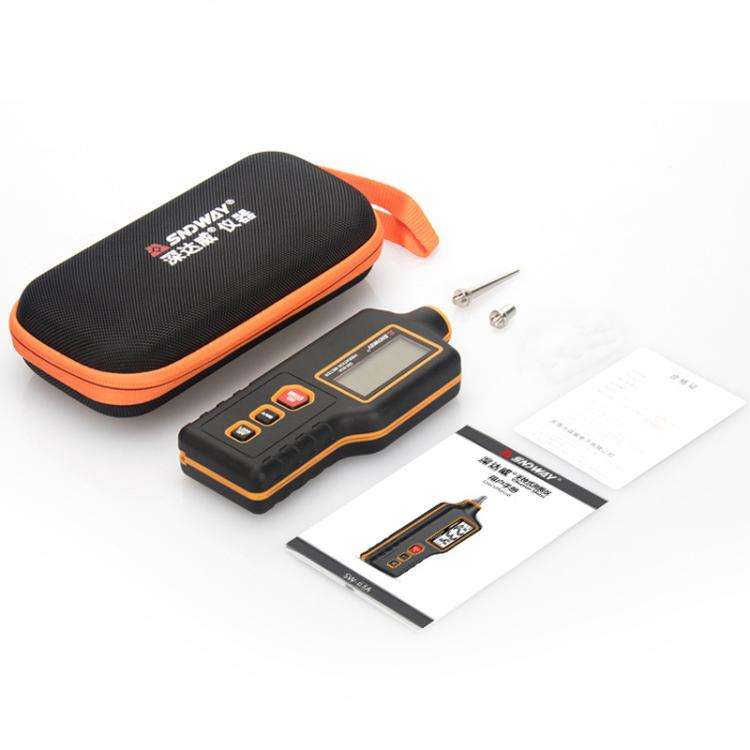

Packing list:
- Vibration meter x 1
- Instruction manual x 1
- Long probe x 1
- Short probe x 1
- Carrying case x 1

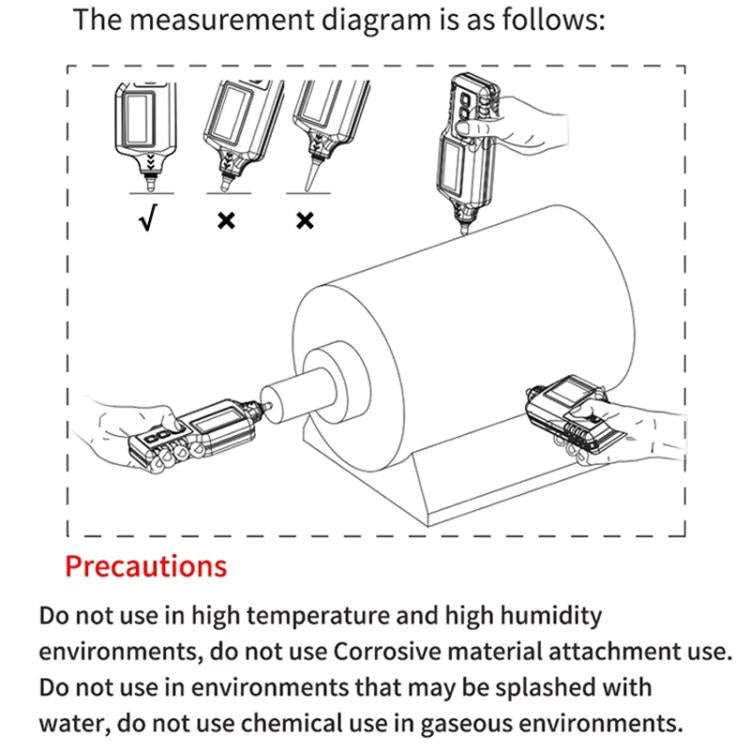

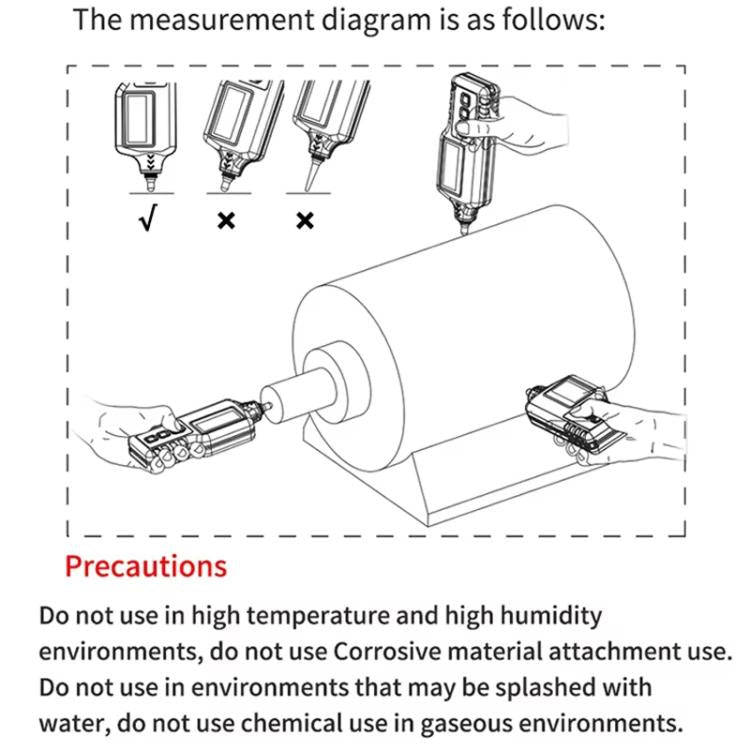

Notes:
- Do not use in high temperature and high humidity environments
- Do not use near corrosive substances
- Do not use in environments where water may splash
- Do not use in environments with chemical gases
